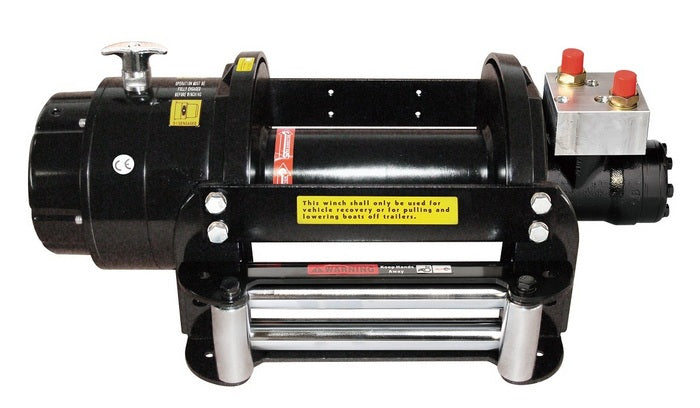

COMEUP WINCH | BADGER  15 HYDRAULIC WINCH
COMEUP WINCH | BADGER  15 HYDRAULIC WINCH

COMEUP WINCH | BADGER 15 HYDRAULIC WINCH

Regular price $1,415.95
/

Part Number 681501



Line Pull and Rope Capacity:

Layer of Wire Rope
Pull by Layer
lb/ kg
Total Rope on the Drum ft / m Line Speed
at 60 l/min (15.9 g/min)
fpm / mpm
1st 15,000 / 6,800 23.3 / 7.1 30.0 / 9.0
2nd 12,273 / 5,567 51.5 / 15.7 35.8 / 10.9
3rd 10,390 / 4,713 85.0 / 25.9 42.0 / 12.8
4th 9,008 / 4,086 123.4 / 37.6 48.6 / 14.8
5th 7,950 / 3,606 165.0 / 50.3 55.0 / 16.8





Specifications:

  • Line Speed (at 1st layer of rope) 30 fpm at 15.9 g/min (9 mpm at 60 l/min)
  • Operation Pressure 2175 psi / bar
  • Max Oil Flow 15.9 g/min (60 l/min)
  • Hydraulic Motor 7.6 cu in (125 cc)
  • Gear Ratio 2-stage planetary gear 19.4:1
  • Winch Construction Aluminum die cast housings with steel drum
  • Clutch (Freespooling) Rotating ring gear
  • Brake Spring applied drag brake together with supplied over-center valve
  • Rotation of Winch Wire rope shall be under-wound orientation only
  • Drum Barrel Diameter 4.0 inches (102 mm)
  • Drum Flange Diameter 9.9 inches (252 mm)
  • Distance Between Flanges 10 inches (255 mm)
  • Mounting Bolt Pattern 12.0" x 4.5" (303.5 x 114.3 mm) ; 14.5" x 6.7" (368.5 x 171.2 mm)
  • Wire Rope Recomended 1/2" x 165' (12.7 mm x 50.3 m)
  • Winch Weight 158.7 lbs (72 kg)
  • Gross Weight 194 lbs (88 kg)
  • Box Dimensions 28.1" x 16.3" x 12.2" (715 x 415 x 311 mm)
