HERETIC STUDIO | BA-2 Flush Mount LED Pod Light
Beam Pattern
SELECT OPTIONS
Beam Pattern
Beam Pattern
Overview
Shipping Time: 3-4 Weeks

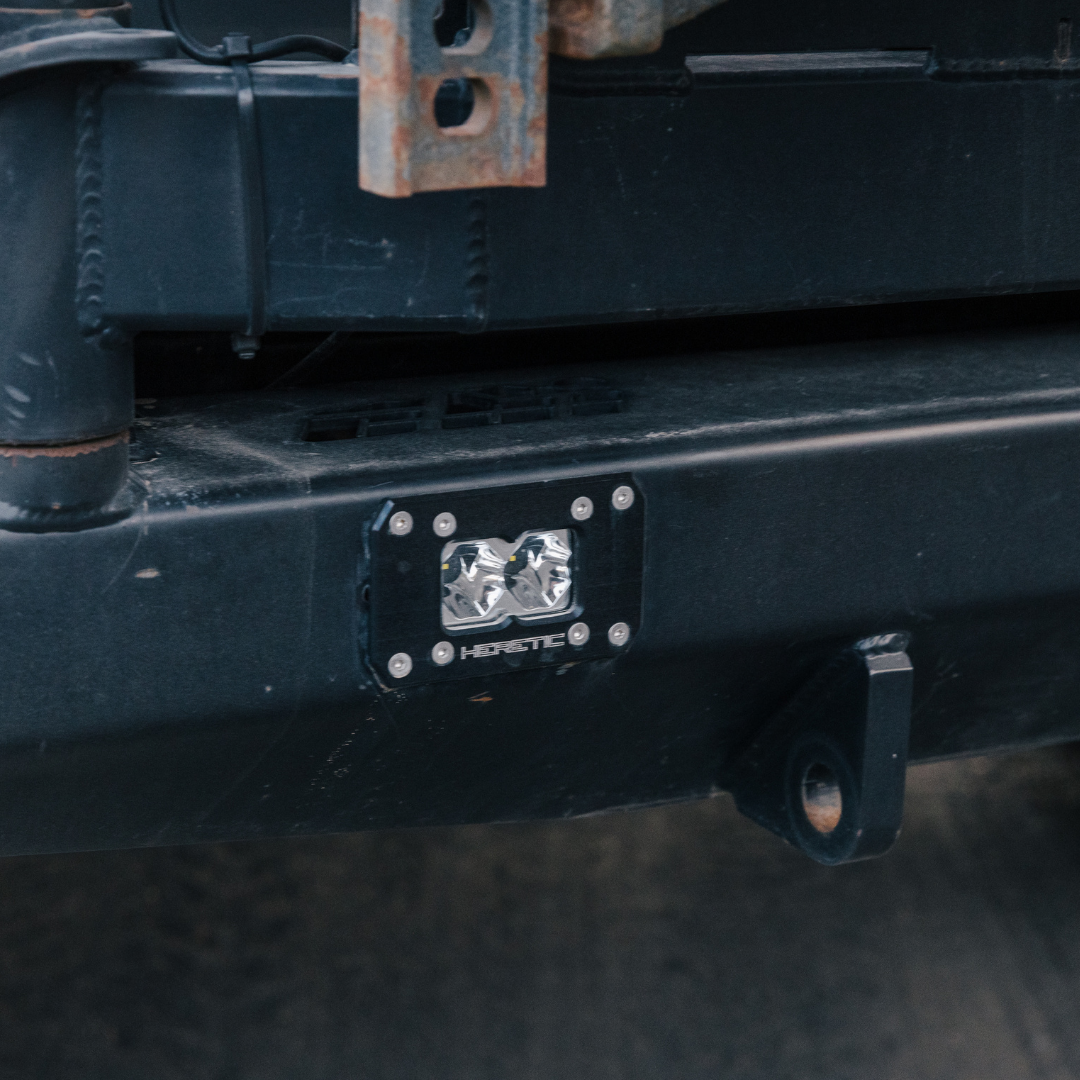

The Heretic BA-2 Flush Mount LED Light Pod is our staple flush bezel mount light pod used for various applications from an optimal chase light to a ditch light, A-pillar light and beyond. These high performance clear LED pod lights are housed in CNC machined aircraft-grade aluminum, and outfitted with best-in-class circuit boards that allow temperature control and long-lasting light. The BA-2 Flush Mount LED Light Pod is recommended on the front or rear bumpers of trucks, jeeps, SUVs, and UTVS. They can also be used on the sides and rear of roof racks as a chase light. These light pods are best for clear night conditions.
Features
- (1) BA-2 Flush Mount LED Light Pod
- USA Patented 6061 CNC Aluminum Grade Billet Housing
- (2) 6-watt CREE LED
- Designed, Assembled, Supported, and Shipped in Centerville,Utah
- Customize Your Beam Pattern: Spot or Flood
- Custom Bezel Offerings - Contact Heretic Studio
Vehicle Application
Ditch lights, A pillar for UTVs (similar to a ditch light, just called an A-Pillar light) roof rack scene lights, bumper lights. Often used with an amber lens for chase lights on both UTV and Trucks.
Parts Sold Separate
- Wiring Harness
- Aftermarket Mount for Roof Rack Attachment
- Amber Lens Attachment
Details/Specs
Shipping Weight: 3lbsType: 2” LED Light Bar
Housing: CNC Aircraft-Grade Aluminum
Location:
Light Color: White
Lens Color: Clear
Wattage: 12W
Amp Draw at 13.8V: .8A
Voltage: 9V-36V
IP Rating: IP68
DIM (Light Only): L 3” x D 1.5” x H 2”
DIM (Light W/ Bracket): L 3” x D 2.1” x H “2.4
Lumens: 3000 lm
Lux At 10m:
- Spot: 413 lx
- Flood: 88 lx
- Spot: 41250 cd
- Flood: 8775 cd
- Spot: 406 m
- Flood: 187 m
Prop 65: No
SAE/ECE: No
