ARB 4X4 | Twin Motor Onboard 12V Air Compressor (CKMTA12)

Description

ARBs new CKMTA12 and CKMTA24 twin on-board compressor kits were designed to fill the market need for a compact sized yet high-volume compressed air source to suit the high volume airflow needs of most air powered tools, and also to suit the actuation and control needs of the ARB Air Locker , and the harsh and demanding environment of the ARB Air Locker user.

• IP55 O-Ring Sealed
• Sintered Bronze Filter
• Universal Mounting

ARB Maximum Output On-Board Air Compressor

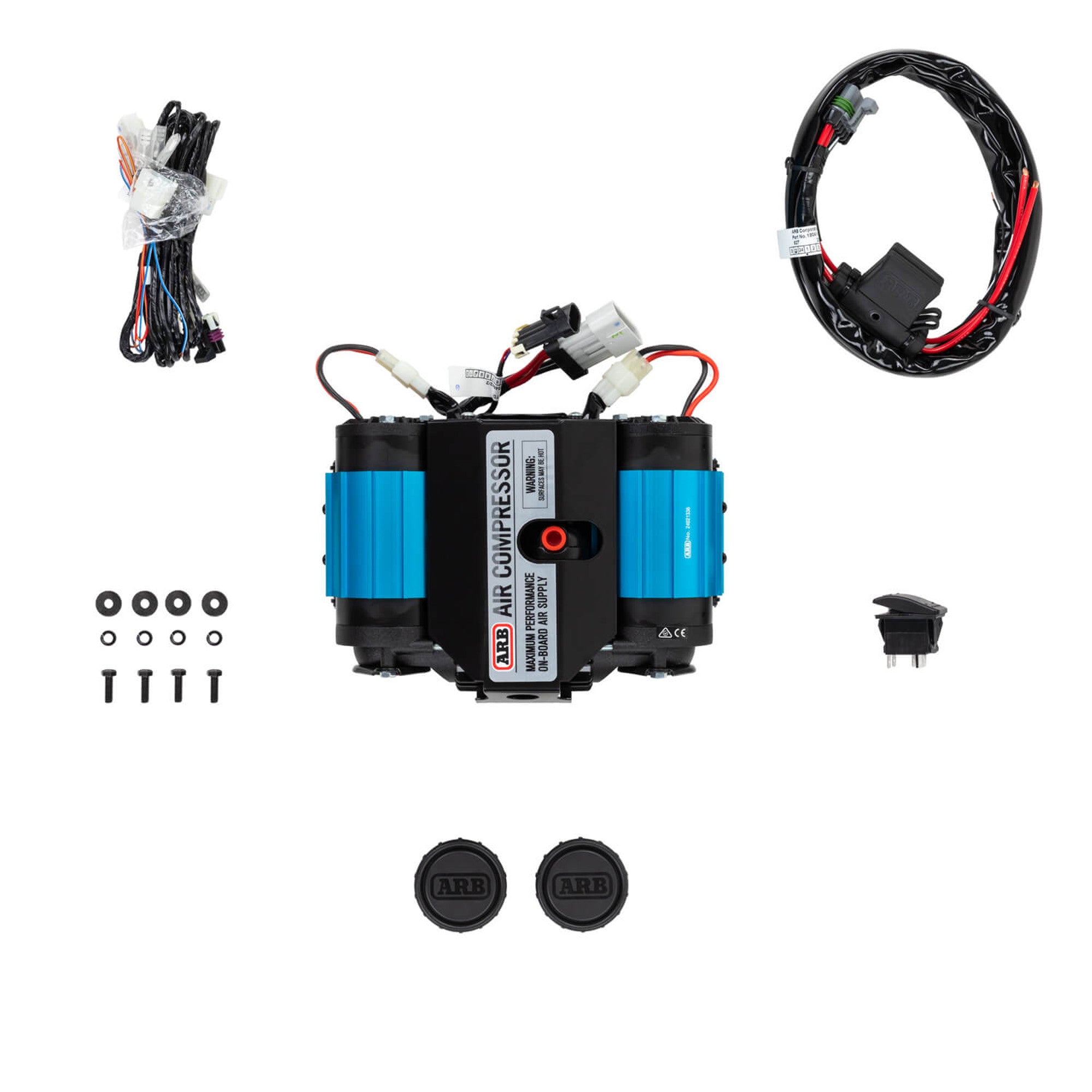

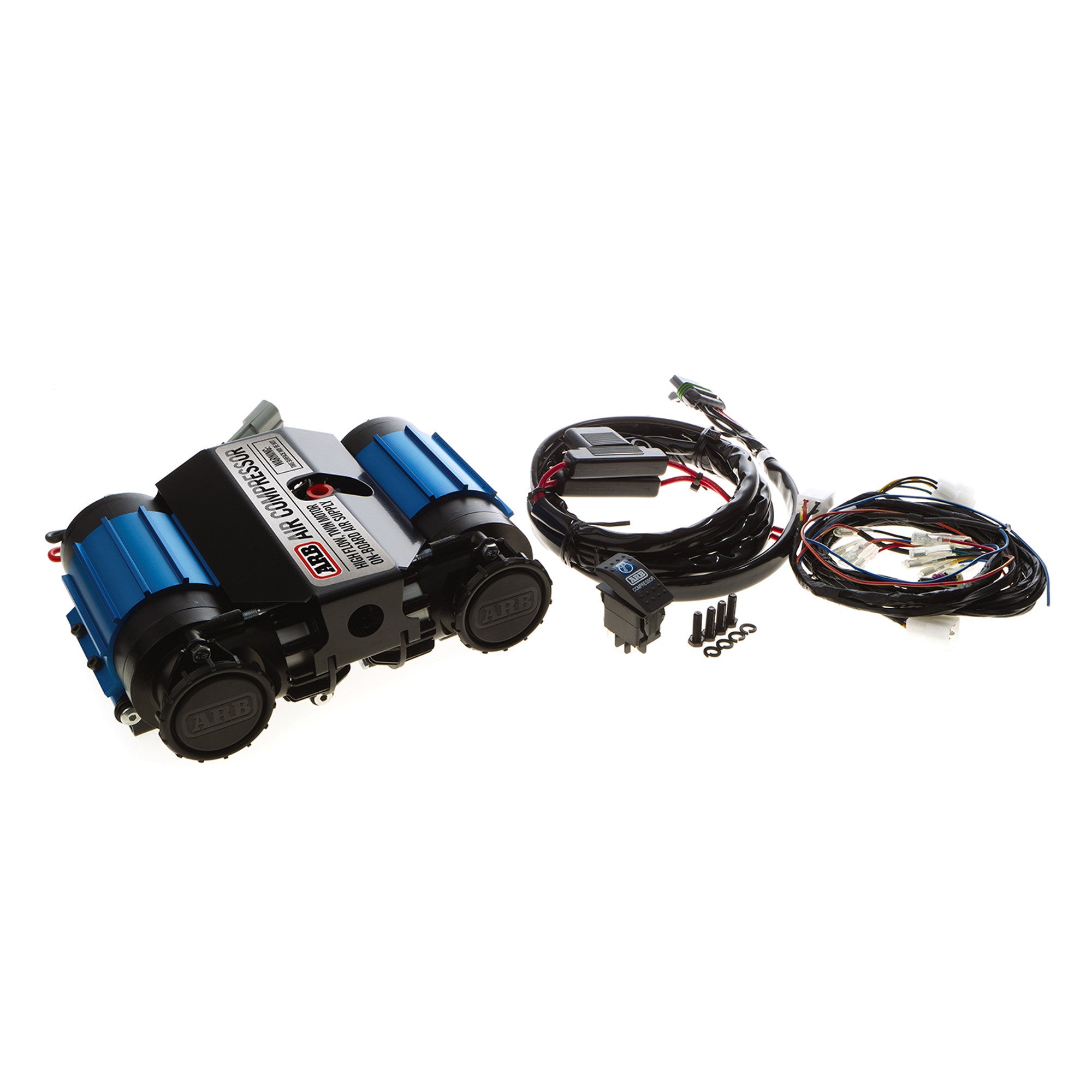

Providing optimum power, the ARB twin motor design delivers class-leading air flow for fast inflation purposes. Constructed of lightweight, high-strength engineering grade materials, it incorporates quality components for quiet operation and extended durability. The twin motors incorporate internal thermal protection against extreme temperature damage while a heavy duty in-line maxi fuse for each motor provides professional circuit protection. Available as either a portable kit with a 4L air tank, inflation accessories and a durable carry case or a vehicle mounted kit with associated wiring loom and mounting hardware.

Features

• Designed for inflating Tires and Air Locker activation when used in conjunction with optional accessories
• On-board model available in either a 12V or 24V configuration
• Suitable for many air tools when used in conjunction with a 4L air tank (optional with on-board models)
• 100% duty cycle
• Sealed for moisture and dust resistance
• Hard anodized cylinder bores for reduced friction
• Teflon impregnated carbon fiber piston seals for maximum trouble free life
• Anodized mounting bracket dissipates heat
• Integrated pressure switch, relays and IP55 (waterproof/dustproof) brushless fan cools electronics, motors and cylinder heads
• Over-pressure safety valve equipped

Specifications

• Prop 65: No
• Volts: 12V
• Width: 7.5 inch
• Height: 4 inch
• Length: 10.8 inch
• Weight: 17.4 lb
• Max Psi: 150
• Max Amps: 68.6
• IP Rating: IP55
• Duty Cycle: 100% 60/0
• Air Flow 0PSI: 6.16CFM
• Air Flow 29PSI: 4.68CFM
• Warranty: 3 YR

(CKMTA12
