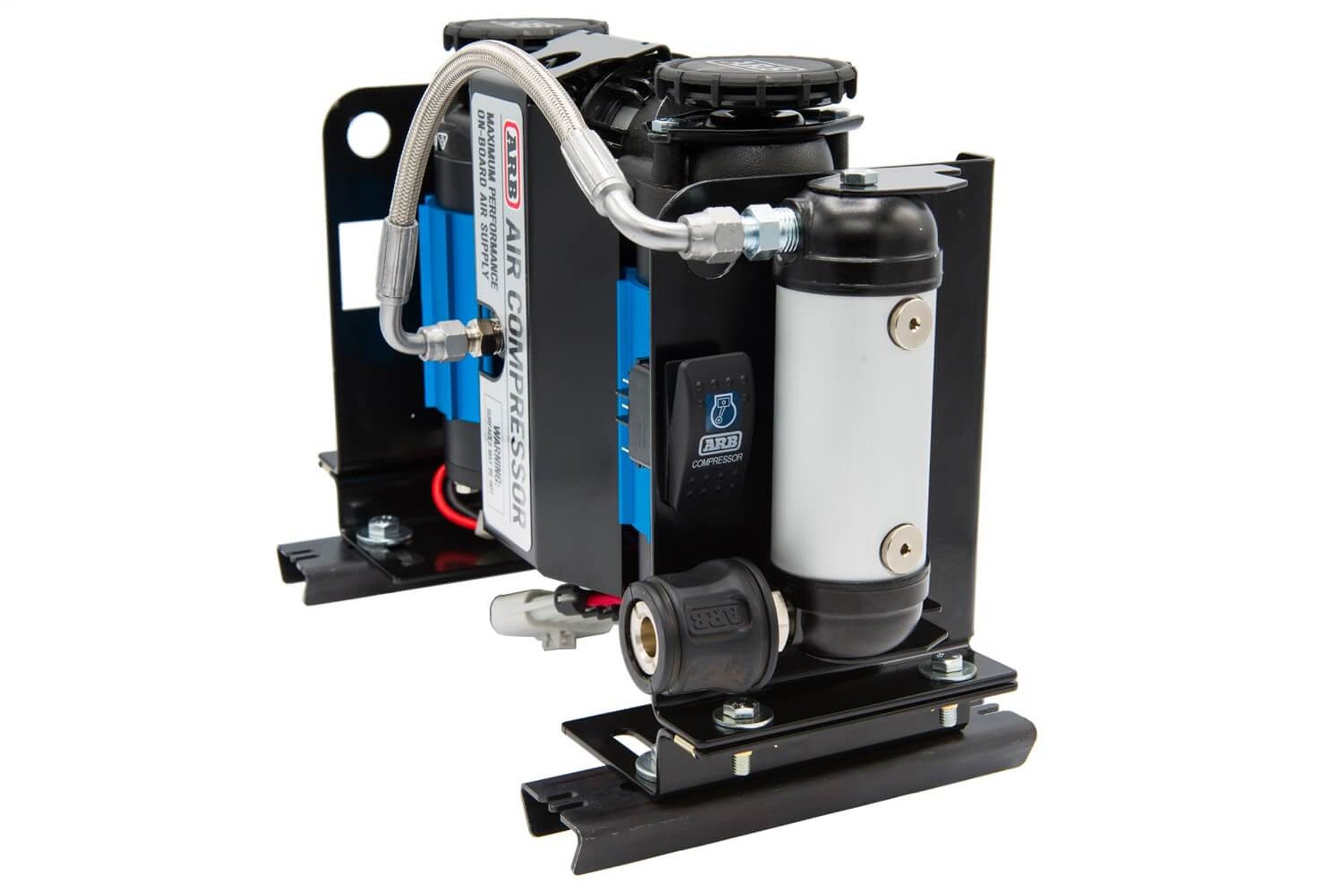

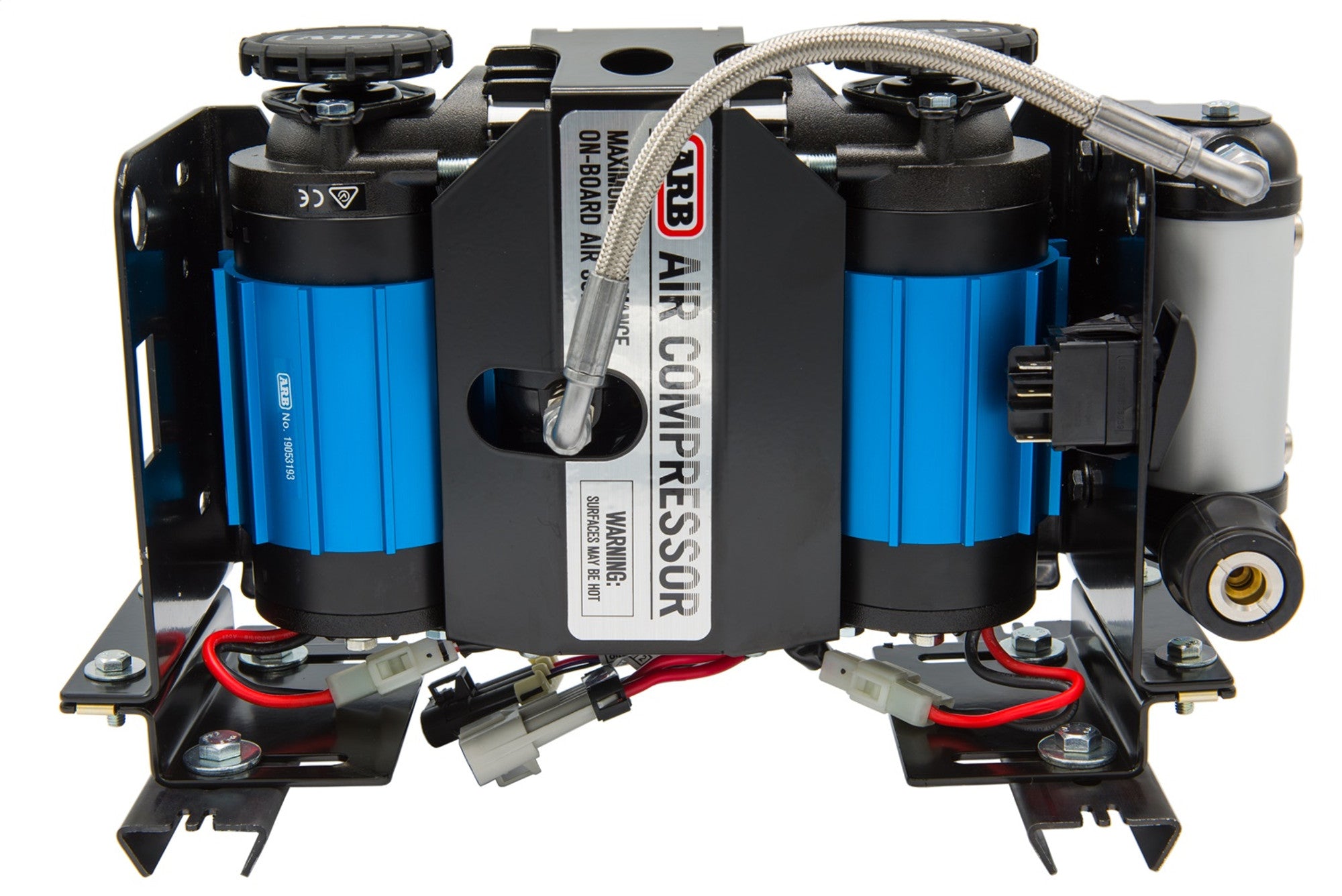

ARB 4X4 | Twin Motor Onboard 12V Air Compressor Kit (CKMTA12KIT)
SELECT OPTIONS
Description
Few 4x4 accessories offer as many advantages to off-roaders as readily available on-board air. Considered by 4x4 owners around the world to be a staple accessory for off road travel, an ARB 4x4 Air Compressor provides an immediate source of compressed air anywhere a 12 or 24 volt power source is available. Tires perform best when they are set at a pressure that is appropriate for the terrain. While highway use calls for a relatively high pressure rate, lowering your air pressure will dramatically improve your 4x4s traction in a range of off road environments. Compressed air allows you the freedom to adjust the tire inflation level of your truck to suit the conditions. An equally beneficial feature of on-board air is the ability to re-inflate tires that have been repaired - it is not unusual to get several punctures in one day when traveling in extreme off-road conditions. In this environment, the value of owning an air compressor is priceless. When coupled with good quality tire repair equipment, an ARB air compressor provides the off road traveler with independence and peace of mind. ARB 4x4 Air Compressors are individually leak tested, current draw tested and flow tested under load at the factory before packaging and come with a comprehensive 2 year warranty. And ARBs after-sales service is second to none with many of the compressor components readily available and easily sourced. Along with ARB Air Compressors, ARB also offers a range of tire accessories including tire deflators, tire inflators and tire repair kit. A perfect pairing with ARB Air Compressors.
- IP55 O-Ring Sealed
- Sintered Bronze Filtered
- Universal Mounting
Features
- Designed for inflating Tires and Air Locker activation when used in conjunction with optional accessories
- On-board model available in either a 12V or 24V configuration
- Includes Wiring Loom, ,Isolating Switch, Splash Resistant Air Filters, Mounting Bolts/Washers, and Brackets
- Suitable for many air tools when used in conjunction with a 4L air tank (optional with on-board models)
- 100% duty cycle
- Sealed for moisture and dust resistance
- Hard anodized cylinder bores for reduced friction
- Teflon impregnated carbon fiber piston seals for maximum trouble free life
- Anodized mounting bracket dissipates heat
- Integrated pressure switch, relays and IP55 (waterproof/dustproof) brushless fan cools electronics, motors and cylinder heads
- Over-pressure safety valve equipped

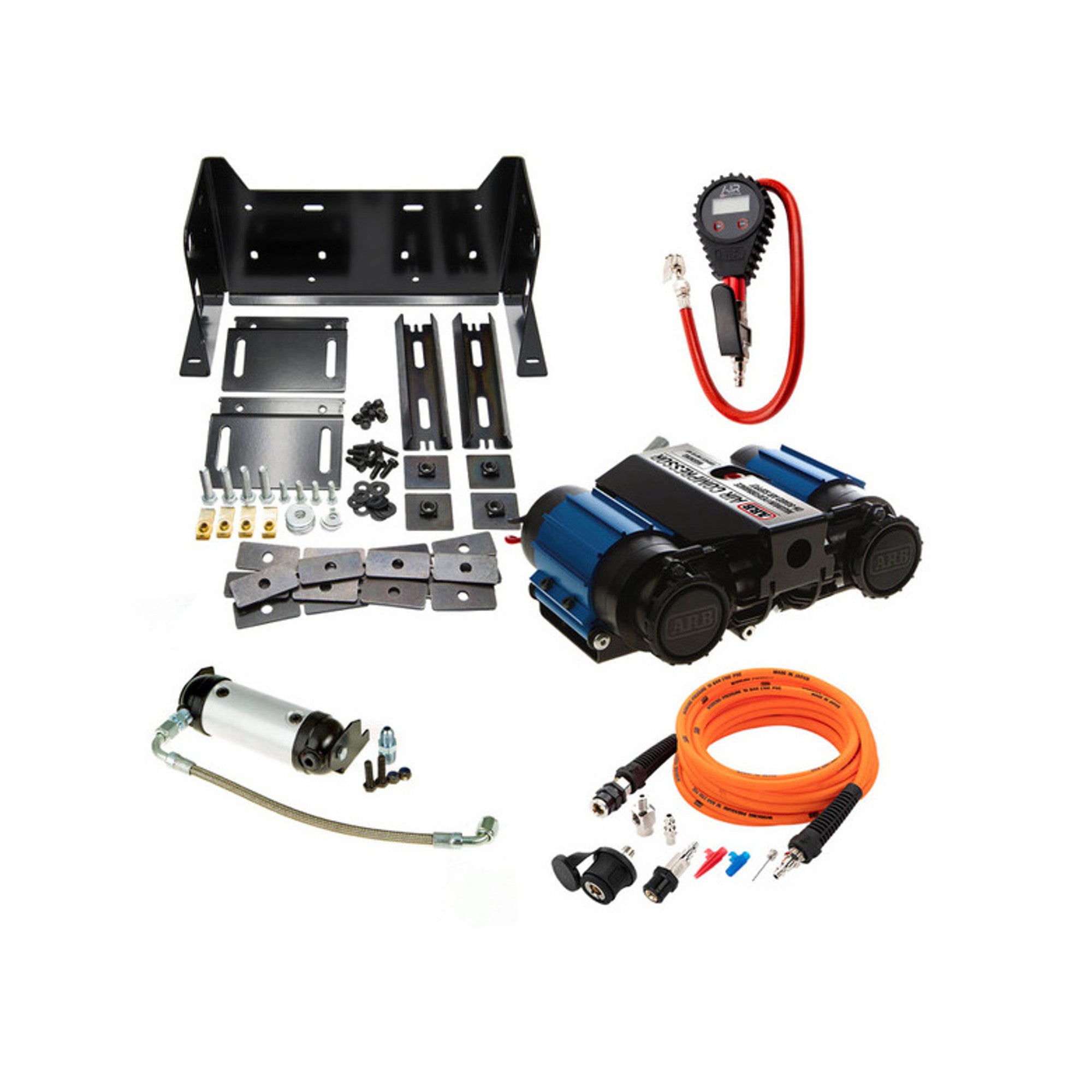

Kit Components
- 171503 Compressor Manifold Kit, 1
- CKMTA12 Twin 12V Onboard Air Compressor, 1
- 3501010 Universal Compressor Bracket, 1
- ARB601 Digital Tire Inflator, 1
- 171302V2 Pump Up Kit, 1
Specifications
- Prop 65: No
- Warranty: 3 YR
ARB MAXIMUM OUTPUT ON-BOARD AIR COMPRESSOR
Providing optimum power, the ARB twin motor design delivers class-leading air flow for fast inflation purposes. Constructed of lightweight, high-strength engineering grade materials, it incorporates quality components for quiet operation and extended durability. The twin motors incorporate internal thermal protection against extreme temperature damage while a heavy duty in-line maxi fuse for each motor provides professional circuit protection. Available as either a portable kit with a 4L air tank, inflation accessories and a durable carry case or a vehicle mounted kit with associated wiring loom and mounting hardware.
(CKMTA12KIT)
