ARB 4x4 | LED Fog Light Kit - Small (3500890)

Regular price $127.00


ARB’s new LED fog lights are now available in both small and large configurations to suit all ARB bumpers.

ARB LED fog lights are built with off-roading in mind. They come housed in glass-filled nylon shells with virtually indestructible polycarbonate lens and ingress protection rating IP67.

The large configuration weights 0.5lbs per light and 0.4lbs per light for the small configuration. They provide up to 240Lms of light and comply with a plethora of safety ratings (see page 2). Light alignment is controlled by a fine thread screw adjuster to aim your fog lights correctly and legally on your ARB bumper.

The LED fog lights are connected by waterproof Deutsch connectors (DT04-2P) with additional plugs included to easily retrofit to existing wiring looms. The ARB wiring loom PN# 3500520 is also available for the optimal configuration.

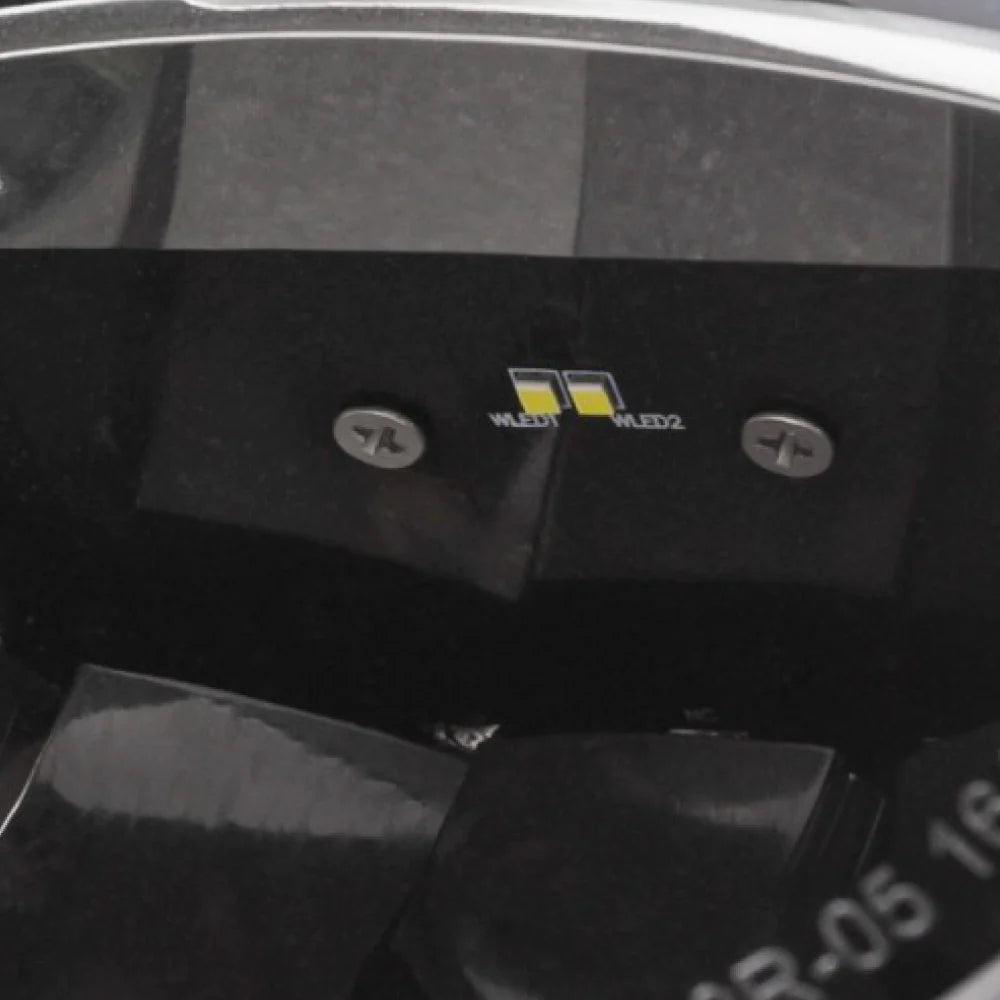

Quality Edison 2016XD LED drivers keep power consumption minimal. They draw 4.7 watts at 12 volts with a color temp of 6000k (Rating is 10v – 16v). The LEDs are bound to a black PCB board to provide a tinted look to the outside fog-light appearance.

The lifespan per light is approximately 50,000 hours. This equates to 6250 days at 8 hours driving per day or 17.5 years of total driving time.

Hard-coated polycarbonate lens.
Glass-filled nylon housing for superior strength.
Fine-thread screw adjuster for fog light aiming.
SAE & ECE R19 certified fog light pattern.

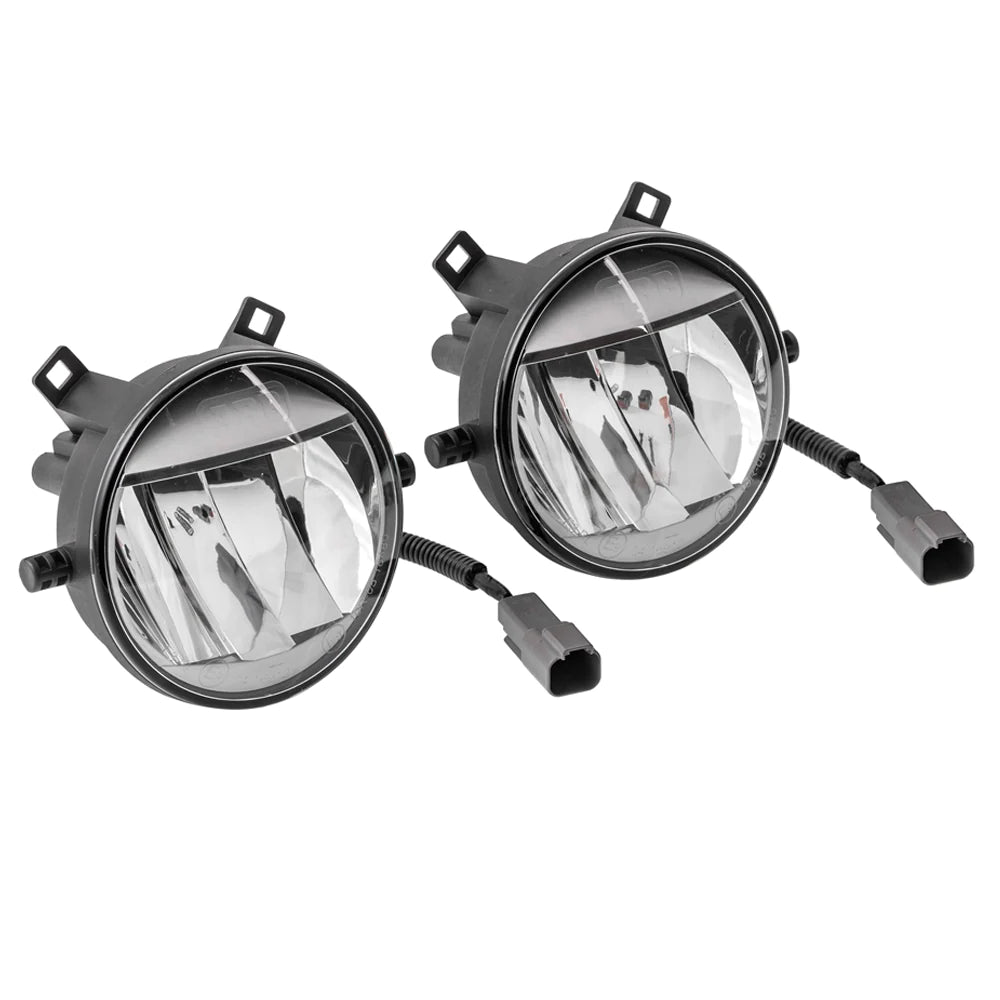

Kit includes two LED fog lights.
Designed specifically for ARB bumpers.


  • Edison LED 2016XD 2pcs per fog light.
  • Input voltage 12v (working voltage: 10~16v).
  • Actual lumens: 240 lumen (3562cd) per light.
  • LED lifespan: 50,000 hours per light.
  • Connector type: DT04-2P.
  • Certification ECE R19/R10, ROHS, SAE DOT compliant.
  • Water and dust ingress protection rating IP67. - Fog light current draw 4.7w per light.
  • Operating temp -4°F ~+185°F.
  • Weight: 0.3lbs.
  • Color temp: 6000k.
  • Housing material glass-filled nylon housing and polycarbonate lens.
  • UPC: 9332018063021.
  • Country of Origin: Australia.
  • Suitable for:
    • Toyota 4Runner 4th Gen (2003-2009).
    • Toyota Tacoma 2nd Gen (2005-2015).
    • Toyota FJ Cruiser (2007-2009).
    • Toyota FJ Cruiser (2010-2016).
