ARB 4X4 | Gusseted Awning Bracket 50 mm Wide (813402)
Regular price $22.85Description

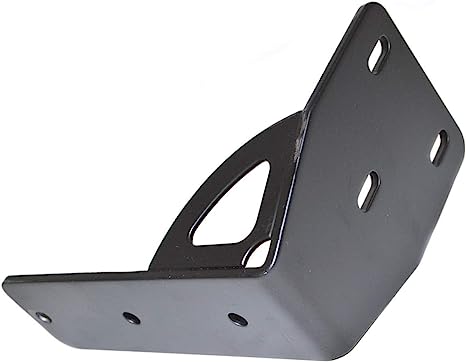

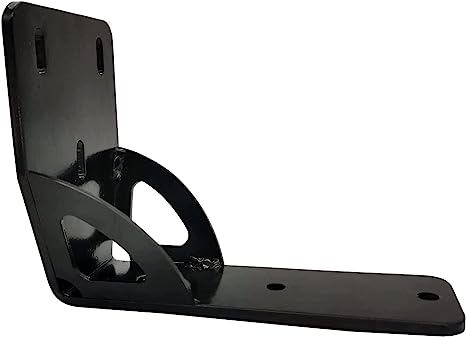

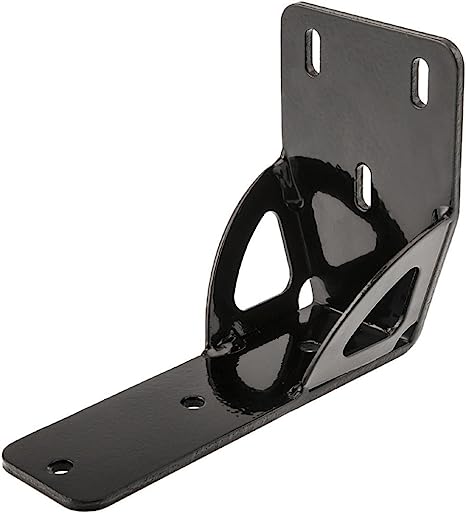

The 813402 Awning bracket is designed with welded gussets to provide additional strength when awnings are mounted to roof bars on vehicles used off road or under extreme conditions. Ideal for Additional Strength for Off-Road use or Under Extreme Conditions.
Zinc plated and powder coated for corrosion resistance and designed to mount either upright or inverted, the awning bracket is 50 mm wide with 8 pre-frilled holes allowing it to fit over both Thule SquareBar & Rhino Heavy Duty bars in the inverted position, or upright using T-bolts or channel nuts on Thule ProfessionalBar, WingBar & AeroBar or Rhino Heavy Duty.
Pre-drilled to accept 8mm bolts, at least 2, but preferably 3 bolts should be used to mount to the roof bar for maximum strength. The outer bolt hole between the gussets must always be used for the gusset to be effective. Three slotted 6mm holes are provided to mount the awning.
The awning bracket is not supplied with hardware. Due to different bar designs, it is recommended to use T-bolts and channel nuts supplied by the roof bar manufacturer.
The current awning bracket has recently been upgraded from 3mm to 4mm construction however it is considered lighter duty and designated for highway use.
ABOUT 813402 AWNING BRACKET: Designed with welded gussets to provide additional strength when awnings are mounted to roof bars on vehicles used off-road or under extreme conditions.
ABOUT IT´S COMPOSITION: Zinc plated and powder coated for corrosion resistance and designed to mount either upright or inverted.
IMPORTANT ARB 813402 BRACKET FEATURES: Bracket is 50 mm wide. Pre-drilled to accept 8 mm bolts, at least 2, but preferably 3 bolts should be used to mount to the roof bar for maximum strength. The outer bolt hole between the gussets must always be used for the gusset to be effective. Three slotted 6mm holes are provided to mount the awning.
RECOMMENDATION: A minimum of two brackets are required to mount the ARB Awnings, three brackets are highly recommended for the 2500 mm Aluminum and PVC Bag Awning versions. ARB recommends no more than 18 inches of unsupported overhang.
ARB EXPERT MANUFACTURERS: Leading manufacturer / International Renown for Award-Winning Products / Tested for durability in real-world conditions / Meeting or exceeding all required and standardized testing / Always manufacturing with the user in mind.

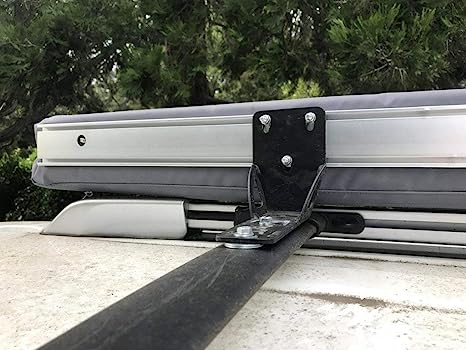

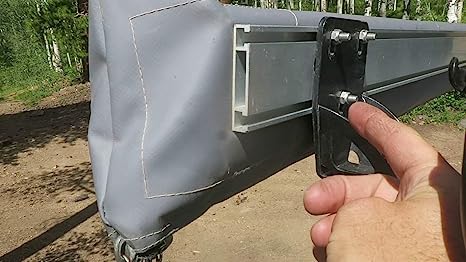

Multiple Awning Brackets
ARB suggest to use 2 or 3 brackets to secure the Awning.
ARB has 3 awning sizes, 1250 mm, 2000 mm and 2500 mm.
Bigger awnings should use 3 brackets to secure the Awnng to the roof rack

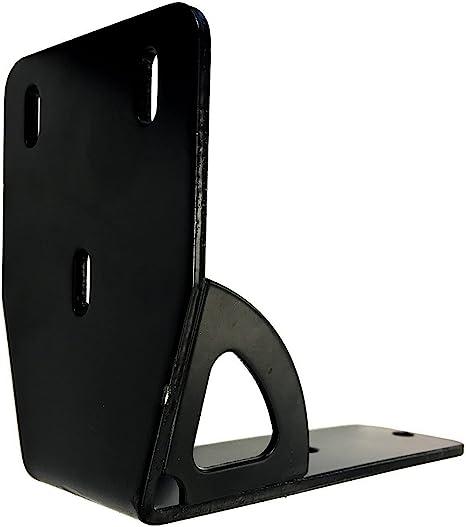

Awning Bracket is Pre-drilled
The awning bracket is 50 mm wide
Pre-drilled to accept 8mm bolts, at least 2, but preferably 3 bolts should be used to mount to the roof bar for maximum strength. The outer bolt hole between the gussets must always be used for the gusset to be effective. Three slotted 6mm holes are provided to mount the awning.
The awning bracket is not supplied with hardware. Due to different bar designs, it is recommended to use T-bolts and channel nuts supplied by the roof bar manufacturer.
Specifications
- Brand: ARB
- Item Weight: 2 pounds
- Product Dimensions: 6.5 x 5 x 3.5 inches
- Manufacturer Part Number: 813402
