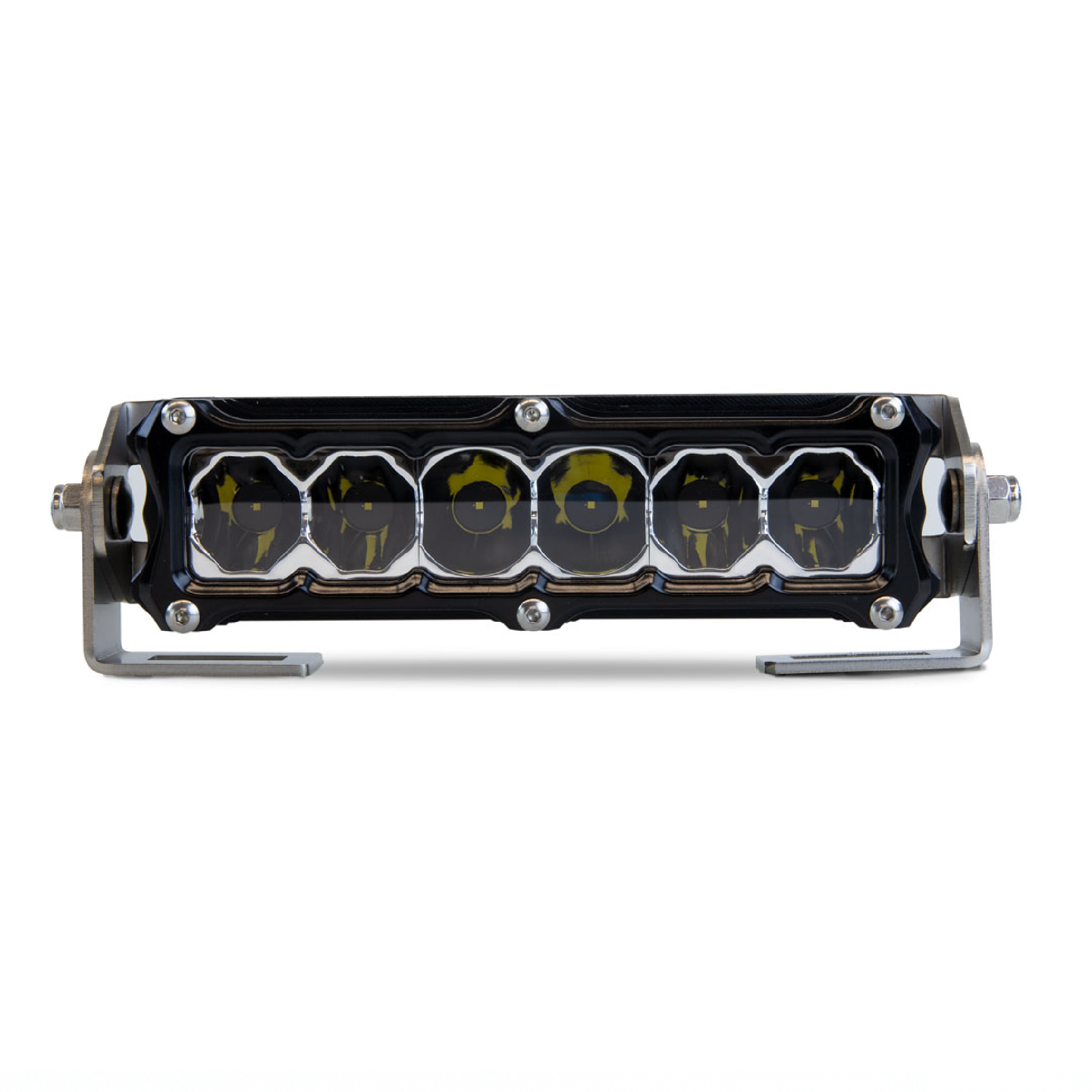

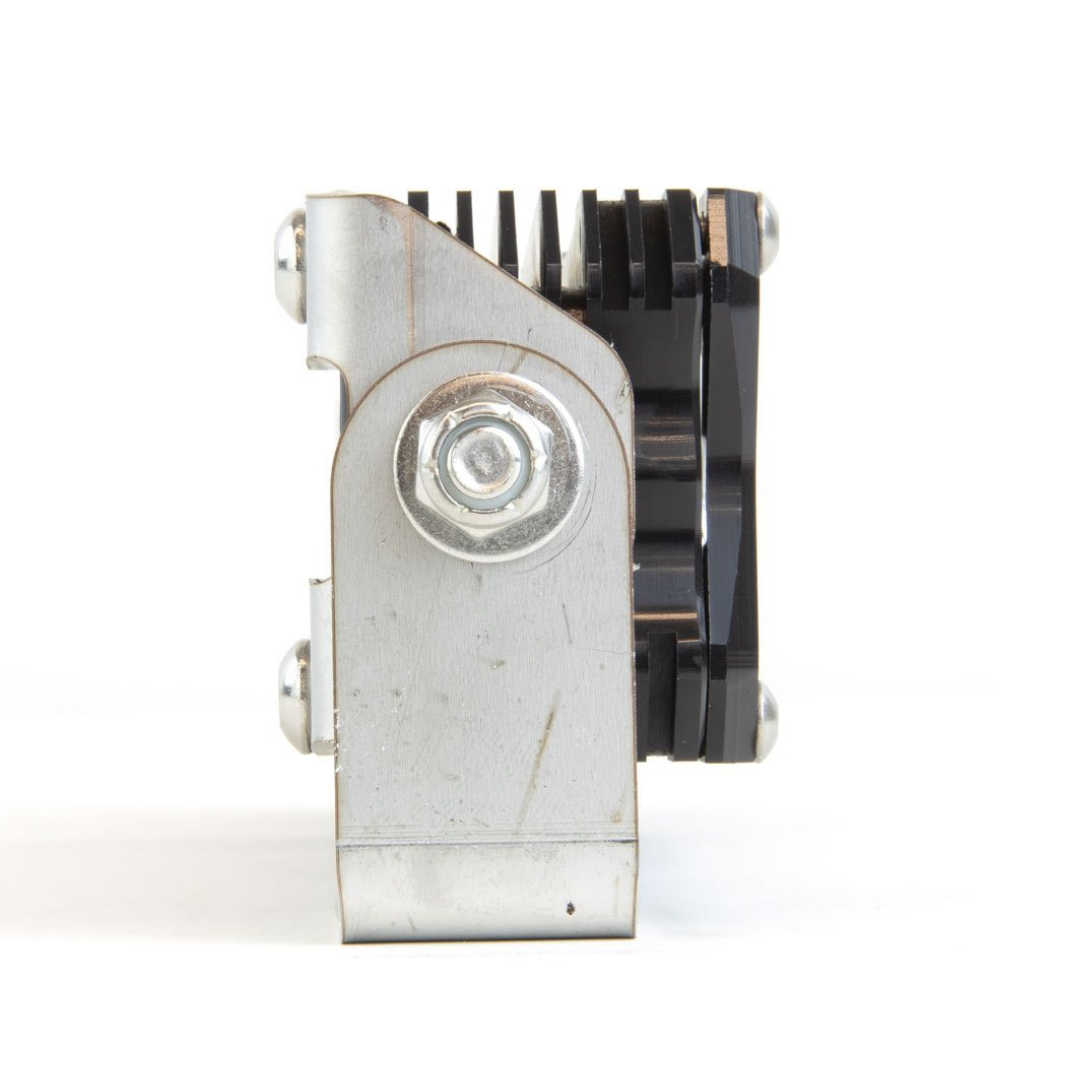

HERETIC STUDIO | 6" LED Light Bar
Beam Pattern
SELECT OPTIONS
Beam Pattern
Beam Pattern
Overview
Shipping Time: 3-4 Weeks
The Heretic 6" LED light bar is built for off-road. These high performance LED light bars are housed in CNC machined aircraft-grade aluminum, and outfitted with best-in-class circuit boards that allow temperature control and long-lasting light. The 6” LED light bar is recommended as a ditch light, chase light, fog light, bumper or rack light. It’s specifically optimized for clear night conditions.
Features
- USA Patented 6061 CNC Aluminum Grade Billet Housing
- (6) 6-watt CREE LED
- Designed, Assembled, Supported, and Shipped in Centerville,Utah
- Customize Your Beam Pattern: Combo, Spot, or Flood
- Customize Your Bezel - Contact Heretic Studio
Vehicle Application
UTV Front Bumpers, Truck Front Bumpers. Typically lower placement and forward-facing. Often times placed on the sides and rear of roof racks to provide scene lighting. Requires aftermarket mount.
Parts Sold Separate
- Wiring Harness
- Aftermarket Mount for Roof Rack Attachment
- Amber Lens Attachment - Link
Details/Specs
Shipping Weight: 3lbsType: 6” LED Light Bar
Housing: CNC Aircraft-Grade Aluminum
Location: Ditch, Bumper, Chase, Fog, Rack Light
Light Color: White
Lens Color: Amber
Wattage: 30W
Amp Draw at 13.8V: 3A
Voltage: 9V-36V
IP Rating: IP68
DIM (Light Only): L 7” x D 1.5” x H 2”
DIM (Light W/ Bracket): L 8” x D 1.5” x H “2.4
Lumens: 4356 lm
Lux At 10m:
- Spot: 1238 lx
- Flood: 263 lx
- Combo: 588 lx
- Spot: 123750 cd
- Flood: 26325 cd
- Combo: 58800 cd
- Spot: 704 m
- Flood: 324 m
- Combo: 485 m
Prop 65: No
SAE/ECE: No
