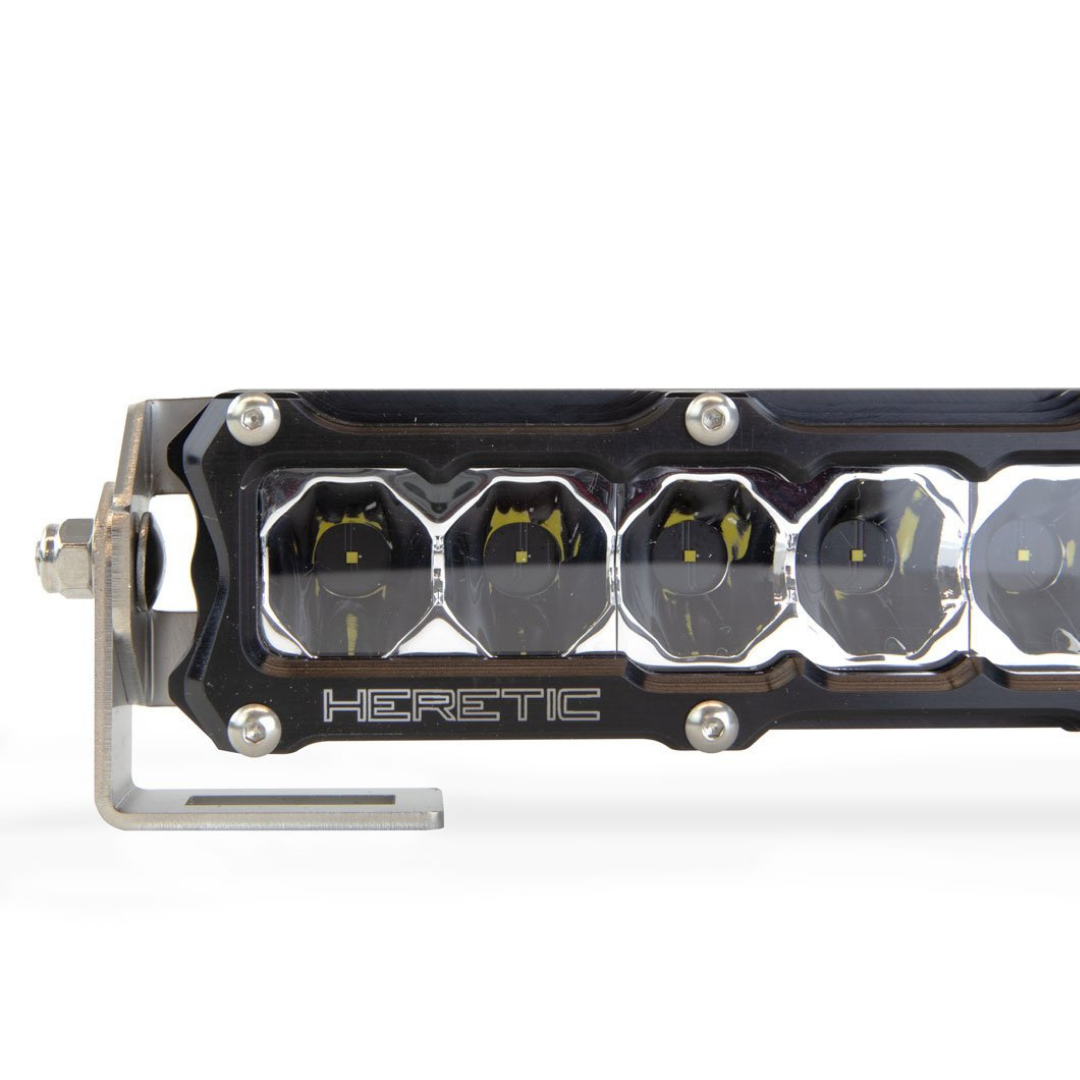

studio shot of heretics 50 inch led light bar

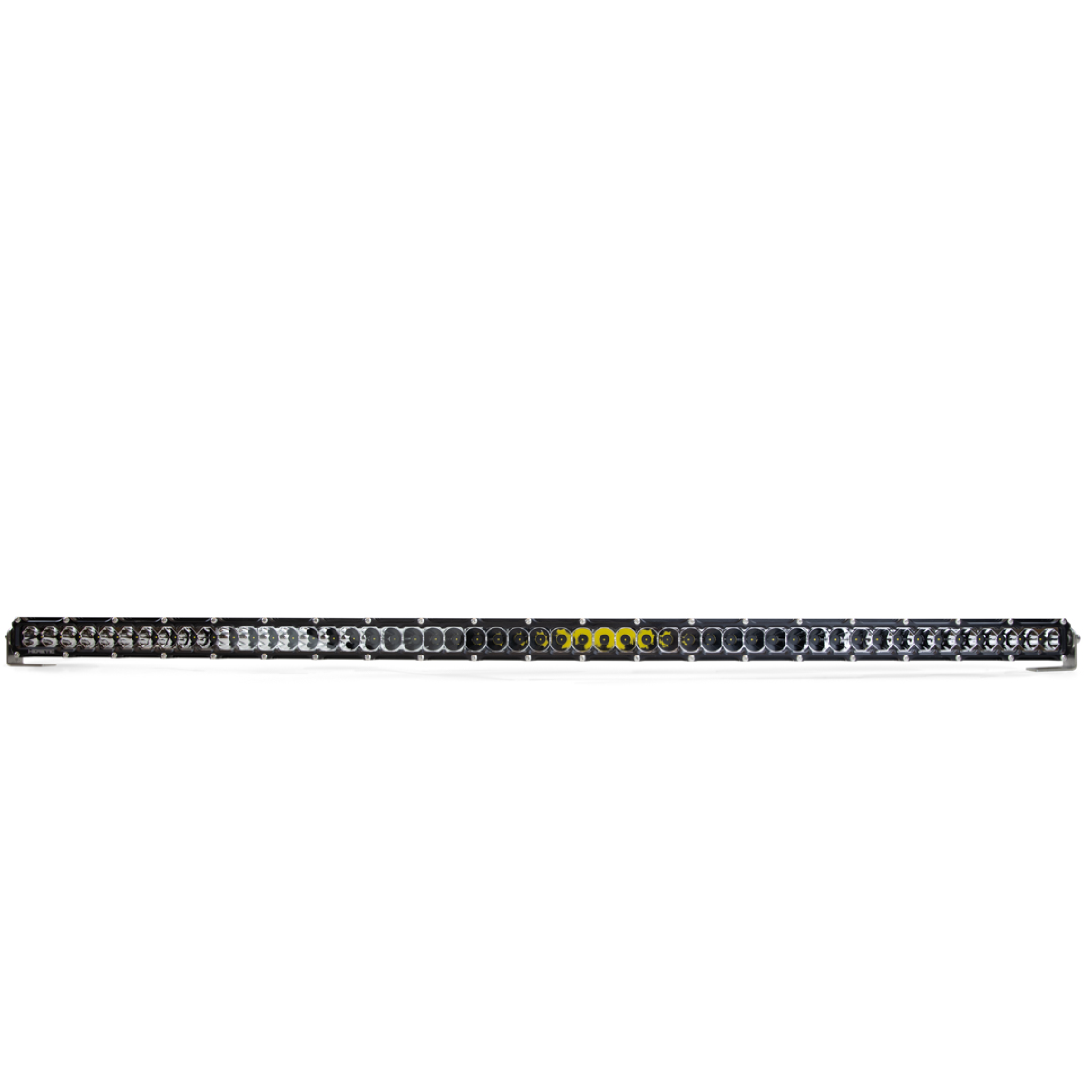

studio shot of heretics 50 inch curved led light bar
studio shot of heretics 50 inch curved led light bar

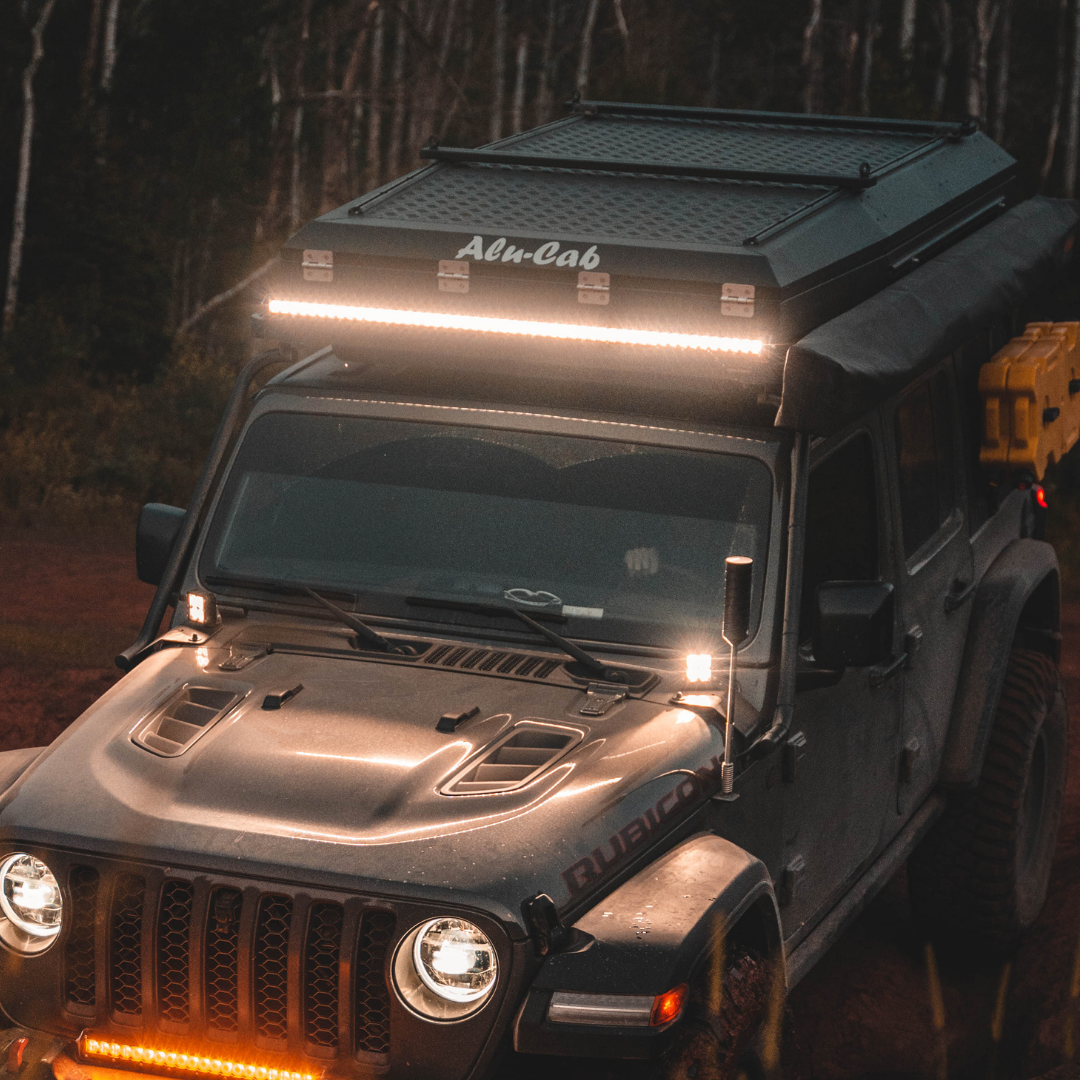

50 inch led light bar mounted on a jeep

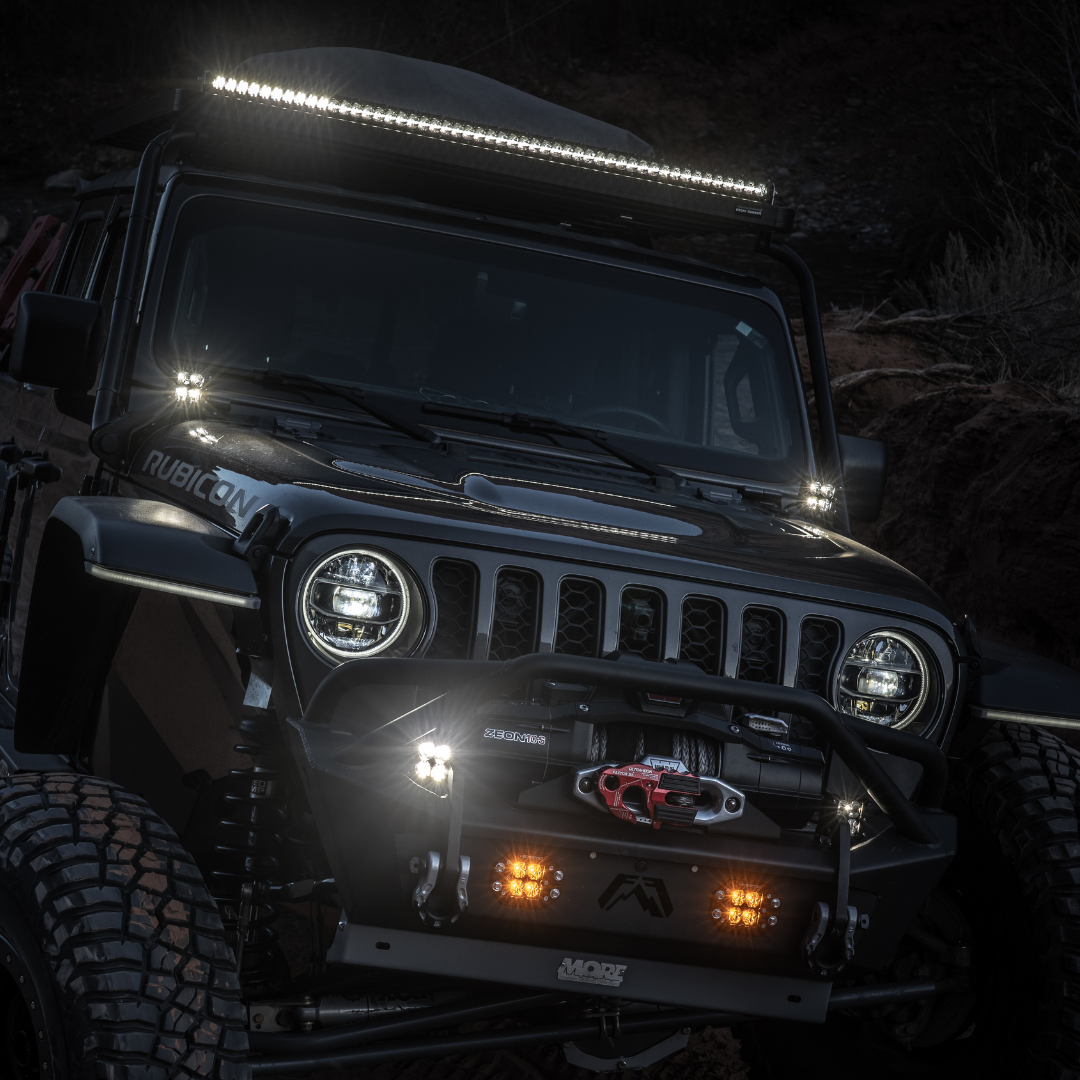

50 inch led light bar mounted on a jeep

HERETIC STUDIO | 50" LED Light Bar

Sale price$1,149.99
Beam Pattern:

Beam Pattern

Quantity:

verview

Shipping Time: 3-4 Weeks

The Heretic 50" LED light bar is a beast of a light when it comes to LED light bars. They truly turn darkness into light. These high performance 6-series curved clear LED light bars are housed in CNC machined aircraft-grade aluminum, and outfitted with best-in-class circuit boards that allow temperature control and long-lasting light. The 50” LED light bar is recommended for forward-facing applications in aftermarket roof racks like PRINSU and UTV roll cages. This light bar is best for visibility on clear night conditions.

Features

  • USA Patented 6061 CNC Aluminum Grade Billet Housing
  • (50) 6-watt CREE LED
  • IP68 rated Stainless Steel Mounts
  • Designed, Assembled, Supported, and Shipped in Centerville,Utah
  • Customize Your Beam Pattern: Combo, Spot, or Flood
  • Customize Your Bezel - Contact Heretic Studio

Vehicle Application

Typically forward-facing placement for UTV roll cages that have a front curved profile. Requires aftermarket mount.

Parts Sold Separately

  • Wiring Harness
  • Aftermarket Mount for Roof Rack Attachment

Details/Specs

Shipping Weight: 9lbs
Type: 50” LED Light Bar
Housing: CNC Aircraft-Grade Aluminum
Location: Roof, Bumper, Grille, Rack
Light Color: White
Lens Color: Clear
Wattage: 300W
Amp Draw at 13.8V: 35.5A
Voltage: 9V-36V
IP Rating: IP68
DIM (Light Only): L 51” x D 1.5” x H 2”
DIM (Light W/ Bracket): L 52” x D 1.5” x H “2.4
Lumens: 36300 lm
Lux At 10m:
  • Spot: 10313 lx
  • Flood: 2194 lx
  • Combo: 7065 lx
Candela:
  • Spot: 1031250 cd
  • Flood: 219375 cd
  • Combo: 706500 cd
Beam Distance:
  • Spot: 2031 m
  • Flood: 937 m
  • Combo: 1681 m

DOT Compliant: No
Prop 65: No
SAE/ECE: No
