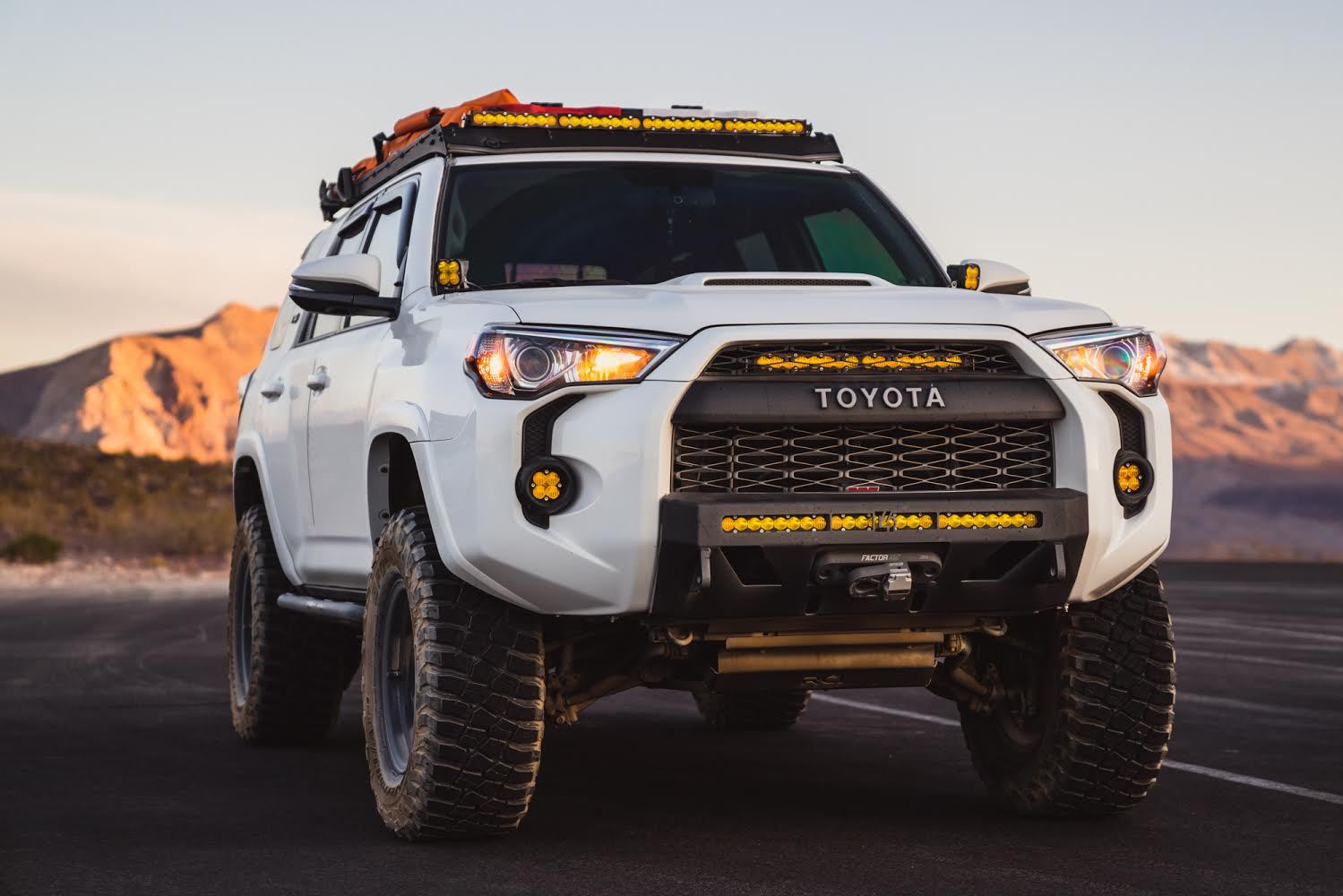

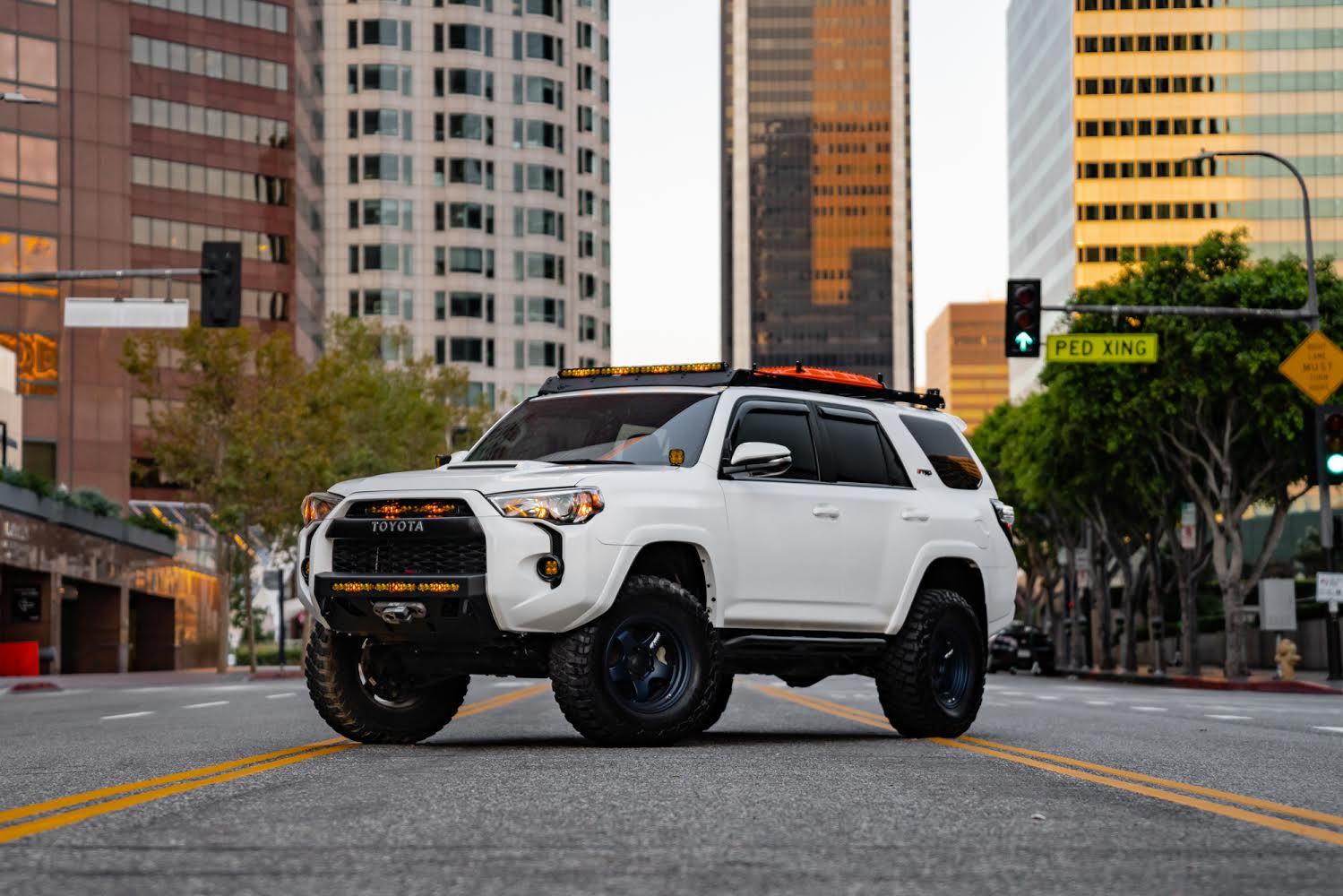

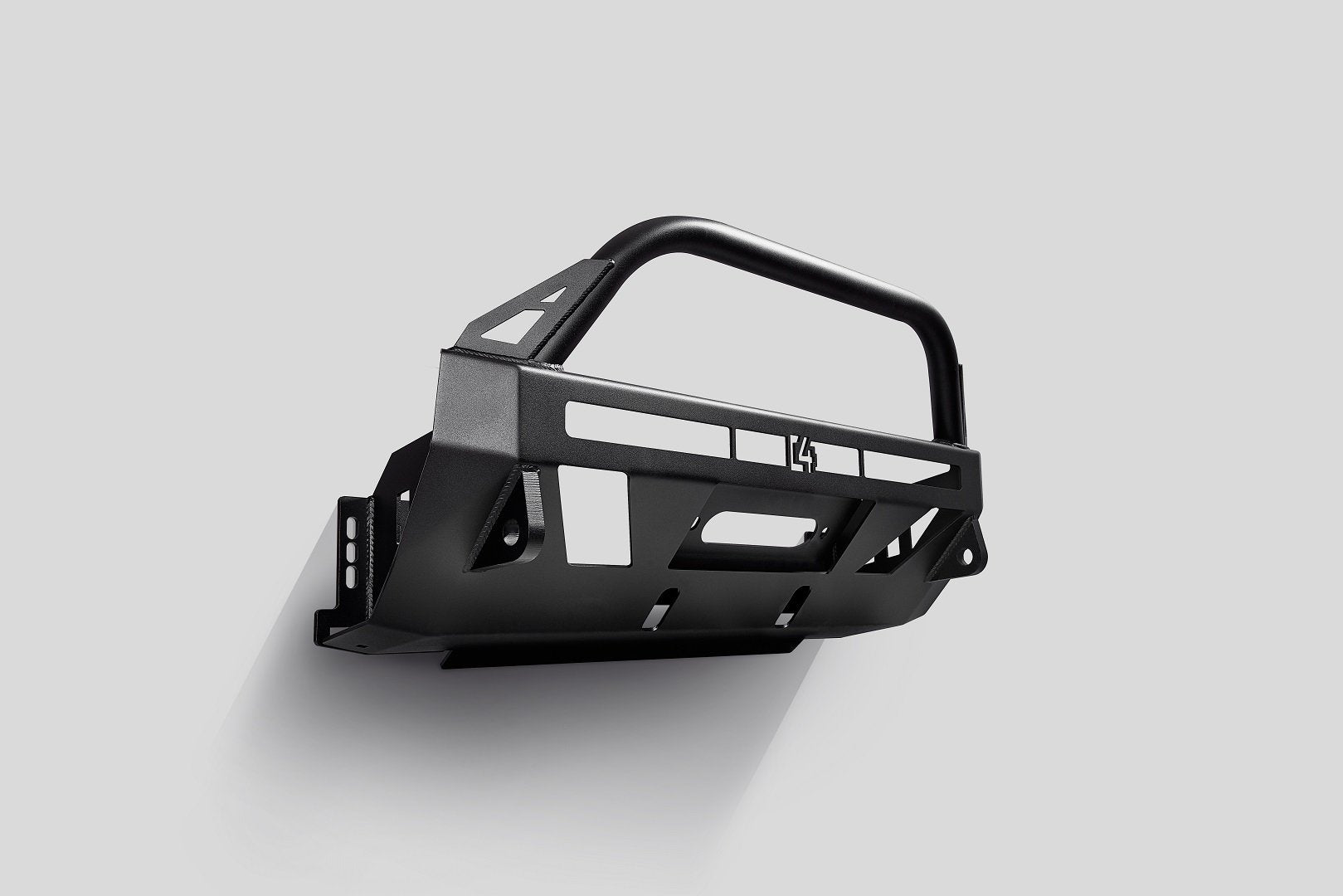

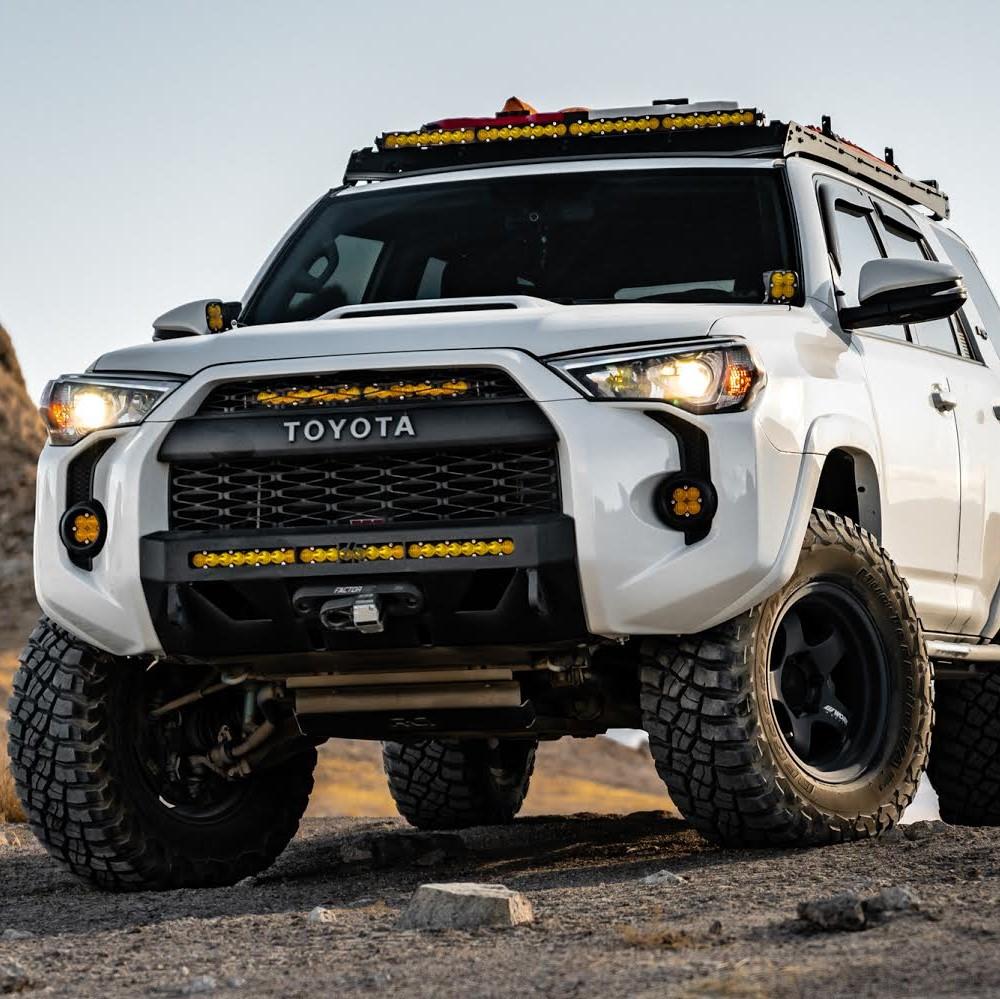

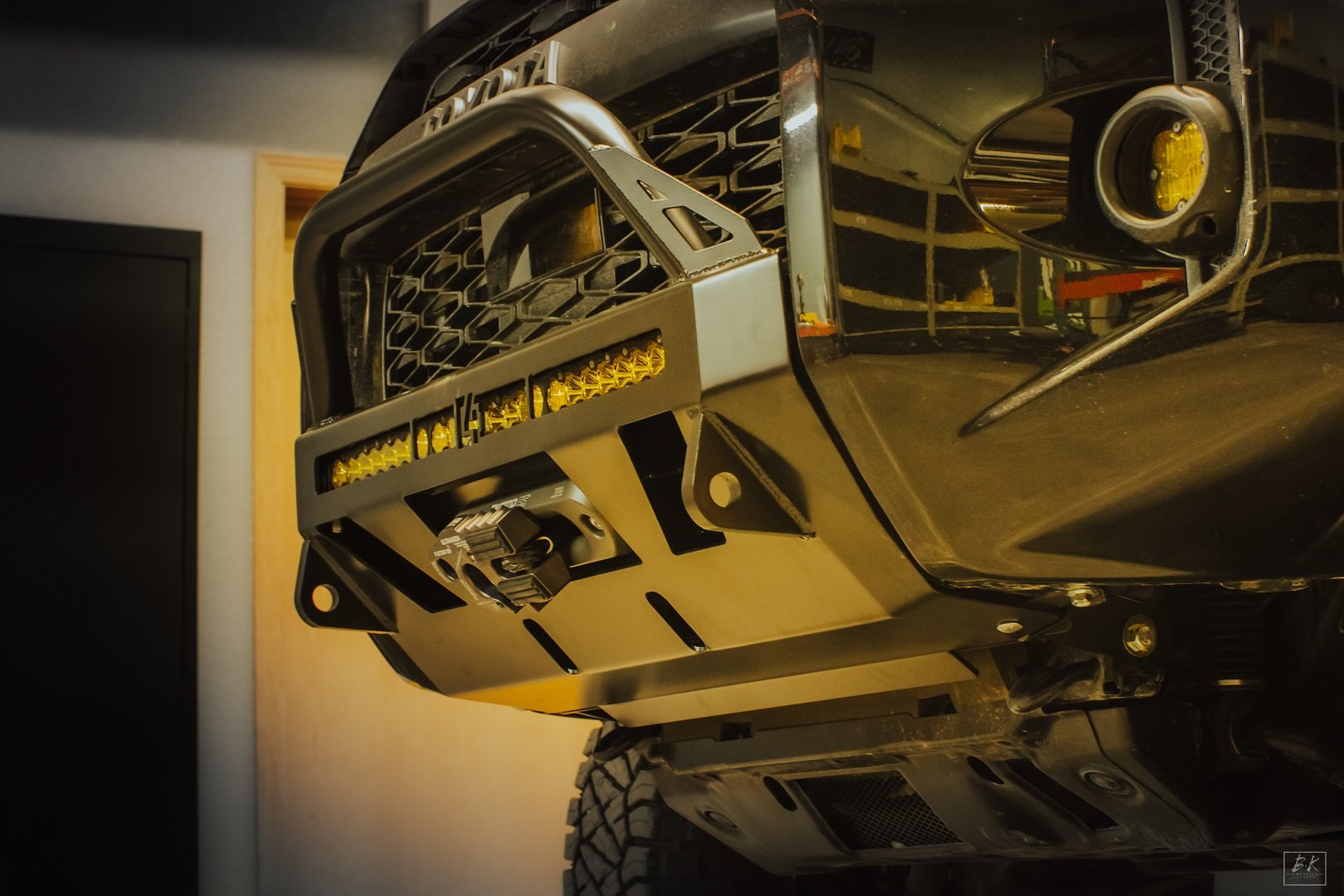

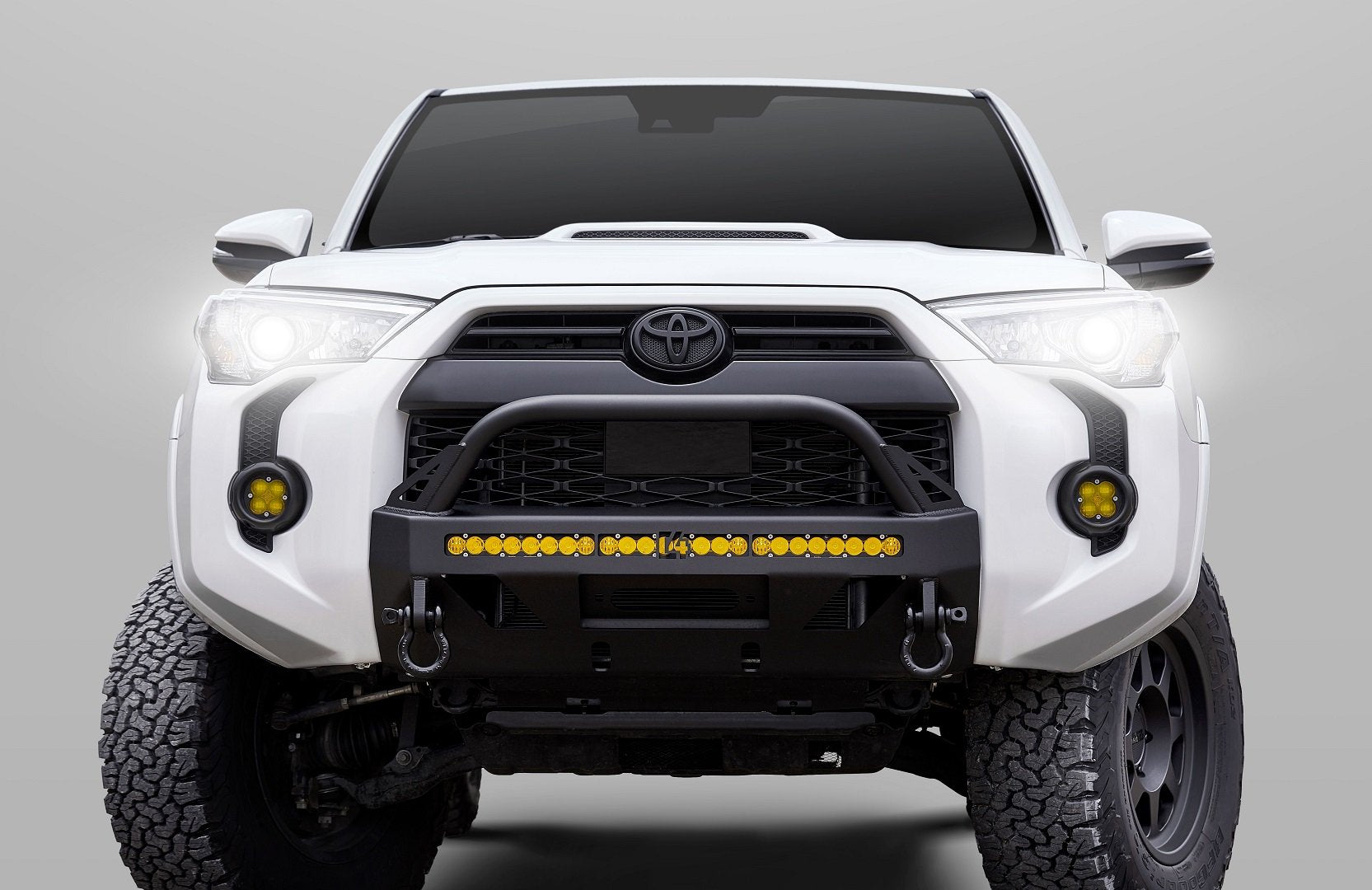

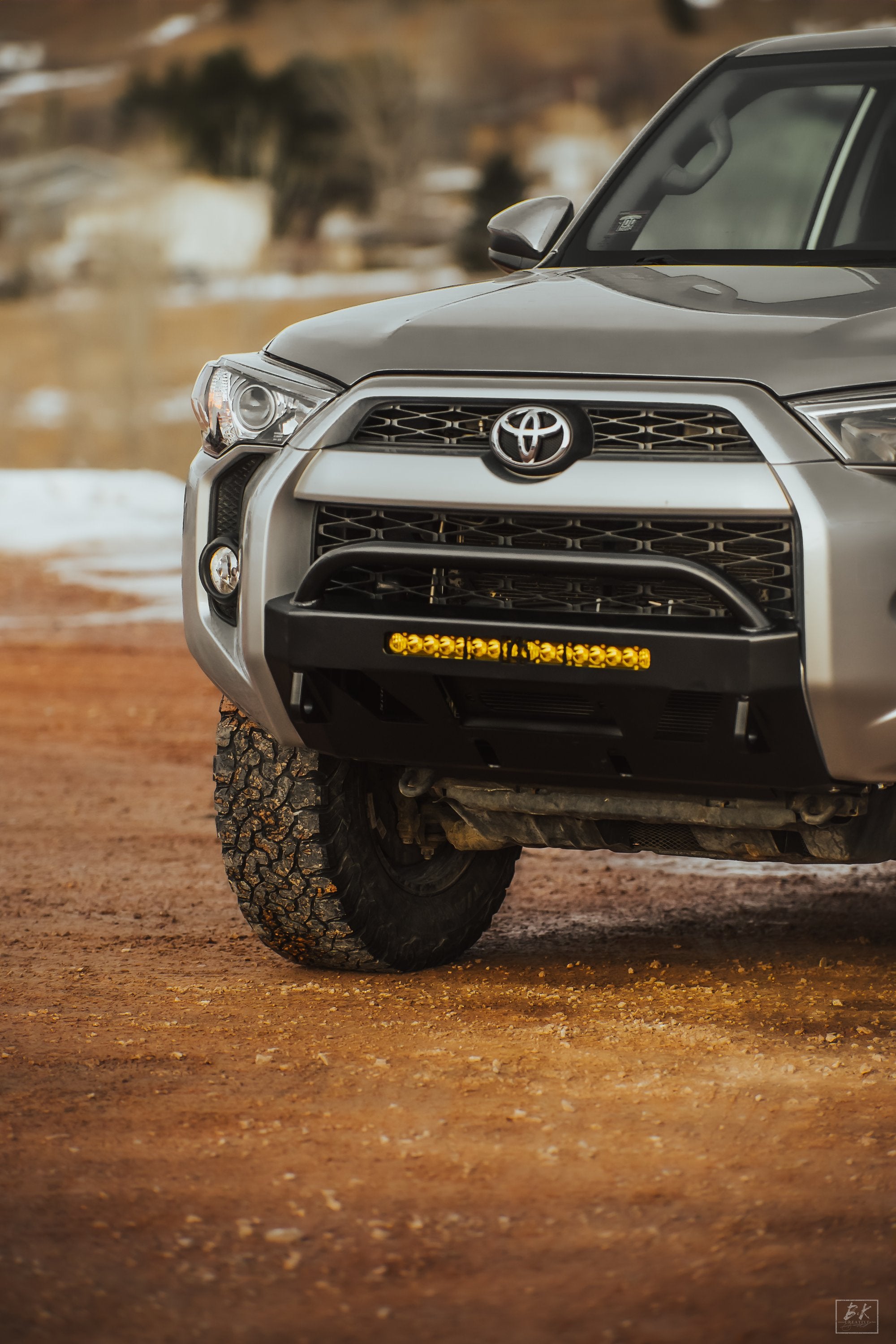

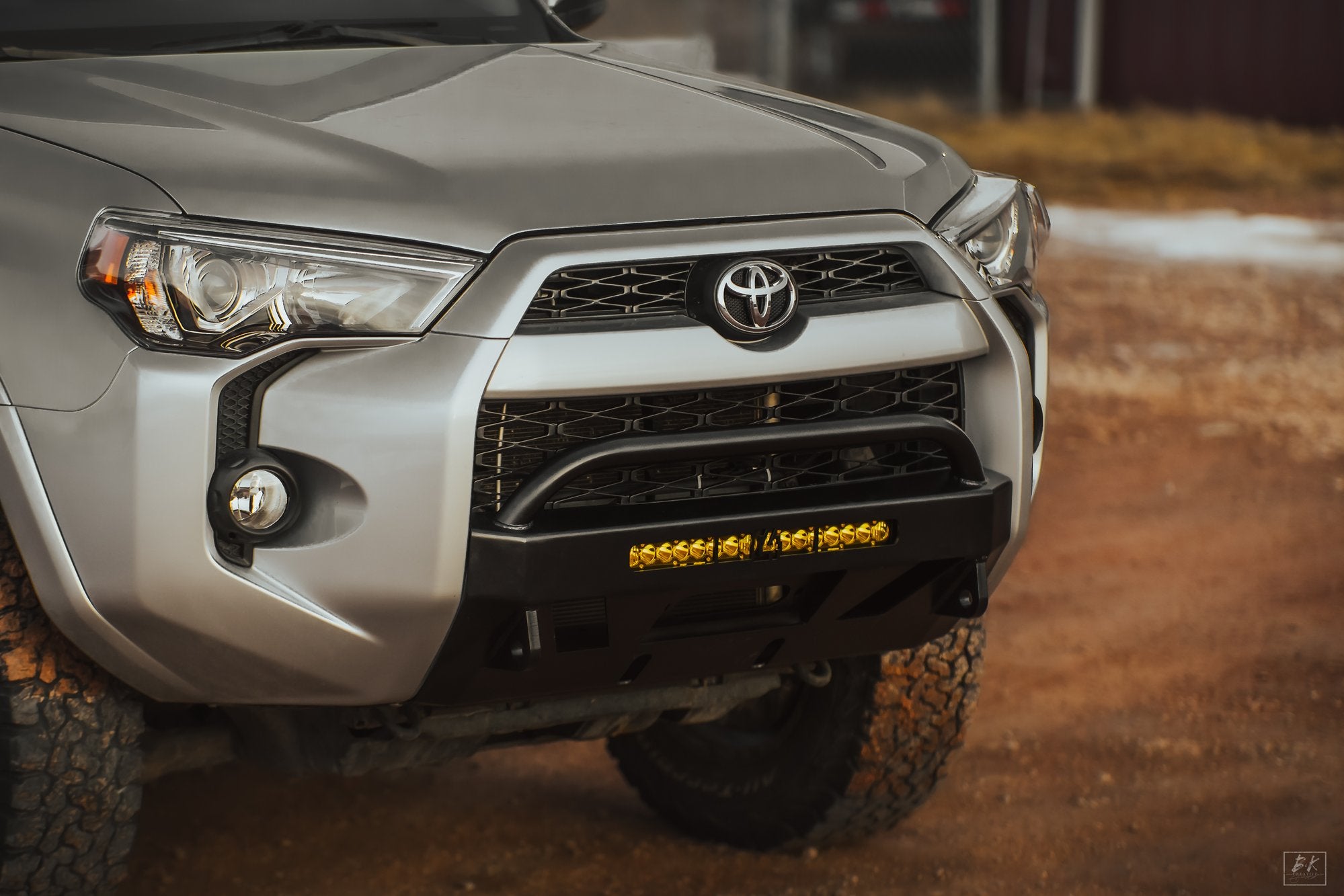

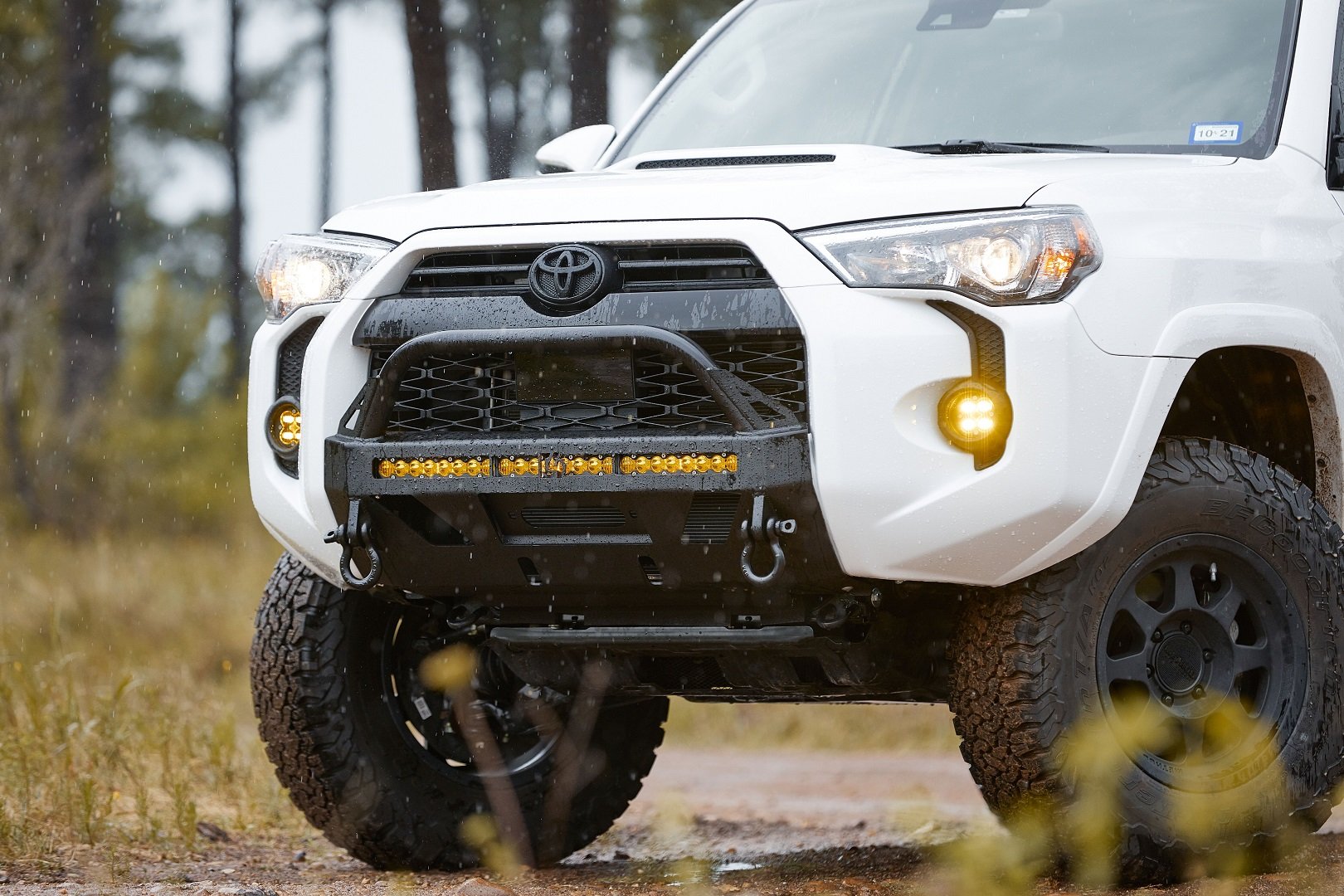

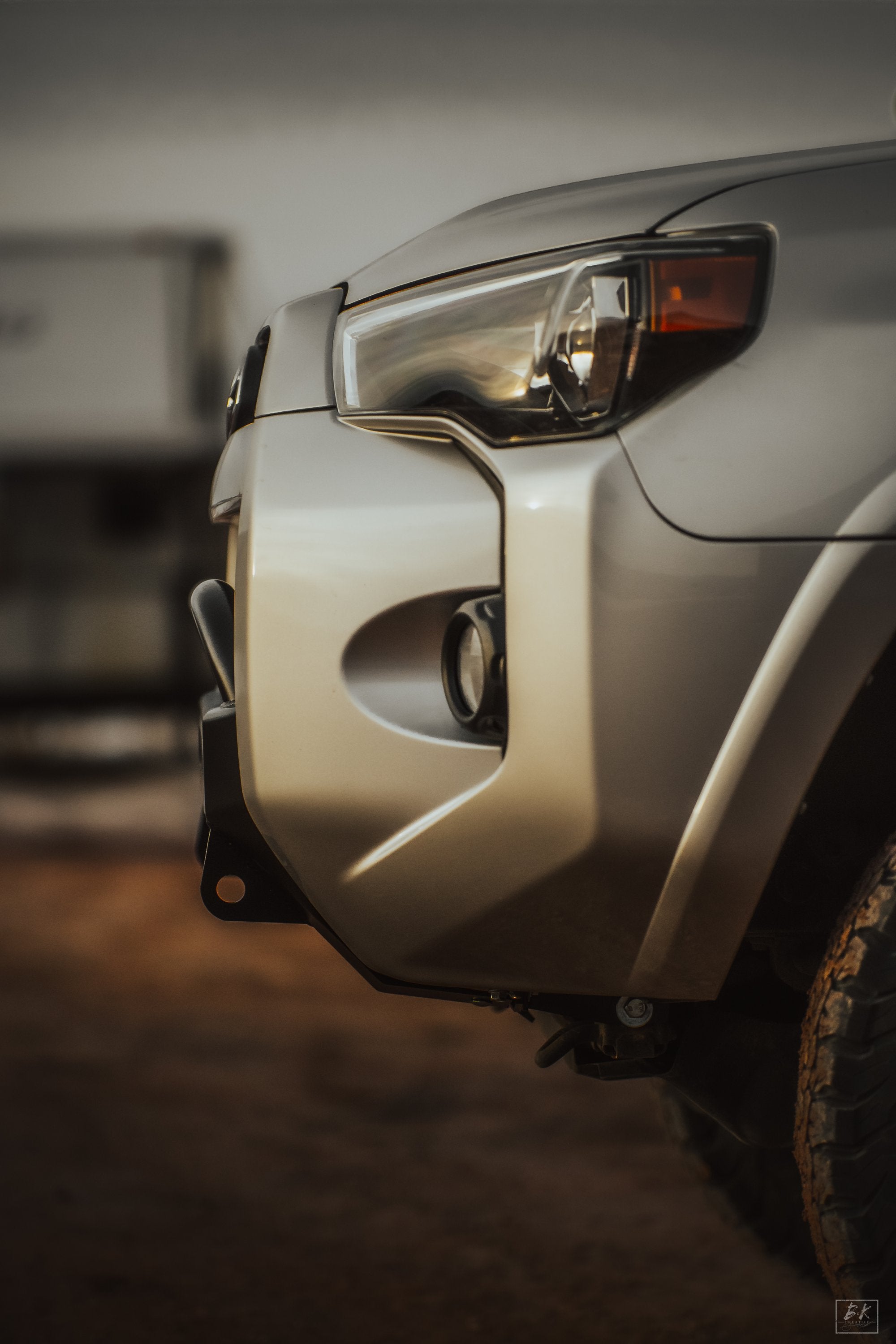

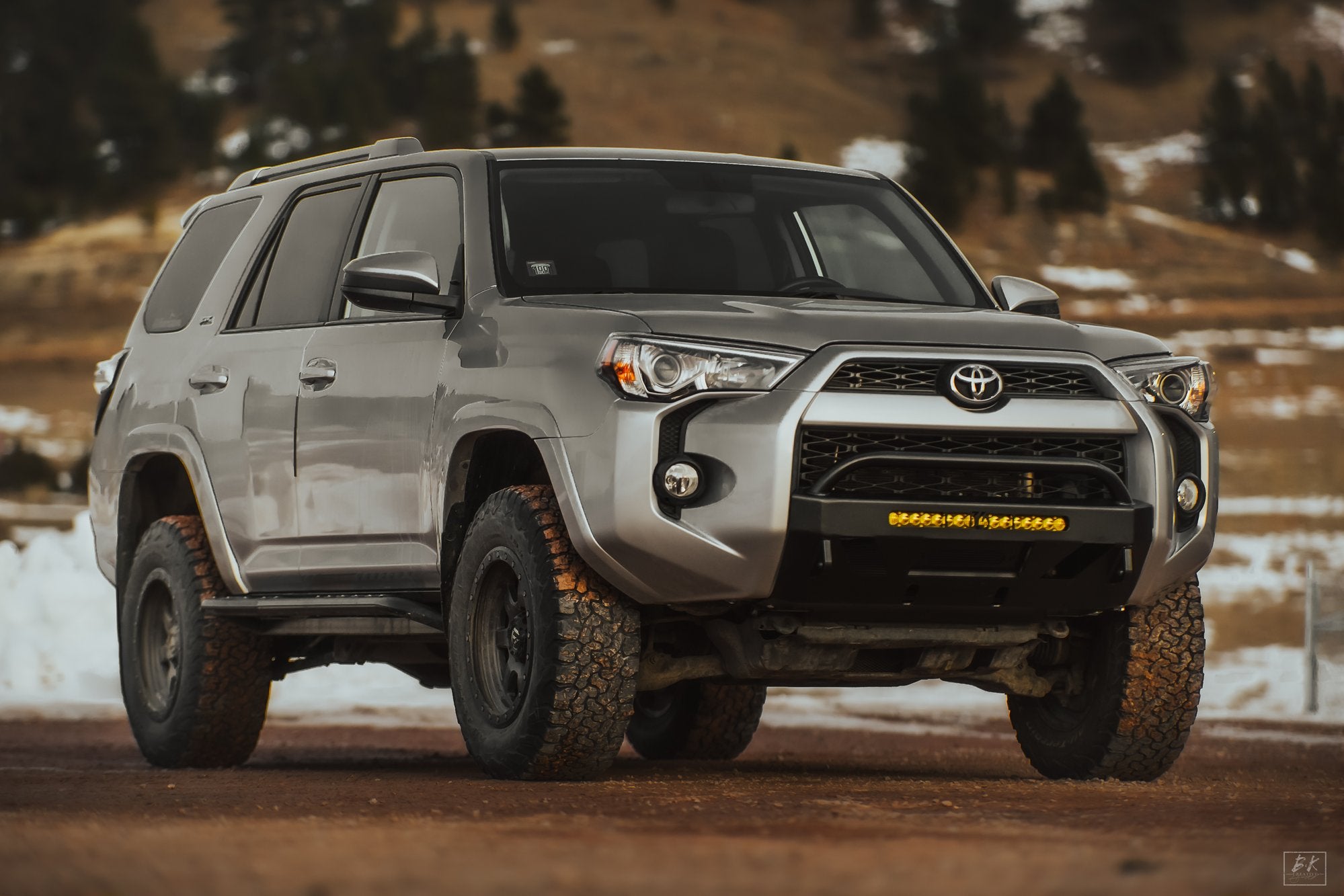

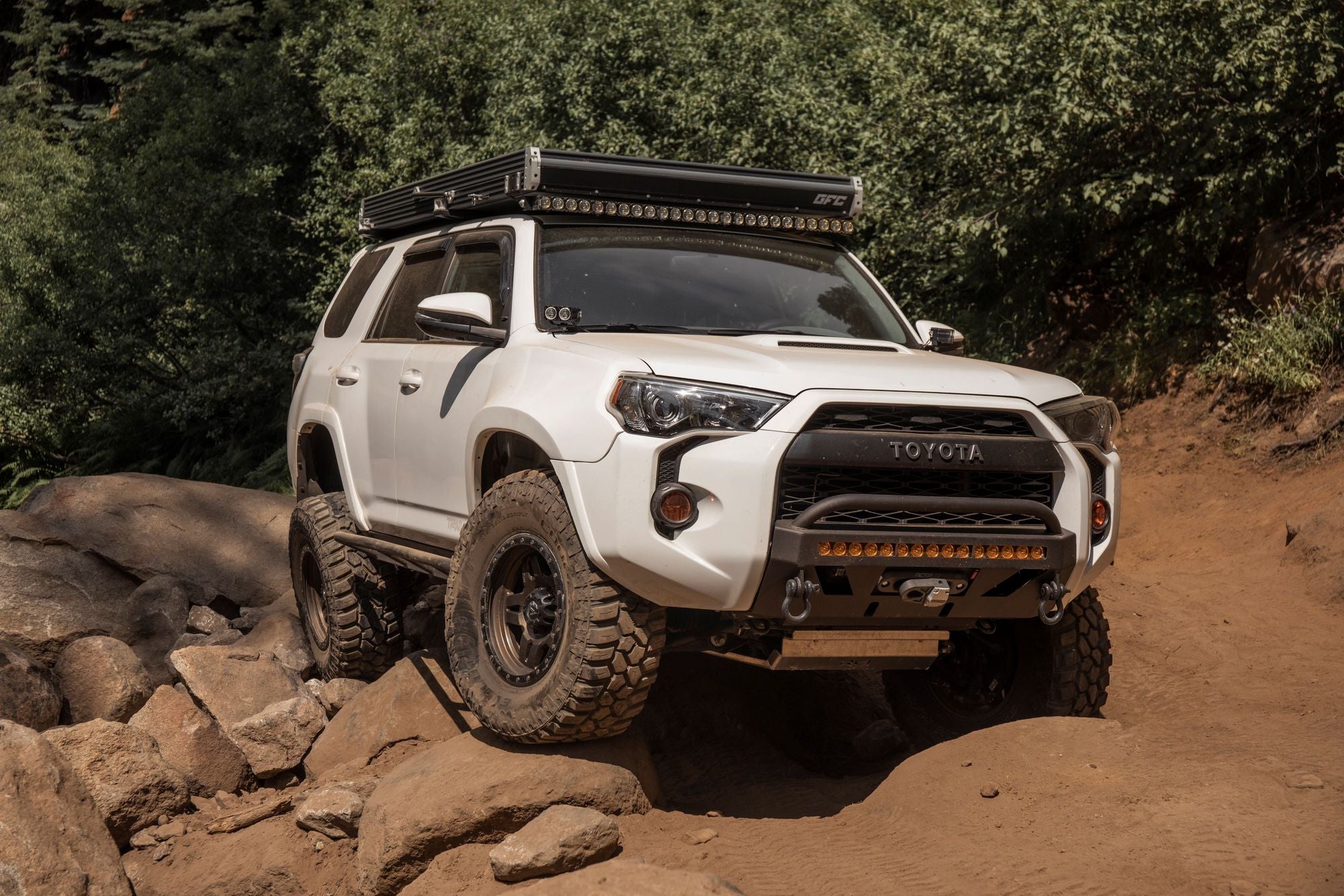

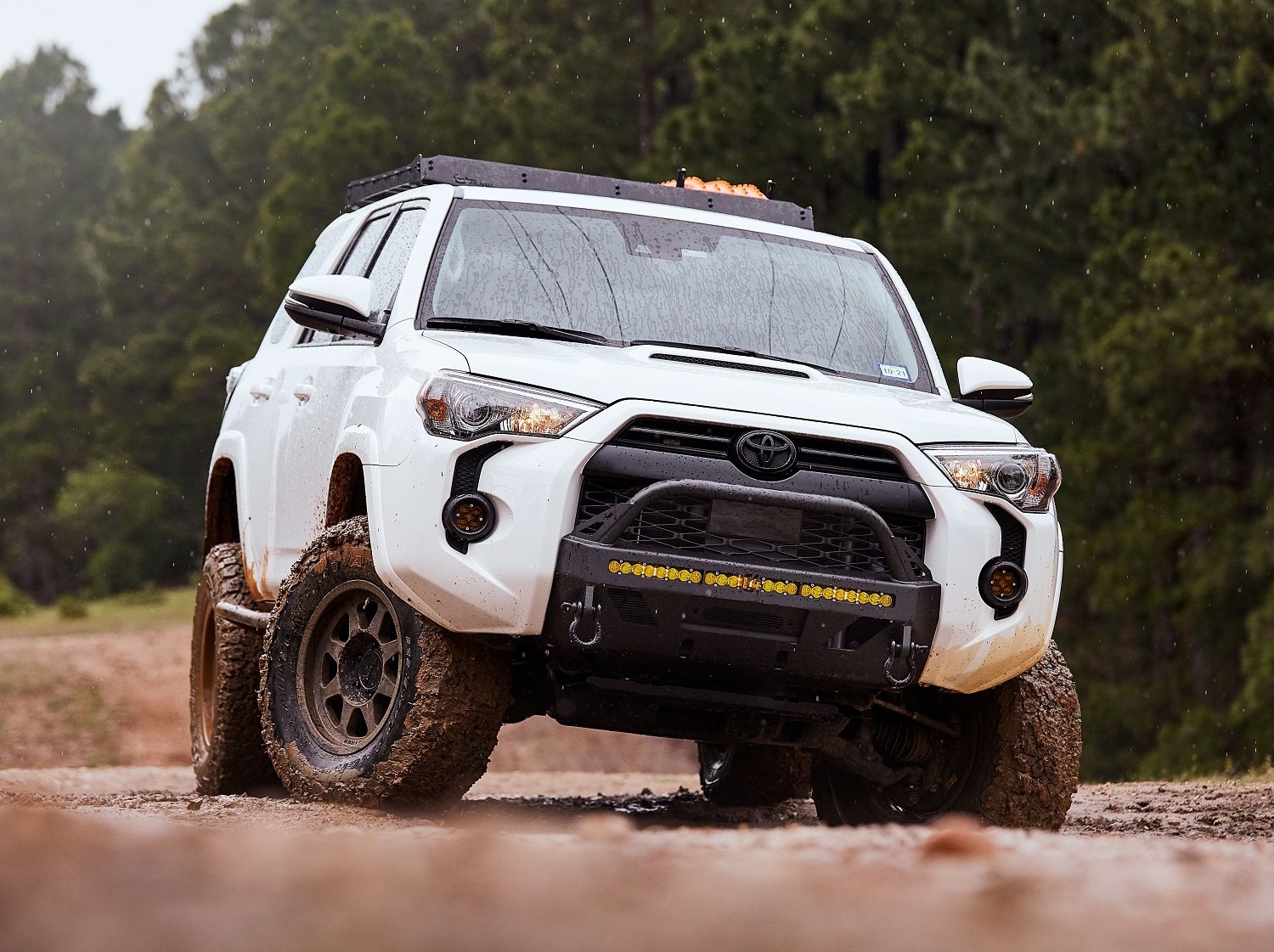

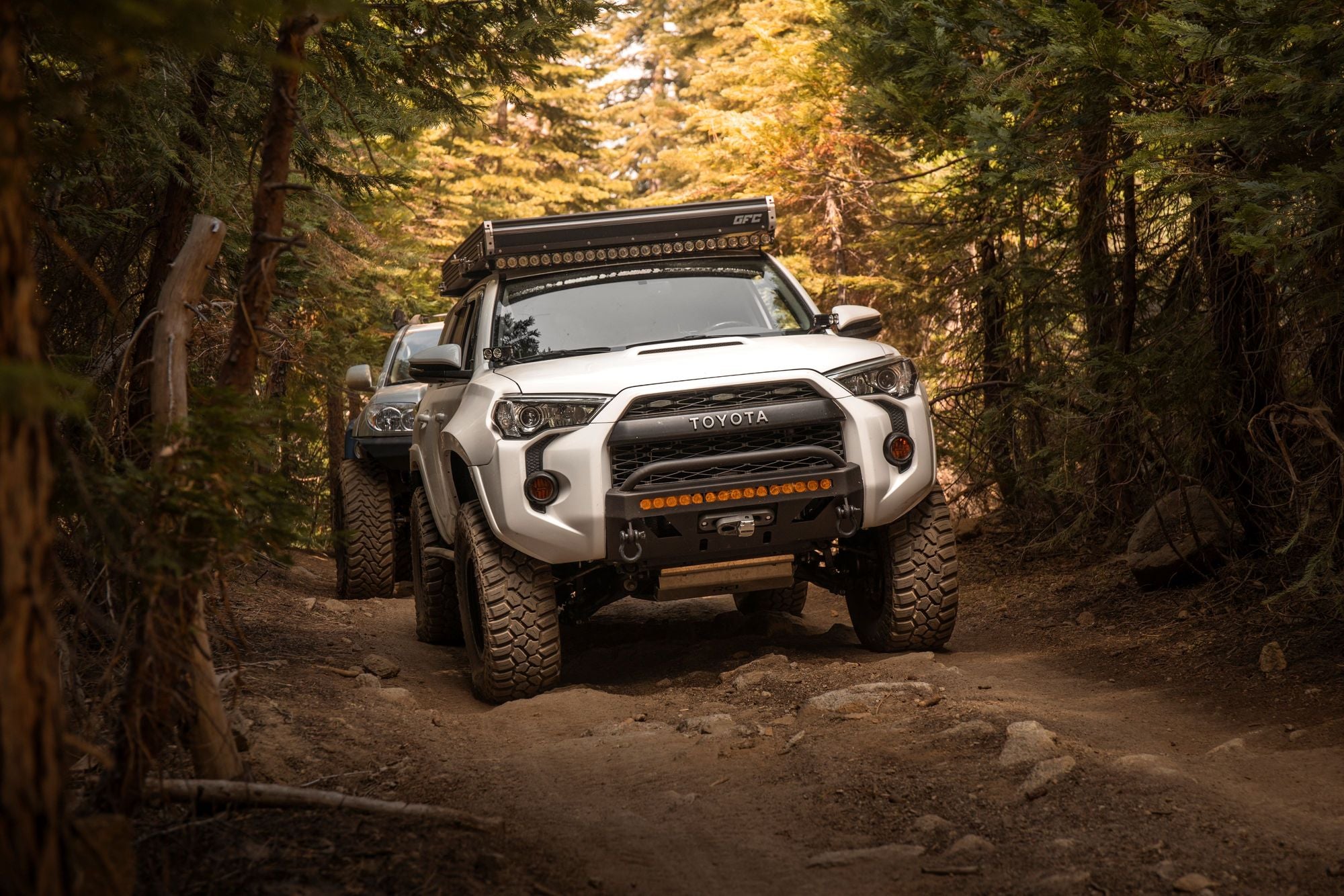

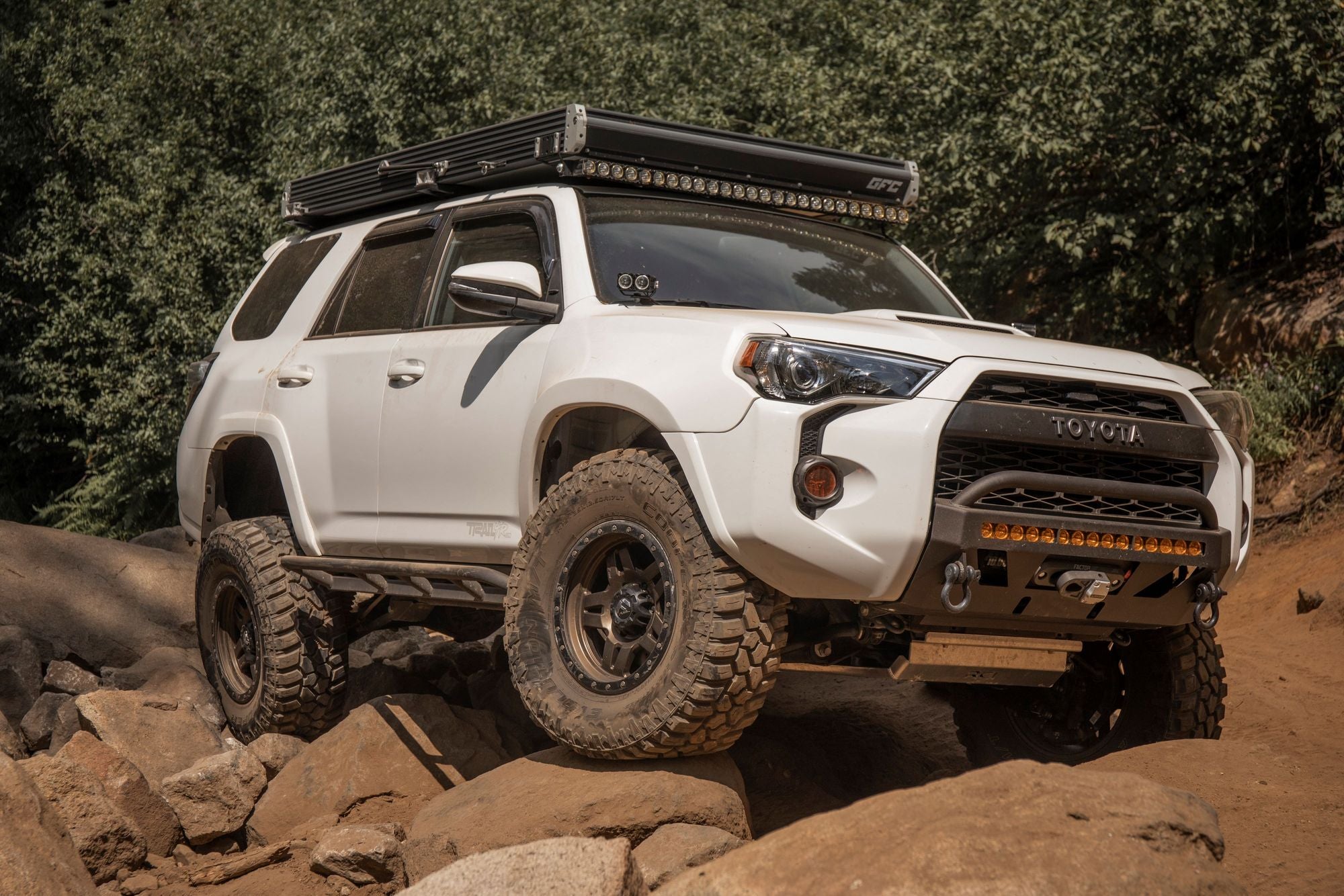

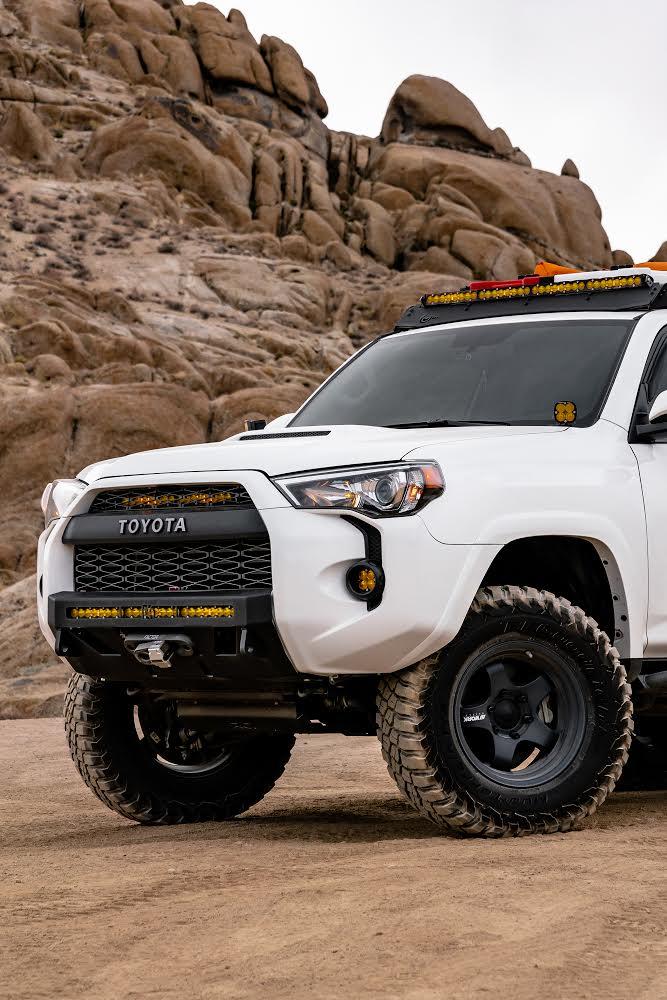

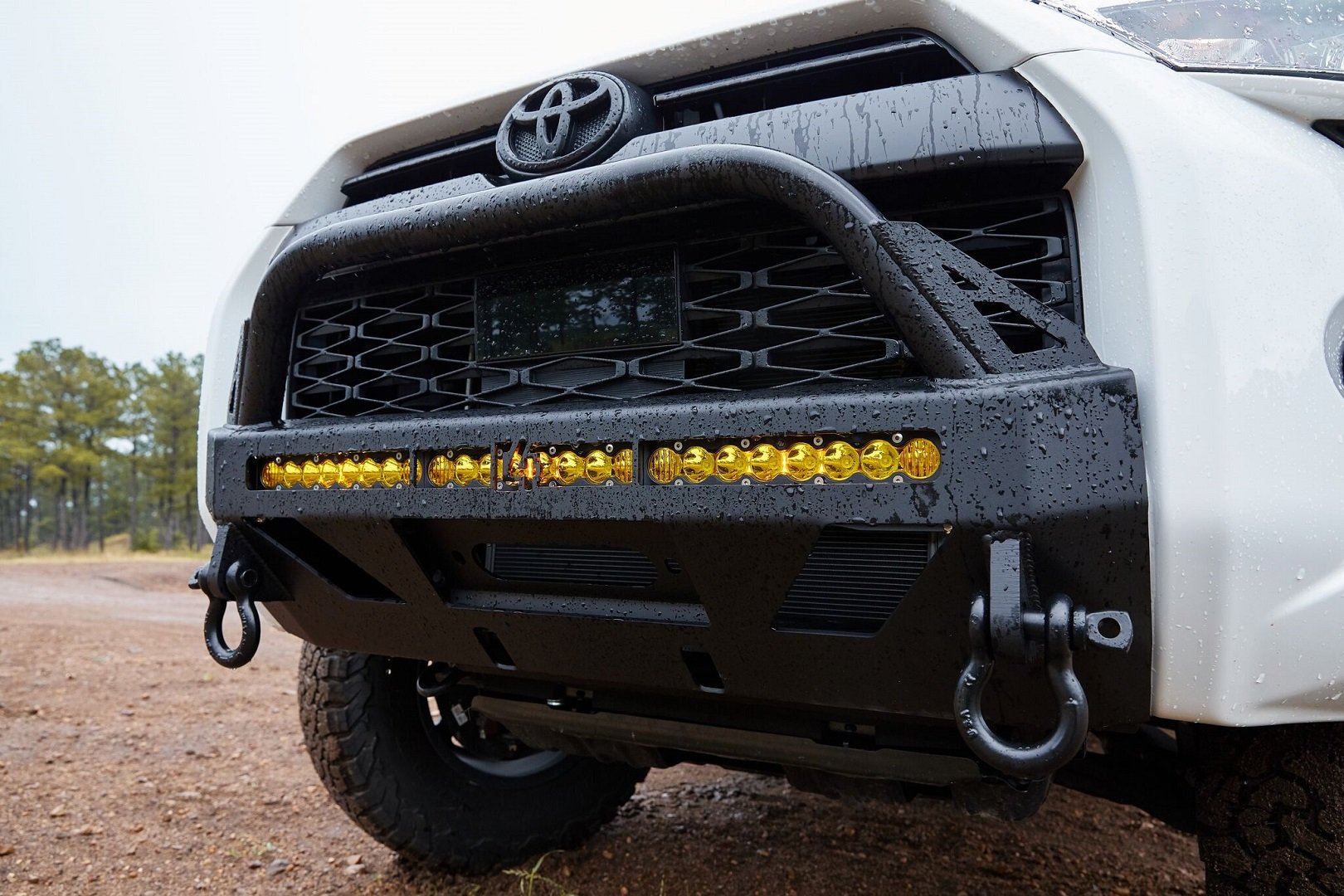

C4 Fab | 4Runner Lo Pro Winch Bumper / 5th Gen / 2014+

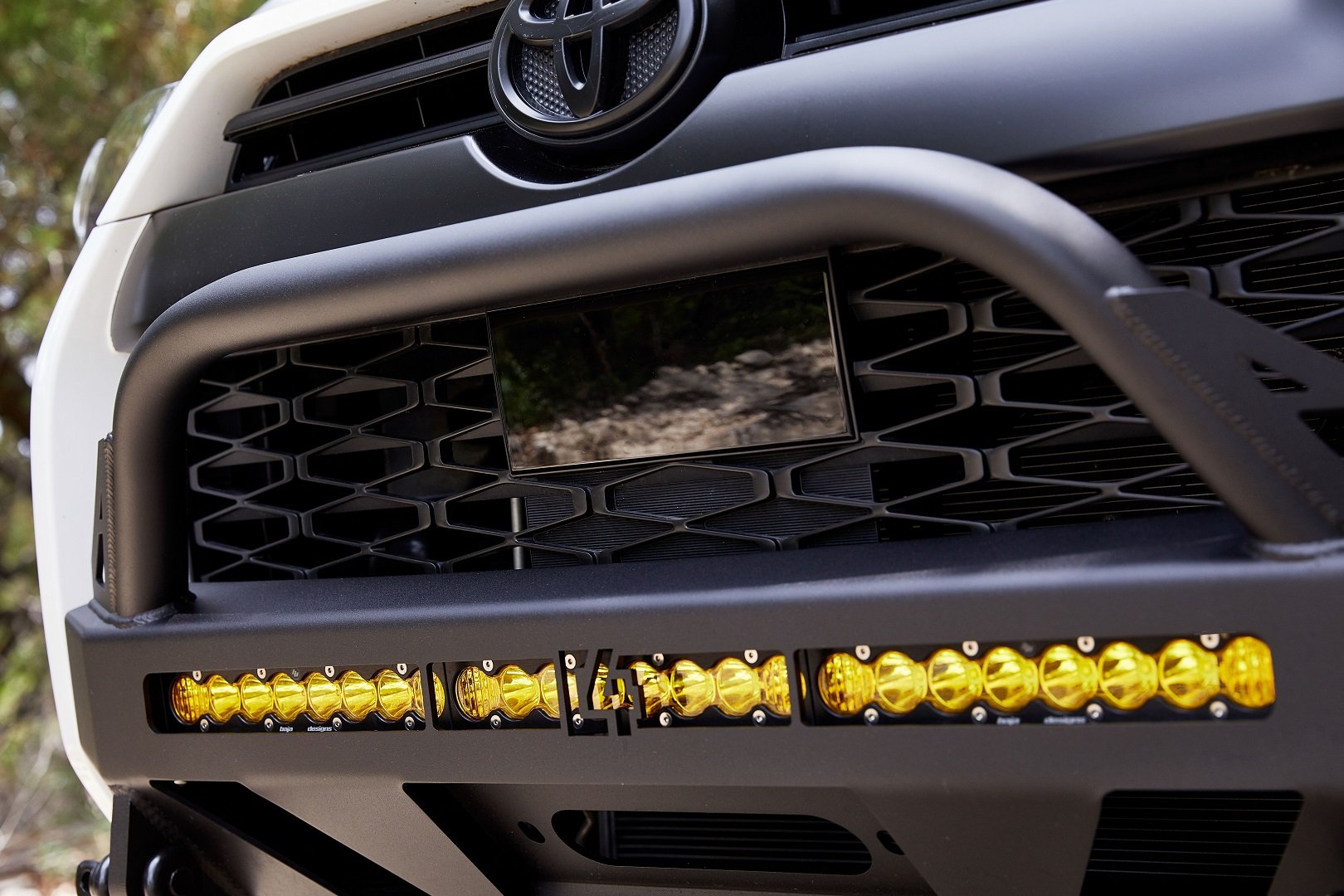

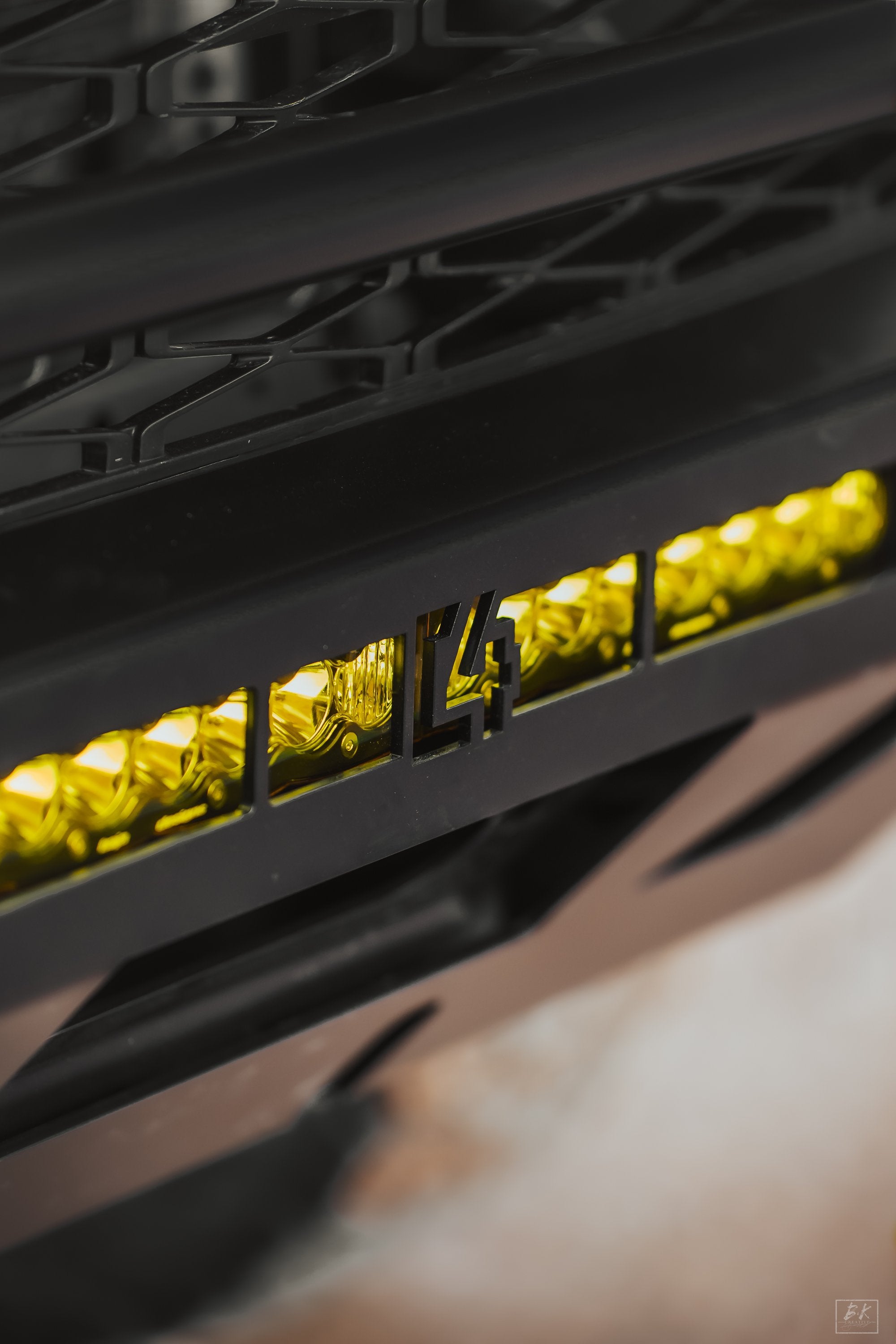

ALL BUMPERS NOW COME WITH THE “C4” LOGO CUT INTO THE LIGHT BAR CUTOUT AREA. The “C4” logo will still be cut in that location if “no cutout” is selected under light bar cutout options.“C4 Fab” will no longer be cut into the lower portion of the bumper as some of the photos show.

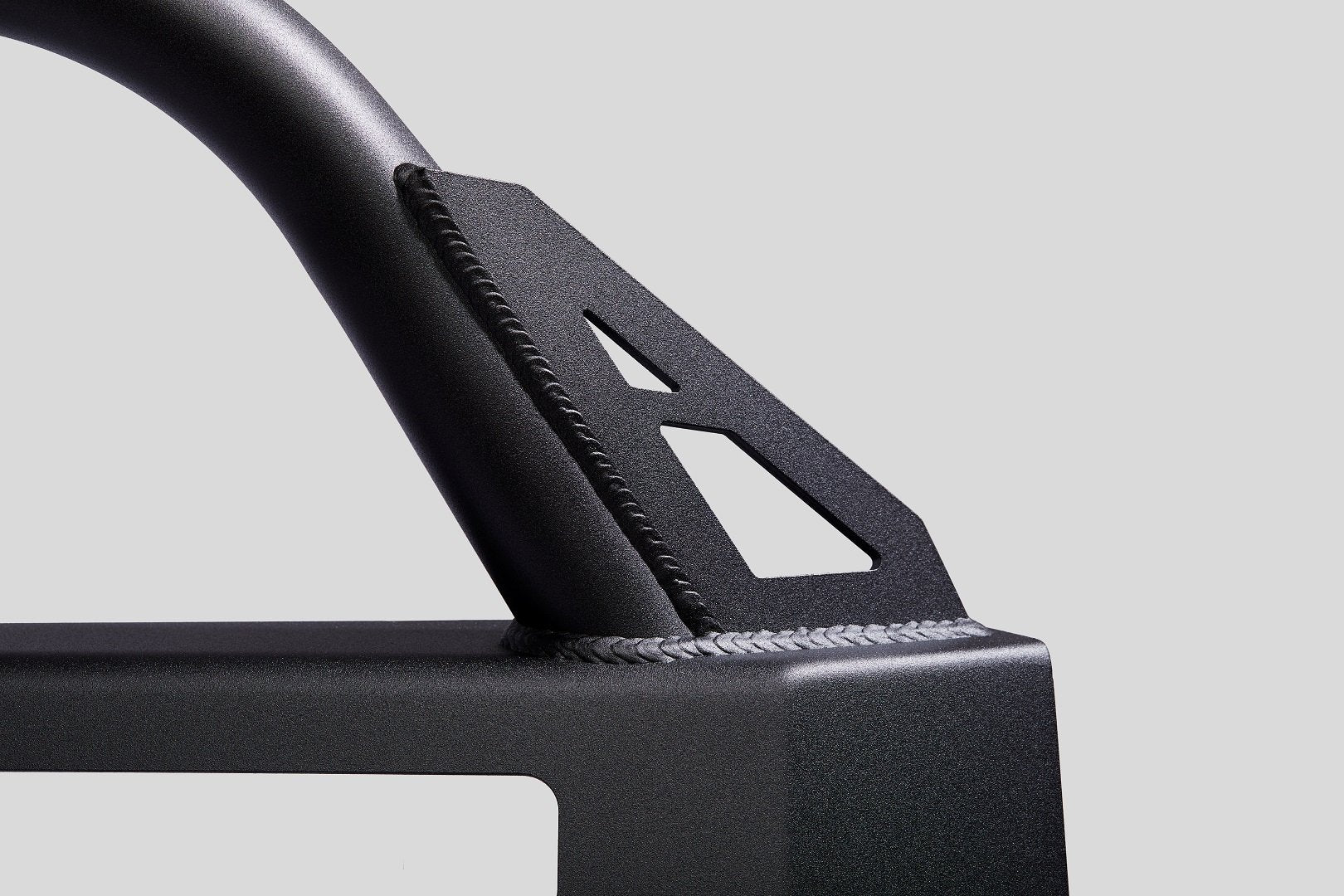

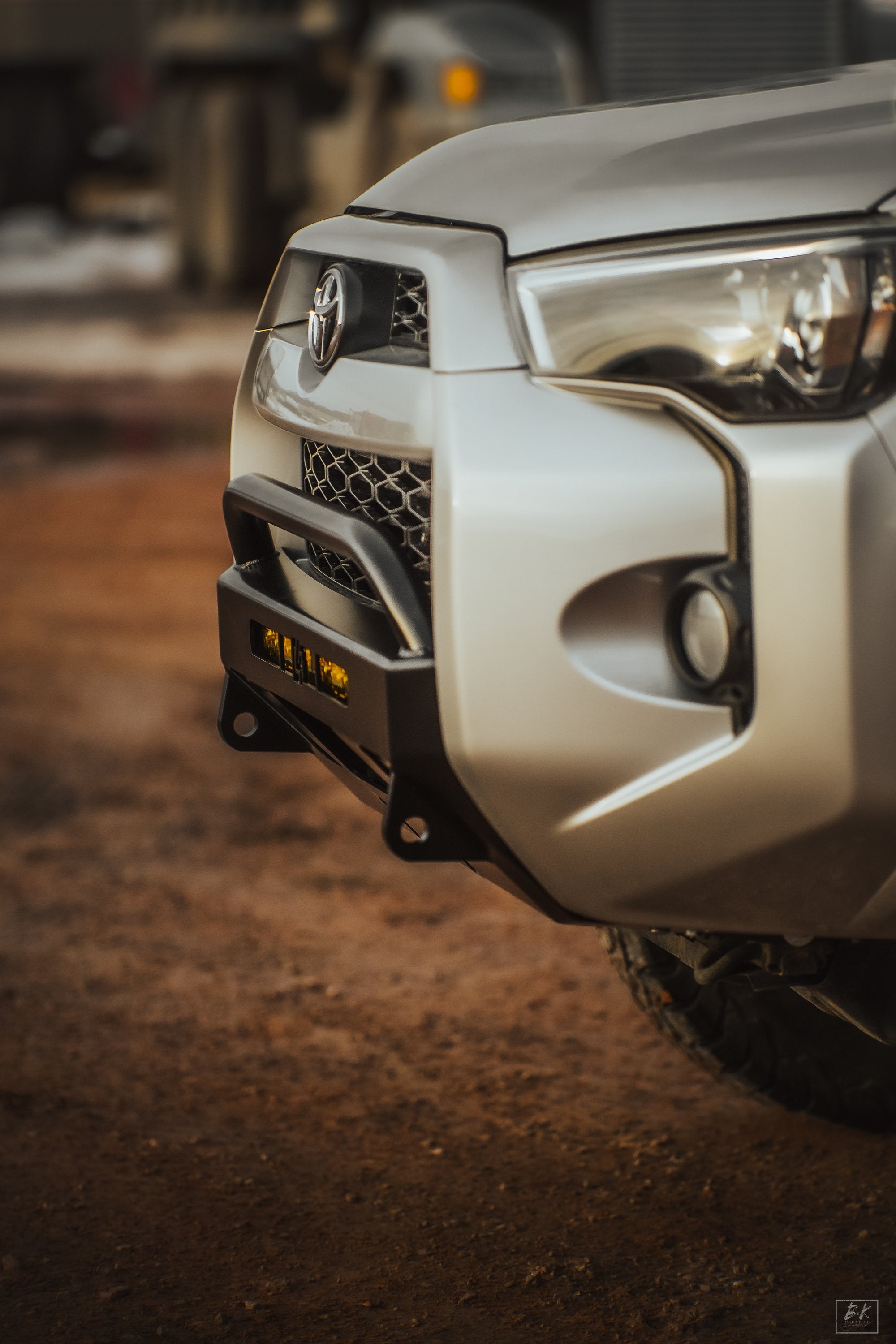

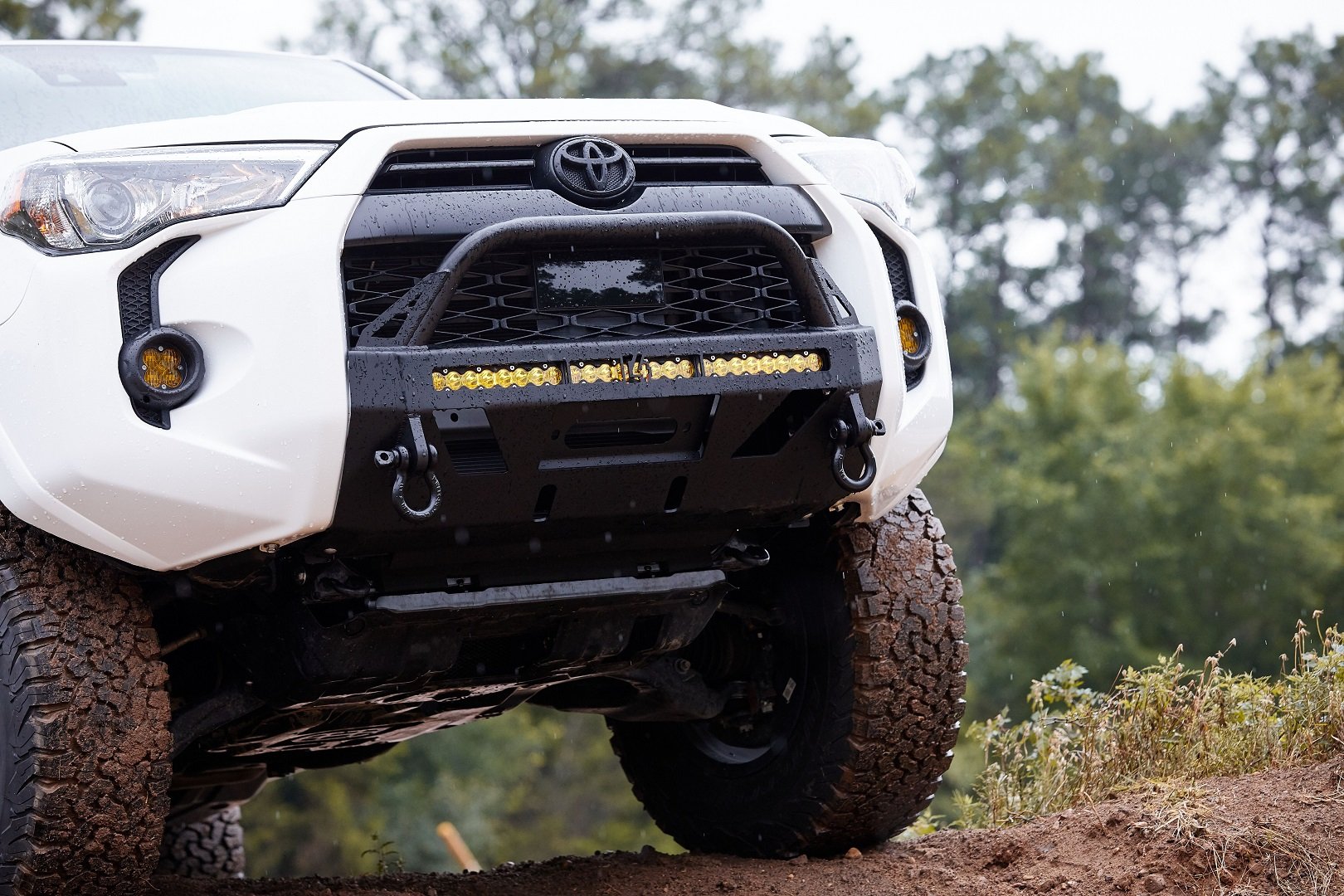

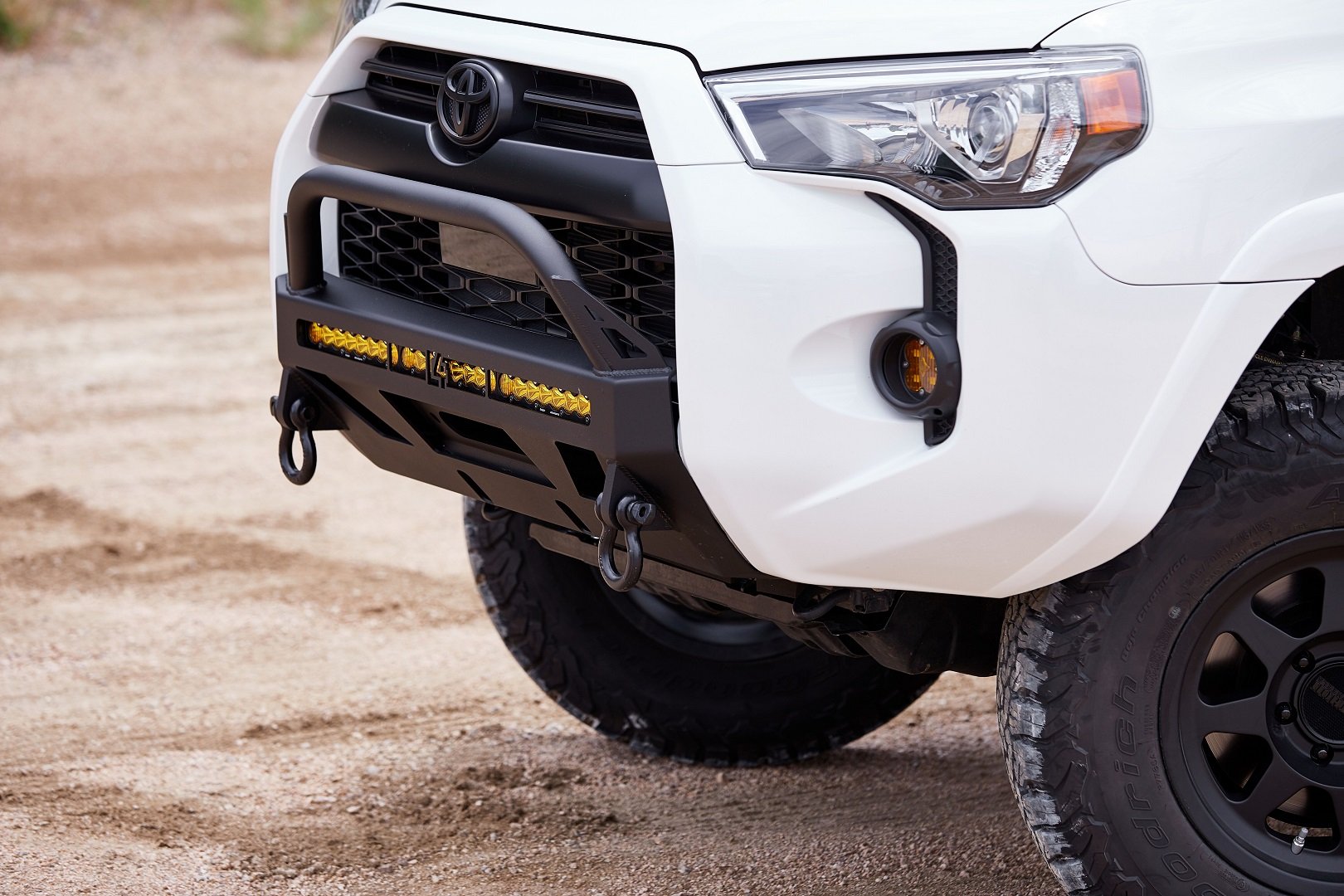

We have now verified that the Full Height Bull Bar DOES NOT interfere with TSS. The Mid height bull bar definitely will block the TSS sensor and cause a malfunction.
Bumper is not guaranteed to fit different brand/sizes of single row LED lights.

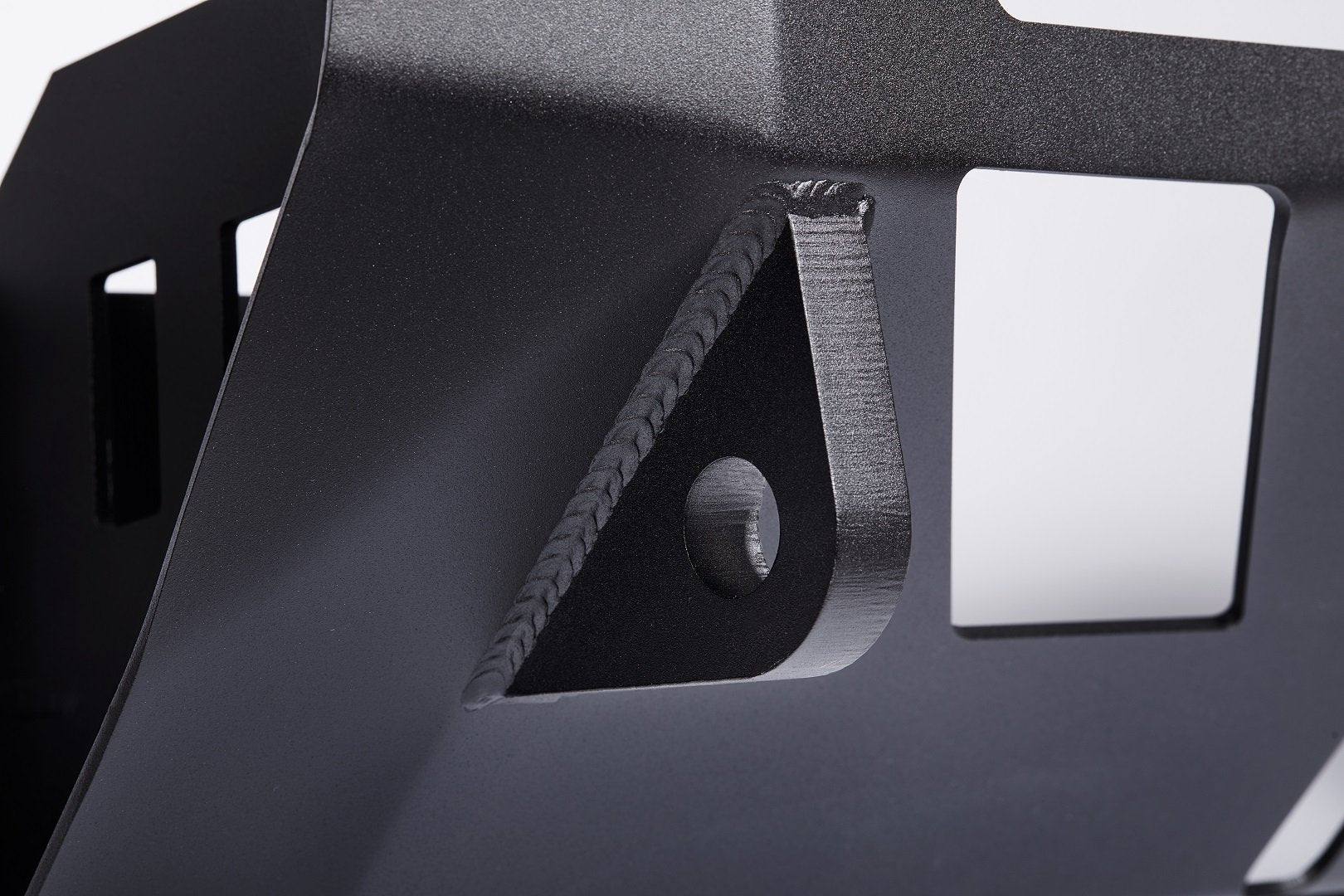

CNC cut and press brake bent from 3/16″ P&O steel.
Fits all ’14 and up 4Runner’s except the Limited model.

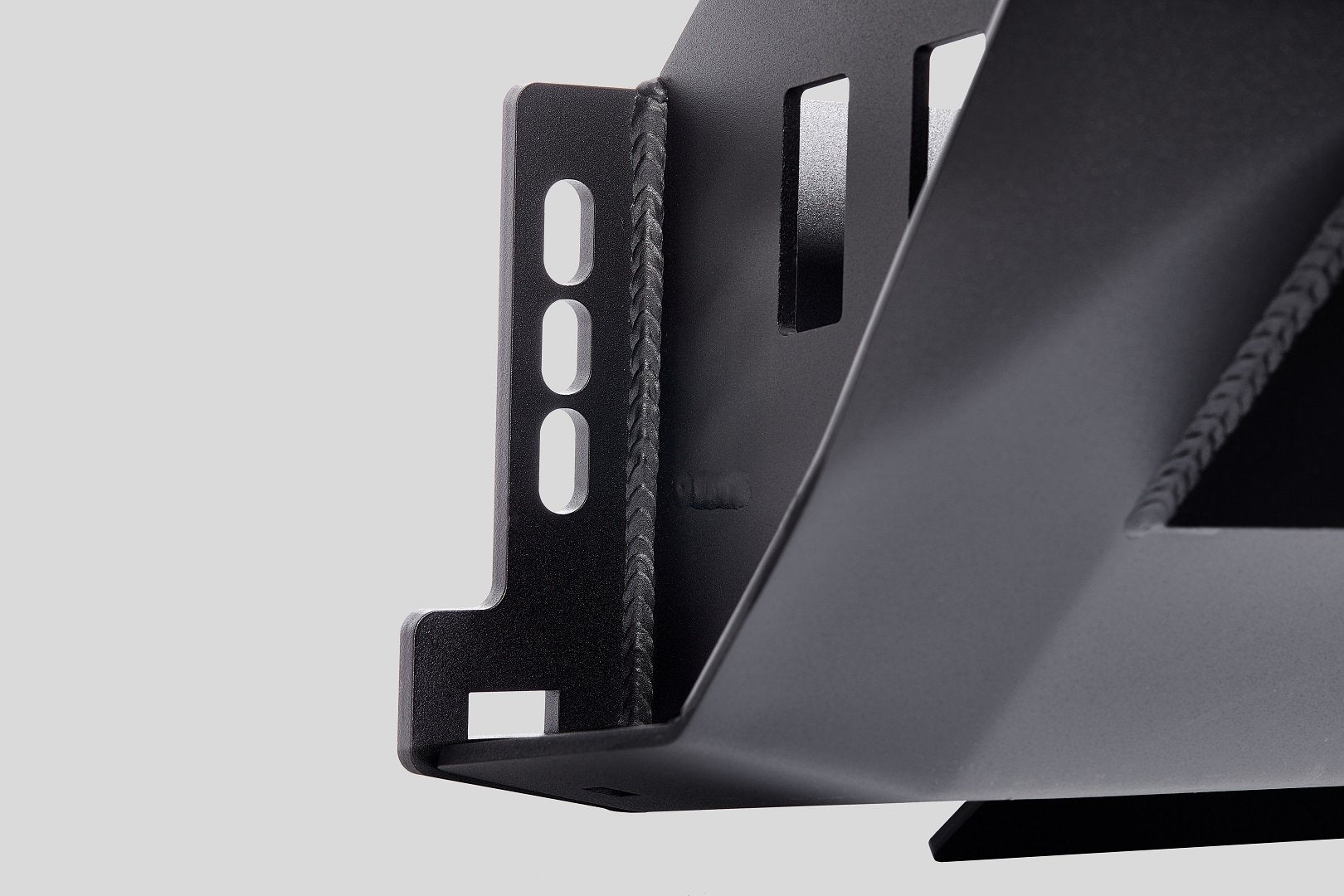

Comes with all mounting brackets and hardware needed for install.
Product ships bare steel, we do not offer powder coating at this time.
Product will be shipped through FedEx ground home delivery or to a commercial address if one is provided.

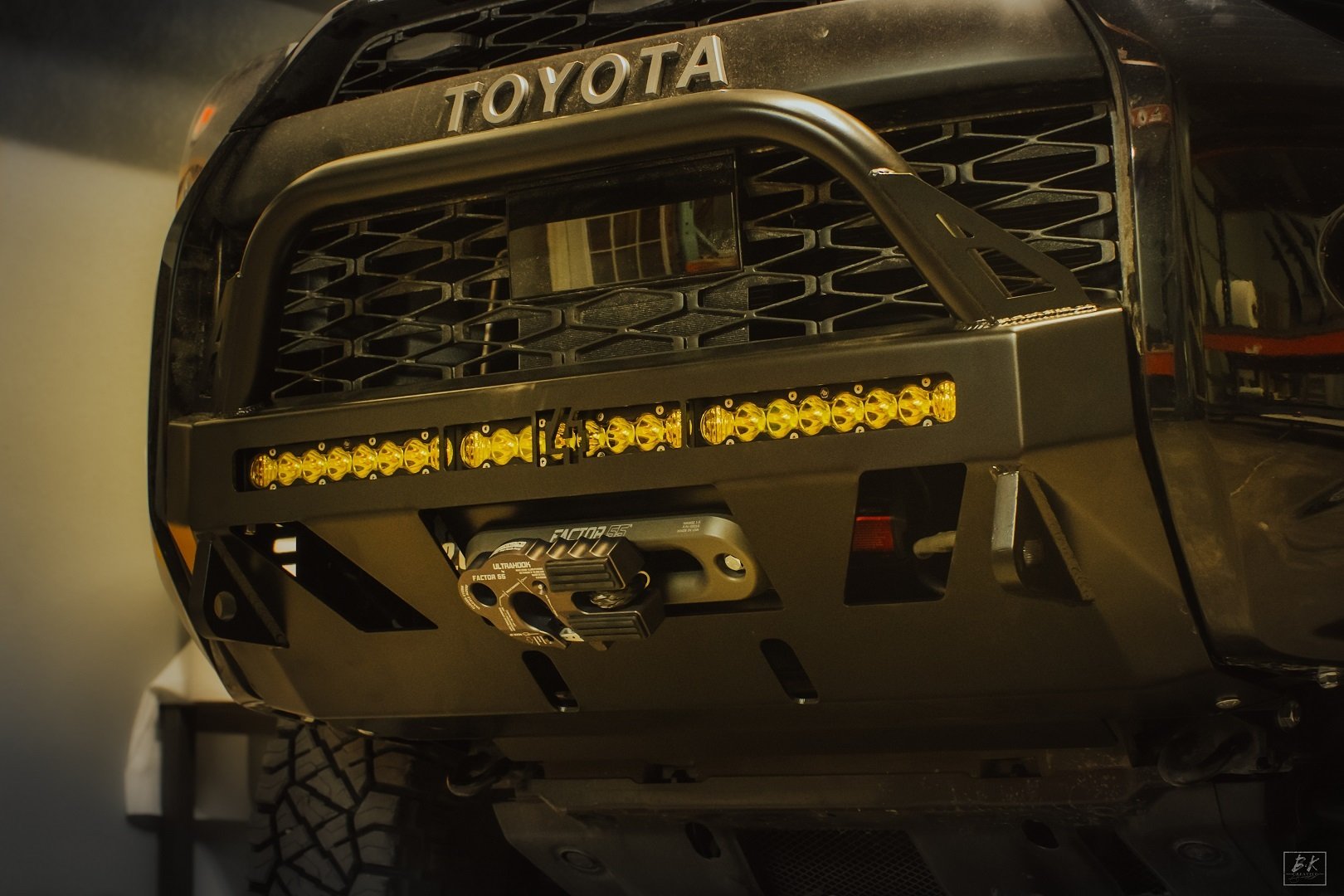

Fits most winches 8k-12k in size. Winches with the ability to relocate the electrical control box are recommended. Integrated control box winches may require some trimming of the grille support brackets to fit.(ComeUp, Smittybilt X20, Warn Zeon and VR series are all common winches that fit).
We recommend using winches with synthetic rope and a hawse style fairlead for the best fitment and functionality. Some roller fairleads may be too large to fit the recessed fairlead mounting plate in the bumper.
Cutting of the center plastic portion of the factory bumper cover is required to install the bumper.
