VIAIR | 400H Hardmount Compressor (40042)
Quantity:
SELECT OPTIONS
Quantity:

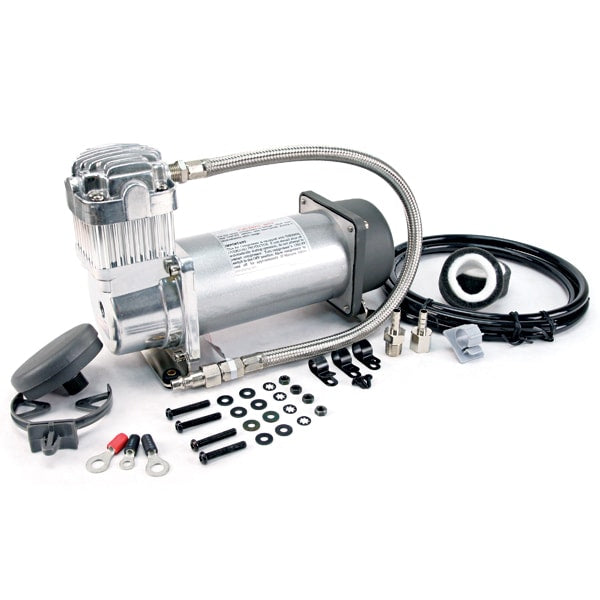

400H is a hardmount compressor that pumps a massive 2.30 CFM flow at zero PSI head pressure. The 400H comes with a built-in, moisture resistant ON/OFF power switch. Features include a heavy duty stainless steel leader hose with a 1/4” quick connect stud for hookup to a coil hose and insulated wiring for simple installation.
Additional Info Download:
| FEATURES |
|---|
| – Thermal Overload Protector |
| – Check Valve |
| – Vibration Isolators |
| – Mounting Hardware |
| – 1/4″ Quick Connect Stud |
| – Stainless Steel Braided Leader Hose |
| – Air Line for Remote Mount Air Filter |
| – Remote Mount Air Filter Assembly |
| – (2) Replacement Air Filter Elements |
| – Installation Instructions |
| SPECIFICATIONS |
|---|
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 33% @ 100 PSI |
| – Max. Working Pressure: 150 PSI |
| – Max. Amp Draw: 30 Amps |
| – Ingress Protection Rating: IP54 |
| – Dimensions: 10.08″L x 3.94″W x 6.75″H |
| – Net Weight: 8.95 lbs. |
| – |
| – |
* For 12V Only.
Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
FILL RATES
| 31” X 10.5” | FILL RATE |
|---|---|
| 0 to 30 PSI | 3 min. 00 sec. (± 10 sec.) |
| 15 to 30 PSI | 1 min. 35 sec. (± 05 sec.) |
| 33″ X 12.5″ | FILL RATE |
| 0 to 30 PSI | 4 min. 20 sec. (± 10 sec.) |
| 15 to 30 PSI | 2 min. 05 sec. (± 05 sec.) |
| 35″ X 12.5″ | FILL RATE |
| 0 to 30 PSI | 5 min. 20 sec. (± 15 sec.) |
| 15 to 30 PSI | 2 min. 45 sec. (± 10 sec.) |
* Due to redundant restrictions added to apparatus for flow rate testing, actual flow rate at 0 psi may vary.
* Supply Voltage: 13.8 Volts
