HERETIC STUDIO | 40" Amber Curved LED Light Bar
Beam Pattern
SELECT OPTIONS
Beam Pattern
Beam Pattern
40” Performance and aesthetics:
Overview
Shipping Time: 3-4 Weeks

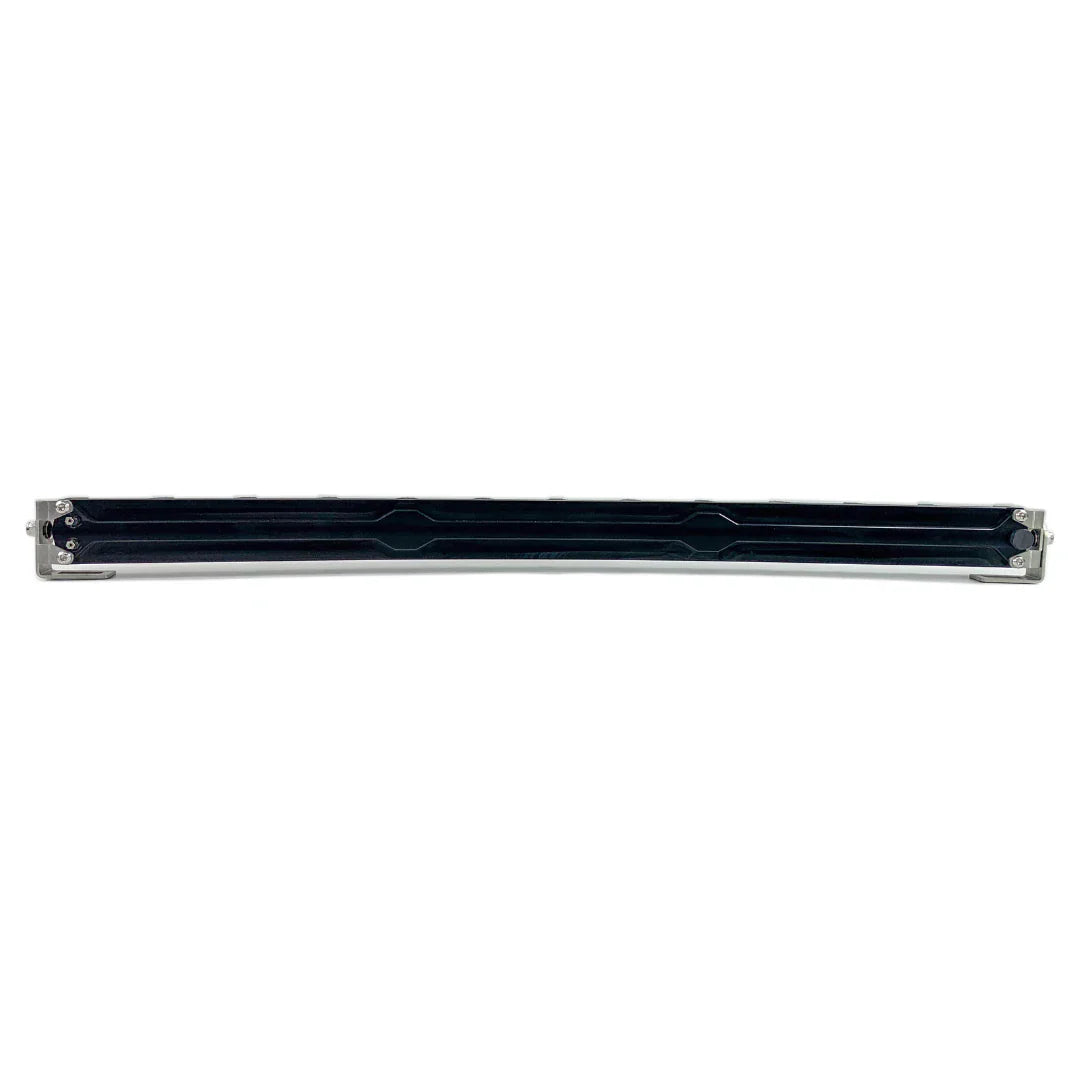

The Heretic 40" Amber Curved LED light bar is a beast of a light when it comes to LED light bars. It truly turns darkness into light. This high performance 6-series curved amber LED light bar is housed in CNC machined aircraft-grade aluminum, and outfitted with best-in-class circuit boards that allow temperature control and long-lasting light. The 40” Amber Curved LED light bar is recommended for forward-facing applications in aftermarket roof racks like PRINSU and UTV roll cages. This light bar is best optimized for foggy and dusty conditions. With bracket included this becomes a 42" Amber Curved LED Light Bar.
Features
- USA Patented 6061 CNC Aluminum Grade Billet Housing
- (40) 6-watt CREE LED
- IP68 rated Stainless Steel Mounts
- Designed, Assembled, Supported, and Shipped in Centerville,Utah
- Customize Your Beam Pattern: Combo, Spot, or Flood
- Customize Your Bezel - Contact Heretic Studio
Vehicle Application
Typically forward-facing placement for UTV roll cages that have a curved design. Requires aftermarket mount.
Parts Sold Separately
- Wiring Harness
- Aftermarket Mount for Roof Rack Attachment
Details/Specs
Shipping Weight: 8lbsType: 40” LED Light Bar
Housing: CNC Aircraft-Grade Aluminum
Location: Roof, Bumper, Grille, Rack
Light Color: White
Lens Color: Clear
Wattage: 240W
Amp Draw at 13.8V: 25.4A
Voltage: 9V-36V
IP Rating: IP68
DIM (Light Only): L 41” x D 1.5” x H 2”
DIM (Light W/ Bracket): L 42” x D 1.5” x H “2.4
Lumens: 30,000 lm
Lux At 10m:
- Spot: 8250 lx
- Flood: 1755 lx
- Combo: 5652 lx
- Spot: 825000 cd
- Flood: 1175500 cd
- Combo: 565200 cd
- Spot: 1817 m
- Flood: 838 m
- Combo: 1504 m
Prop 65: No
SAE/ECE: No
