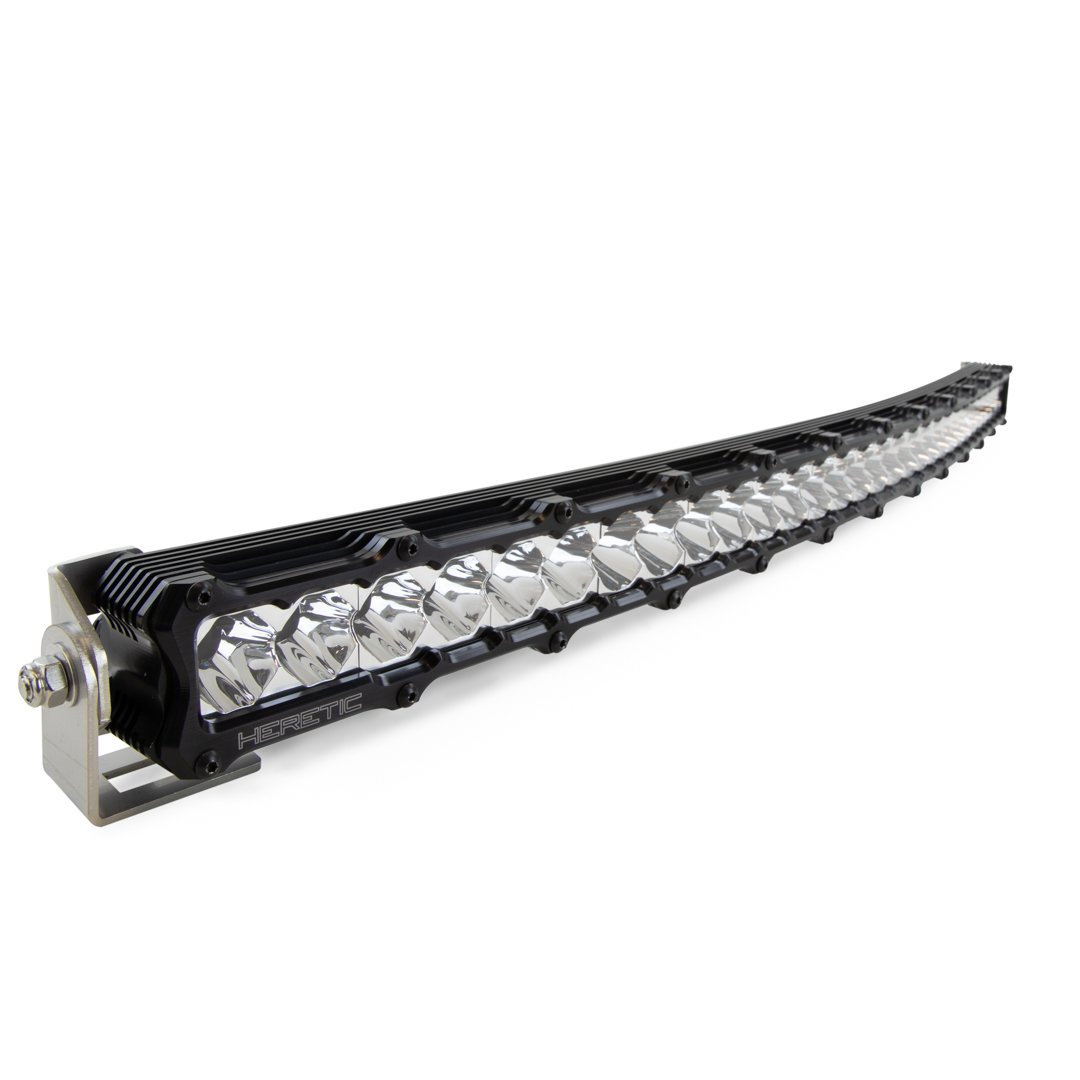

studio shot of a 30 inch led light bar

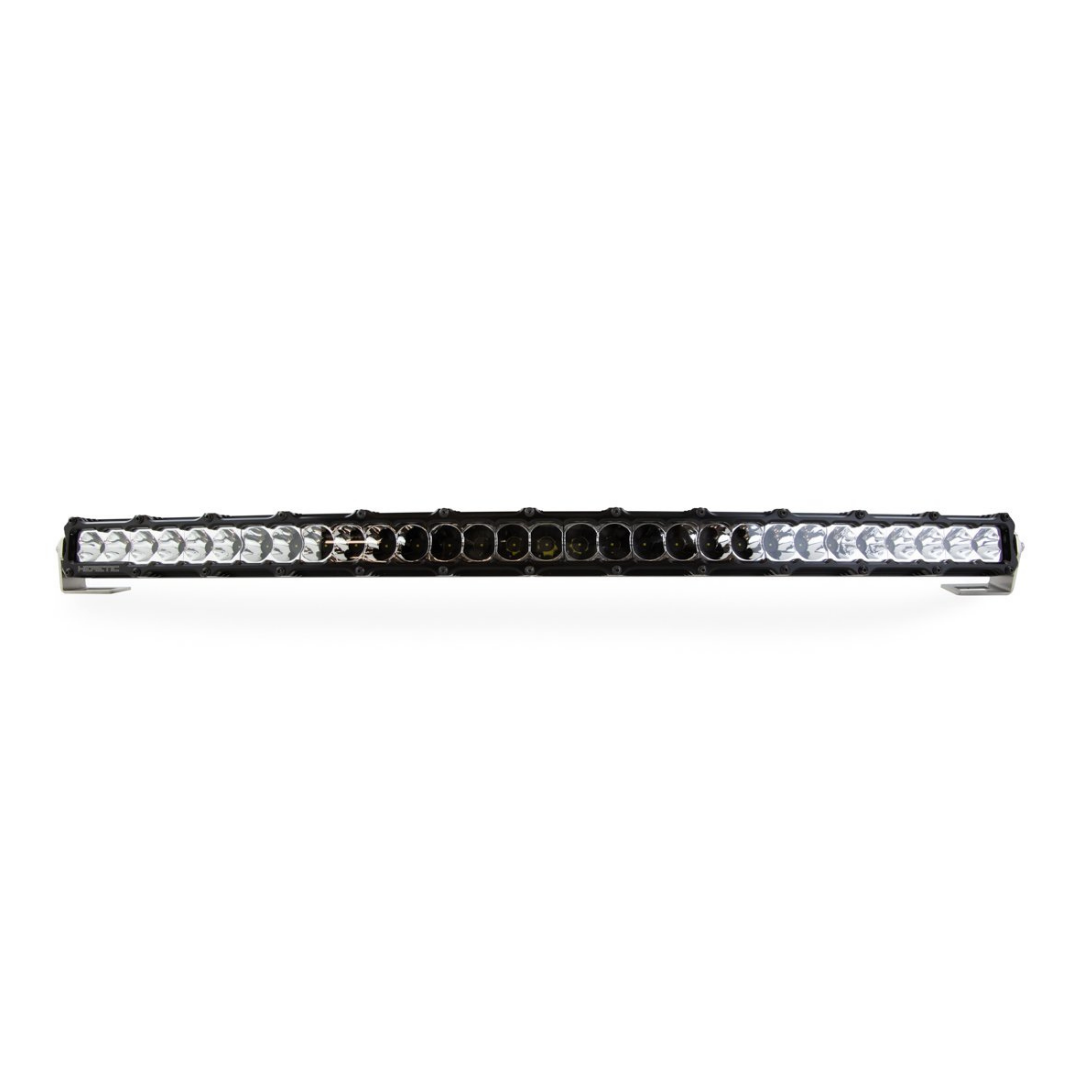

studio shot of a 30 inch led light bar

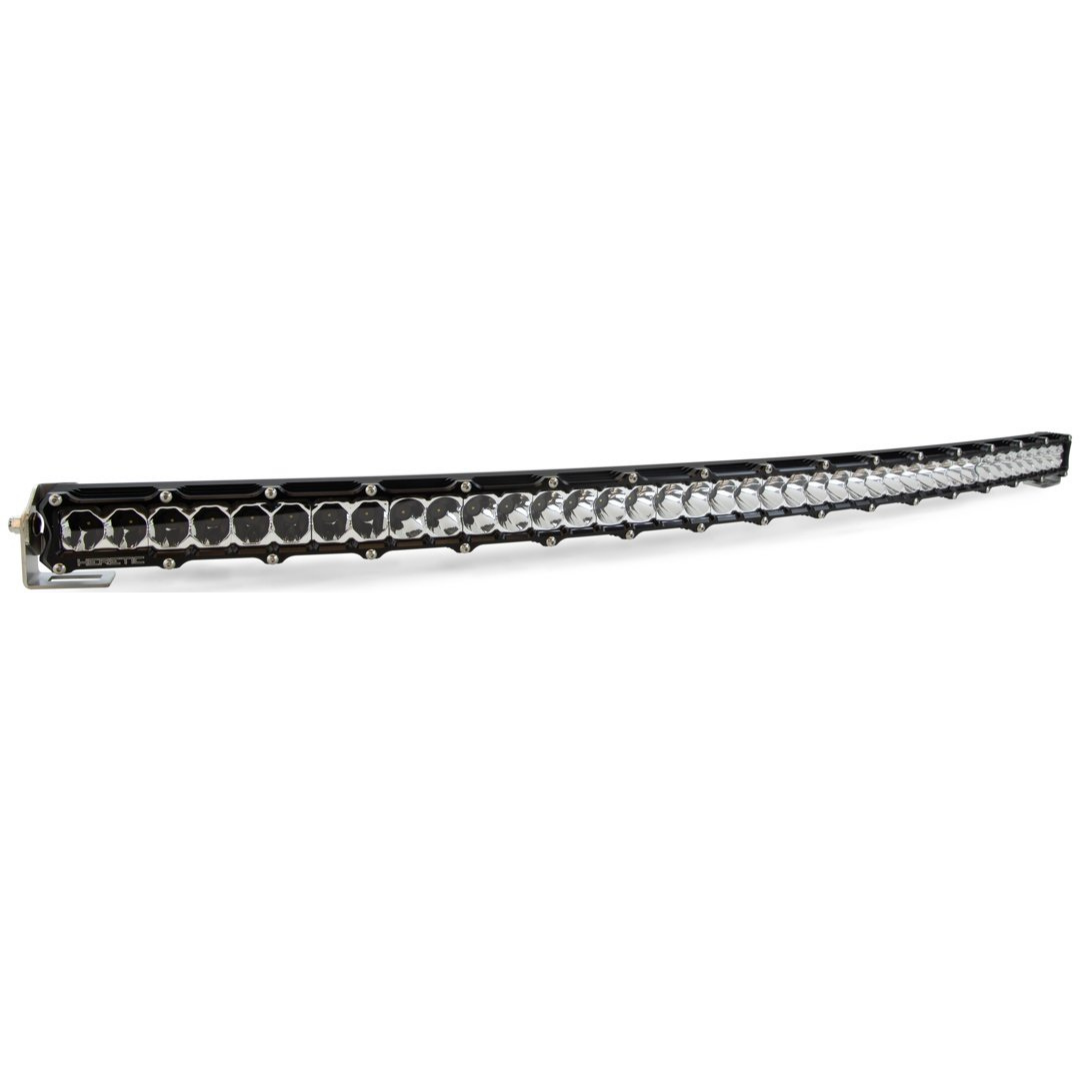

studio shot of a 30 inch led light bar

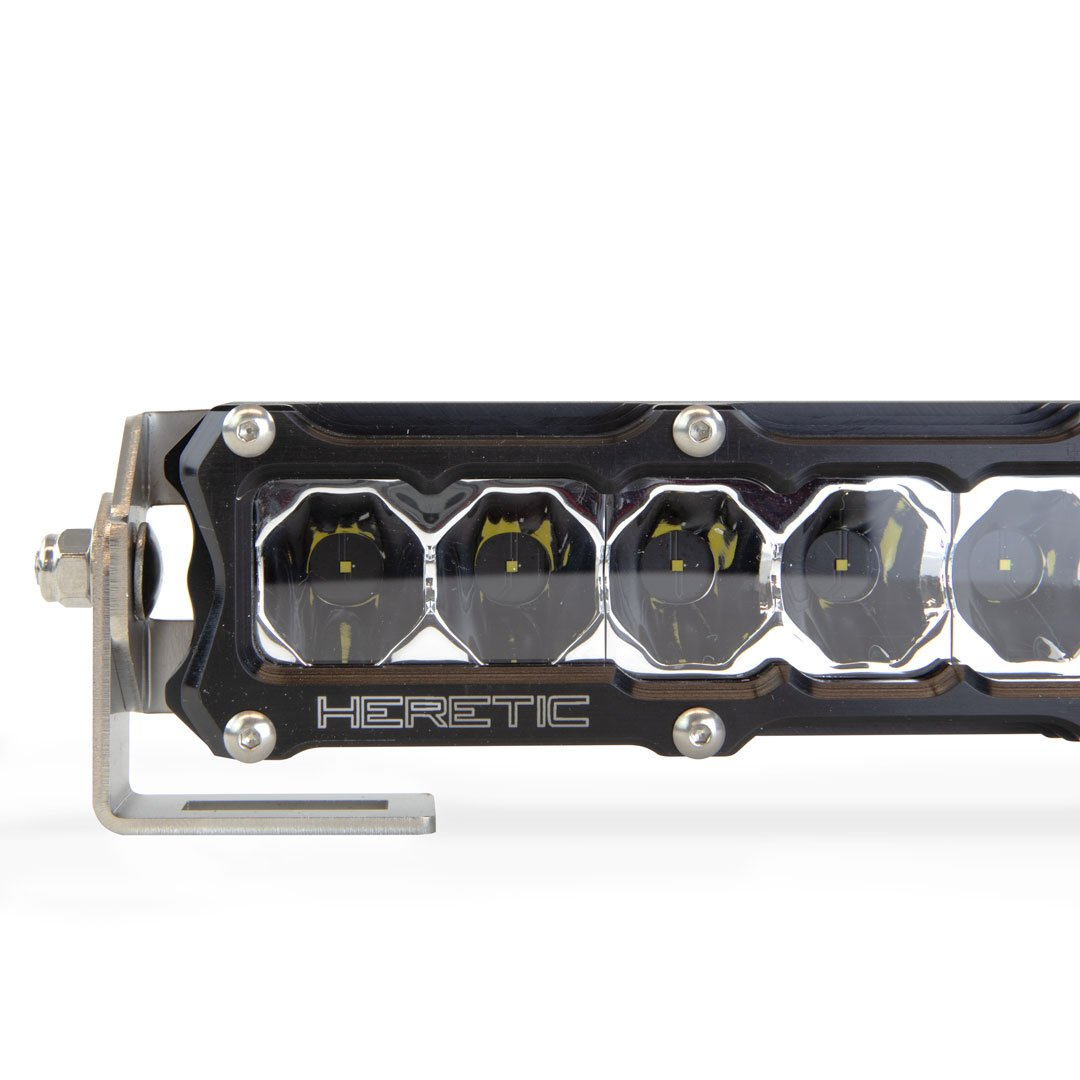

close up studio shot of a 30 inch led light bar

HERETIC STUDIO | 30" Curved LED Light Bar

Sale price$774.99
Beam Pattern:

Beam Pattern

Quantity:

Overview

Shipping Time: 3-4 Weeks

The Heretic 30" Curved LED light bar is the biggest bang for your buck when it comes to LED light bars. These high performance 6-series curved clear LED light bars are housed in CNC machined aircraft-grade aluminum, and outfitted with best-in-class circuit boards that allow temperature control and long-lasting light. The 30” Curved LED light bar is recommended for forward-facing applications in aftermarket roof racks, UTV roll cages, and behind the grille of trucks and SUVs. It is specifically designed to align with the curve of your vehicle or UTV and requires an aftermarket mount. This light bar is best for visibility on clear night conditions.


Features

  • USA Patented 6061 CNC Aluminum Grade Billet Housing
    • (30) 6-watt CREE LED
    • IP68 rated Stainless Steel Mounts
    • Designed, Assembled, Supported, and Shipped in Centerville,Utah
    • Customize Your Beam Pattern: Combo, Spot, or Flood

    Vehicle Application

    Typically forward-facing placement for UTV roll cages. Can be used on factory truck bumpers as well to match the curve of the vehicle. Amber lens for dusty and foggy conditions. Requires aftermarket mount.

    Parts Sold Separately

    • Wiring Harness
    • Aftermarket Mount for Roof Rack Attachment
    • Amber Lens Attachment



    Details/Specs

    Shipping Weight: 5lbs
    Type: 30” LED Light Bar
    Housing: CNC Aircraft-Grade Aluminum
    Location: Roof, Bumper, Grille, Rack
    Light Color: White
    Lens Color: Clear
    Wattage: 180W
    Amp Draw at 13.8V: 17.9A
    Voltage: 9V-36V
    IP Rating: IP68
    DIM (Light Only): L 31” x D 1.5” x H 2”
    DIM (Light W/ Bracket): L 32” x D 1.5” x H “2.4
    Lumens: 21780 lm
    Lux At 10m:
    • Spot: 6188 lx
    • Flood: 1316 lx
    • Combo: 4239 lx
    Candela:
    • Spot: 618750 cd
    • Flood: 131625 cd
    • Combo: 423900 cd
    Beam Distance:
    • Spot: 1573 m
    • Flood: 726 m
    • Combo: 1302 m
    DOT Compliant: No
    Prop 65: No
    SAE/ECE: No
