GENESIS OFFROAD | 392 & Diesel Wrangler Dual Battery System - Under Seat (222-JLDG3-UNDERSEAT)
SELECT OPTIONS
Description
Installation Guide
Take a deeper look at the GEN 3 Power Hub
Bus Bars
Adding electrical accessories to your vehicle has never been easier! Devices connected to the bus bars run from the Aux battery and will not drain your cranking battery.
3 sizes of studs for connecting heavy wires like your winch, stereo amps, fuse boxes, etc. Connect smaller ring terminals to the small screws.
Boost Switch
Auto - Connects the batteries automatically based on their voltage level
On - Manually connects the batteries together just like jumper cables to help start the engine
Off - Manually separates the batteries
G Screen Port
Plug in our optional G Screen Monitoring System with a single cable to keep an eye on your system.
Under Seat View

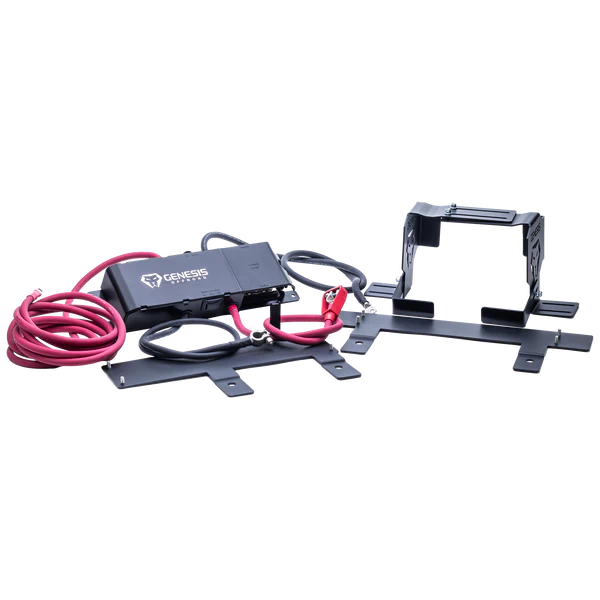

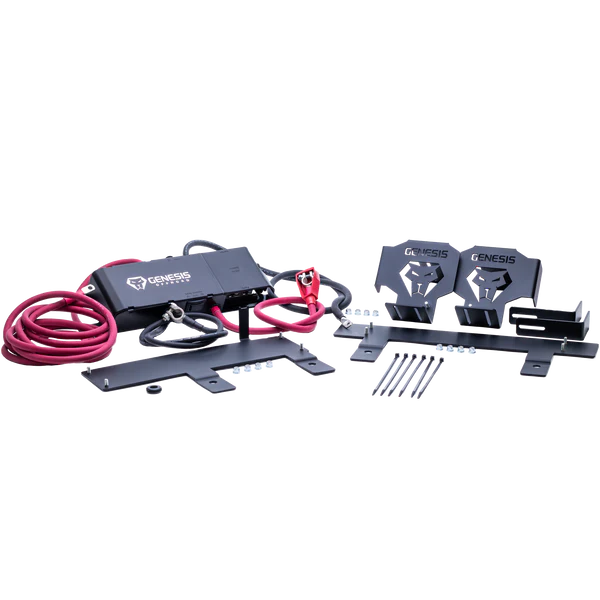

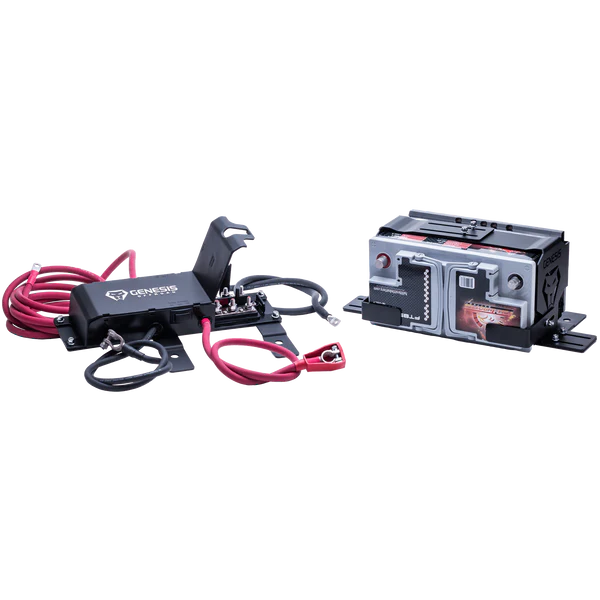

INCLUDED IN THE BOX

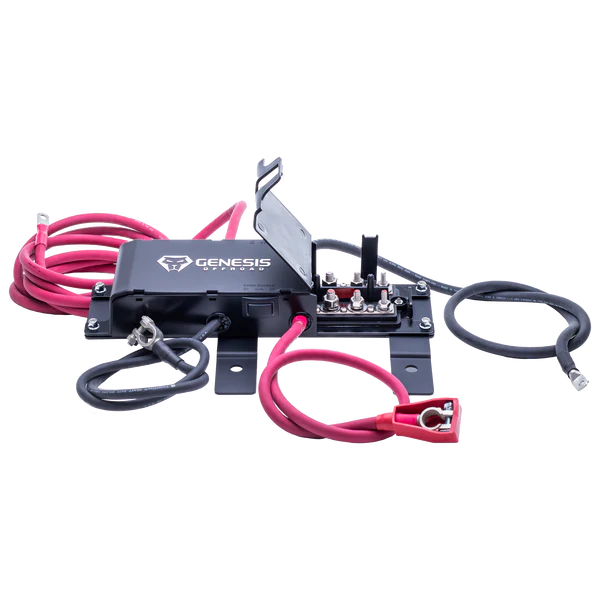

Gen 3 Power Hub
Pre-wired, heavy duty battery combiner that allows your engine's alternator to charge your cranking and accessory batteries.
Hardware
Includes everything you need for an easy installation.

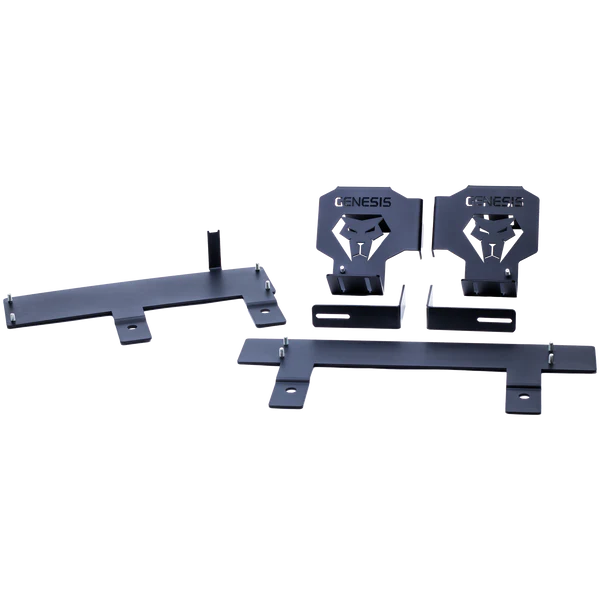

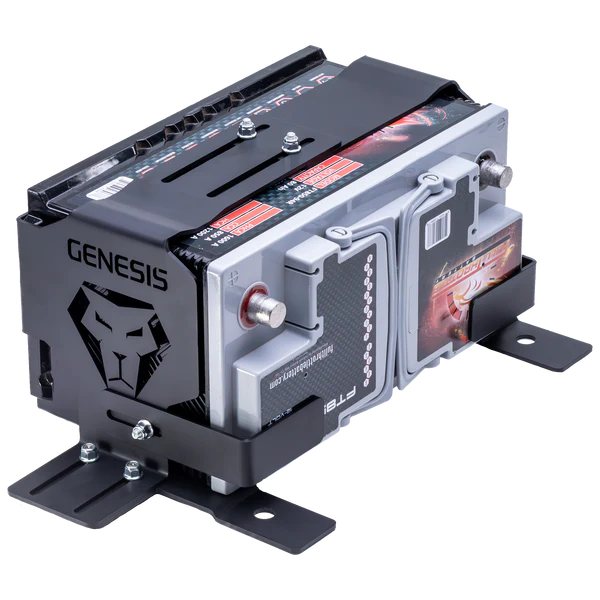

Adjustable Battery Brackets
Holds a wide range of battery sizes, from Group 35 up to a Group 31.
Power Hub Mount
Battery Bracket Mount
How It Works
The heart of the system is a smart battery combiner that handles connecting / disconnecting the batteries automatically.
When the engine starts, it allows the engine to charge the cranking battery first, then links the batteries together in parallel so they can both be charged by the alternator.
Once it sees the voltage drop below ~12.7v for a minute, it will separate the batteries. Your accessories connected to the bus bars continue to run from the second battery and won't drain your cranking battery.
Battery Size Options
Since there is no room under the hood for an extra battery, this kit keeps the stock batteries under the hood, and the new Aux battery is mounted under the back seat. There are several sizes that will fit in our adjustable battery brackets under the back seat. The battery needs to be approx. 6.8" deep. Some commonly used sizes include Group numbers 35, 34R, 94R, and the largest battery that will fit is a Group 27F. The 27F is shown in our installation video and it is a very tight fit. The Group 94R has almost as much capacity as the 27F but it is a little easier to install under the seat, especially on the 392.
Bus Bar Sizes
The Positive and Negative bus bars have 3 different size studs - - 3/8", 5/16", and 1/4" diameter for heavy cables for a winch, air compressor, fuse box, etc, and three #10 screws for attaching smaller ring terminals for your low amp accessories such as small LED lights.
