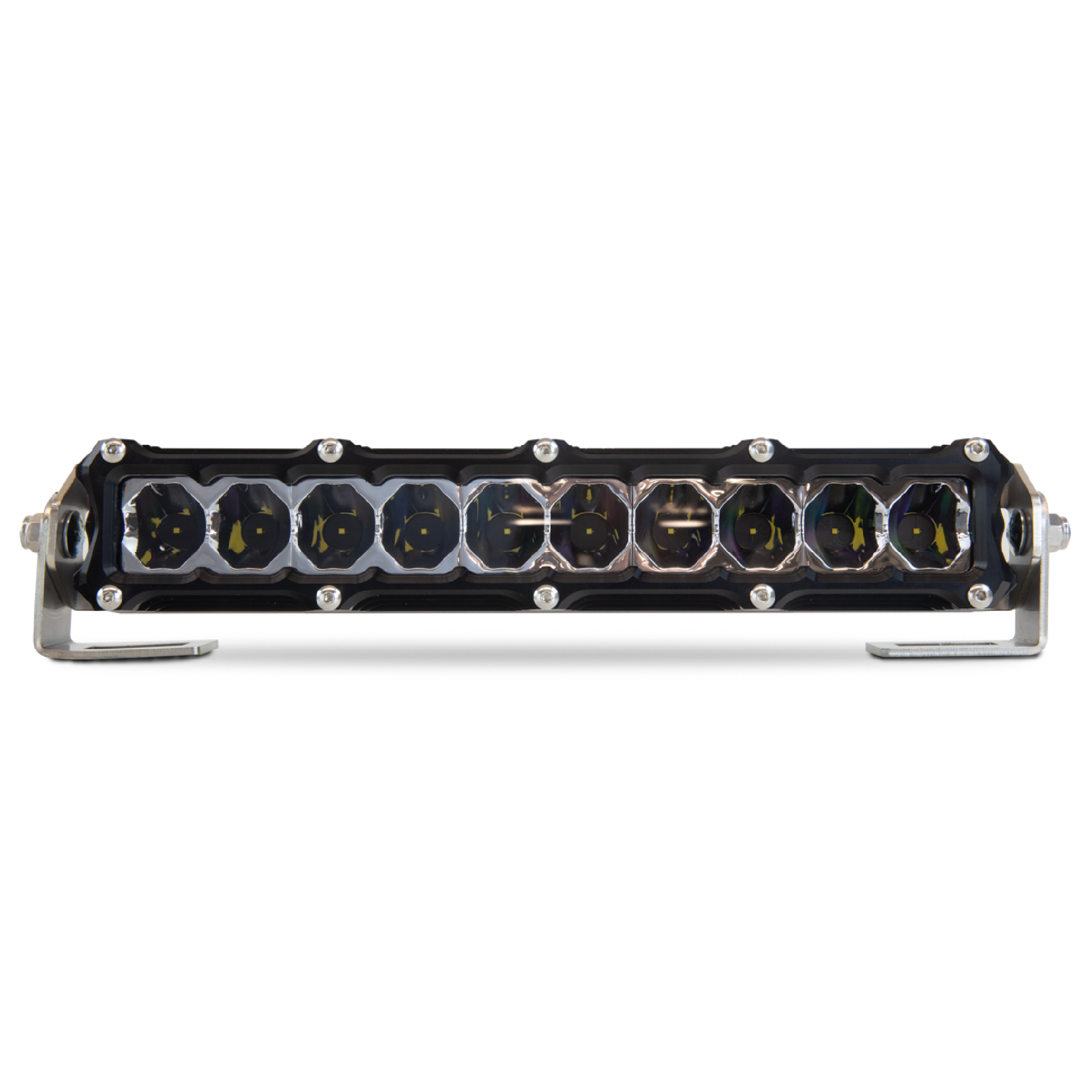

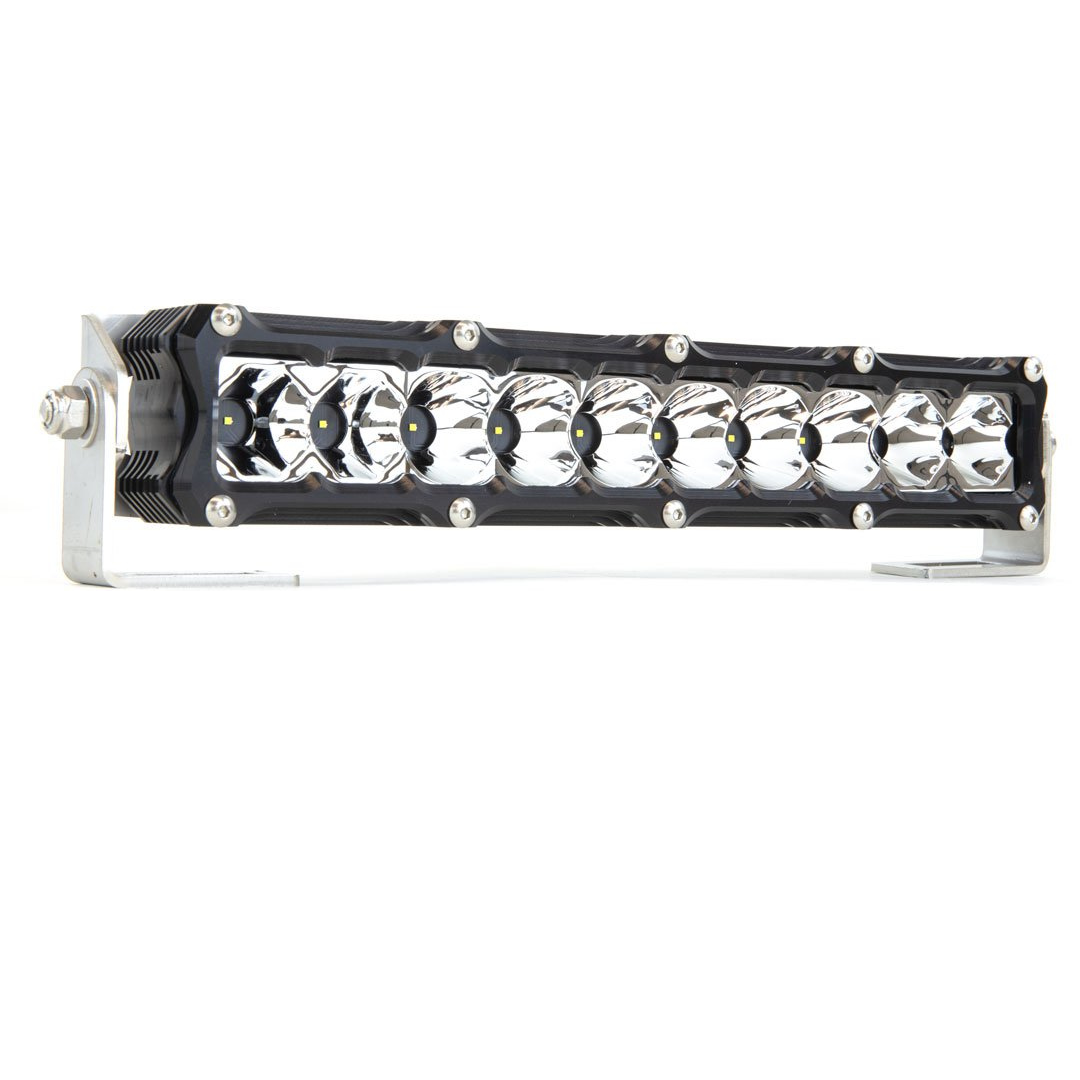

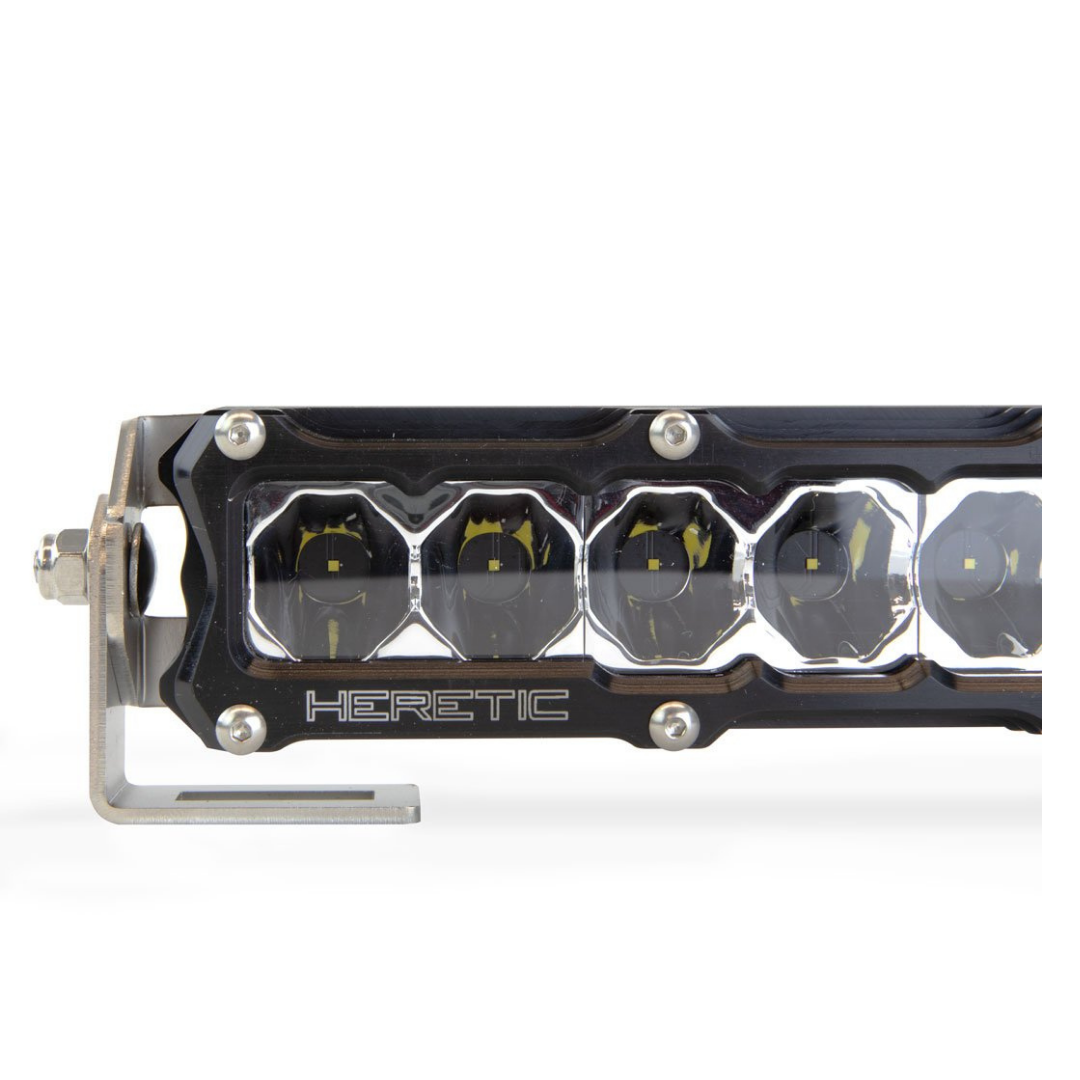

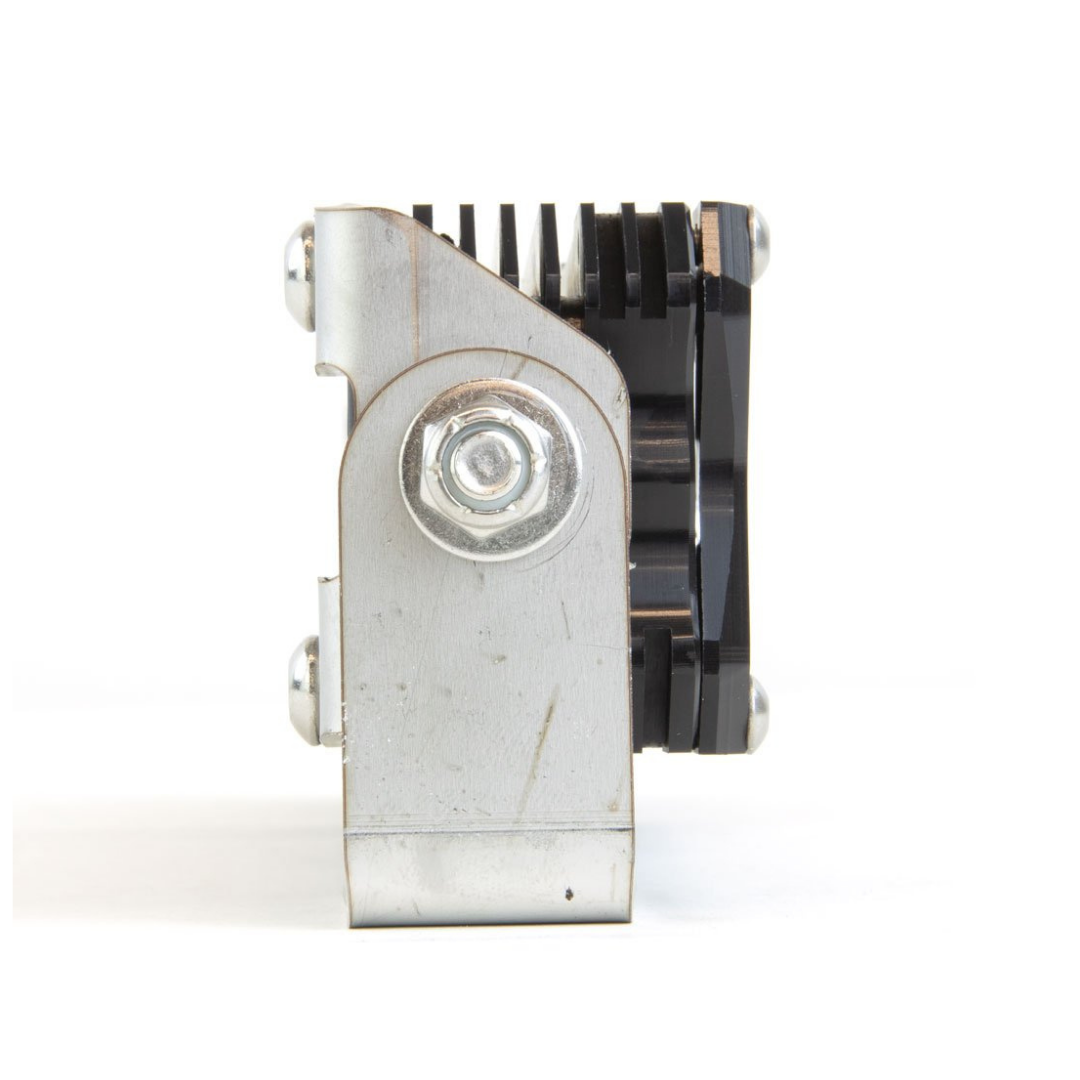

HERETIC STUDIO | 10" LED Light Bar
Beam Pattern
SELECT OPTIONS
Beam Pattern
Beam Pattern
Overview
Shipping Time: 3-4 Weeks
The Heretic 10" LED light bar is built for off-road. Housed in CNC machined aircraft-grade aluminum, and outfitted with best-in-class circuit boards that allow temperature control and long-lasting light. The 10” LED light bar is recommended as a roof light, bumper light, grille light or rack light. Its specifically optimized for clear night conditions. With the bracket this becomes at 12" LED Light Bar.
Features
- USA Patented 6061 CNC Aluminum Grade Billet Housing
- (10) 6-watt CREE LED
- IP68 rated Stainless Steel Mounts
- Designed, Assembled, Supported, and Shipped in Centerville,Utah
- Choose Your Beam Pattern: Combo, Spot, or Flood
- Custom Bezel Offerings - Contact Heretic Studio
Parts Sold Separately
- Wiring Harness
- Aftermarket Mount for Roof Rack Attachment
- Amber Lens Attachment
Details/Specs
- Shipping Weight: 4lbs
- Type: 10” LED Light Bar
- Housing: CNC Aircraft-Grade Aluminum
- Location: Roof, Bumper, Grille, Rack
- Light Color: White Lens Color: Clear
- Wattage: 60W
- Amp Draw at 13.8V: 5.3A
- Voltage: 9V-36V
- IP Rating: IP68
- DIM (Light Only): L 11” x D 1.5” x H 2”
- DIM (Light W/ Bracket): L 12” x D 1.5” x H “2.4
- Lumens: 7260 lm
-
Lux At 10m:
- Spot: 2063 lx
- Flood: 439 lx
- Combo: 1413 lx
Candela:
- Spot: 206250 cd
- Flood: 43875 cd
- Combo: 141300 cd
Beam Distance:
- Spot: 908 m
- Flood: 419 m
- Combo: 752 m
DOT Compliant: No
Prop 65: No
SAE/ECE: No
