VICTRON ENERGY | Lynx Smart BMS

Description

Note: Not for use with Victron Lithium NG batteries, that model is linked below as a related product.

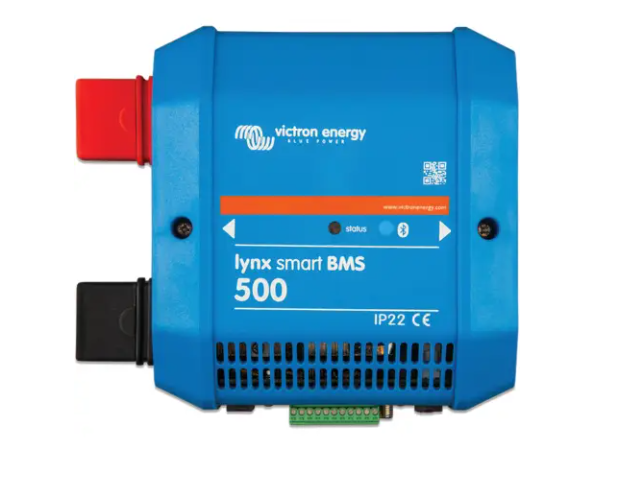

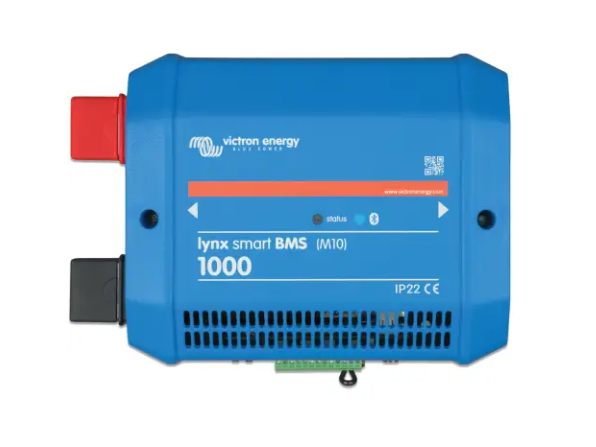

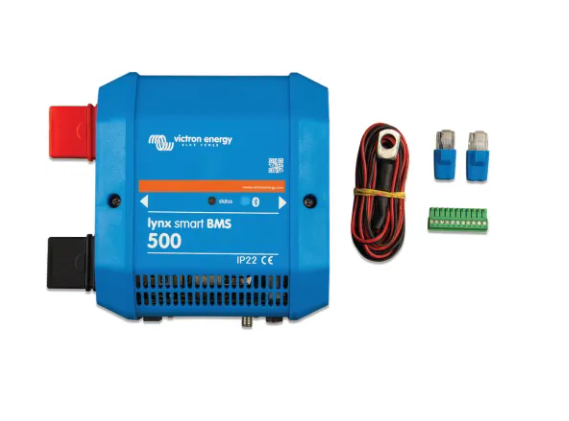

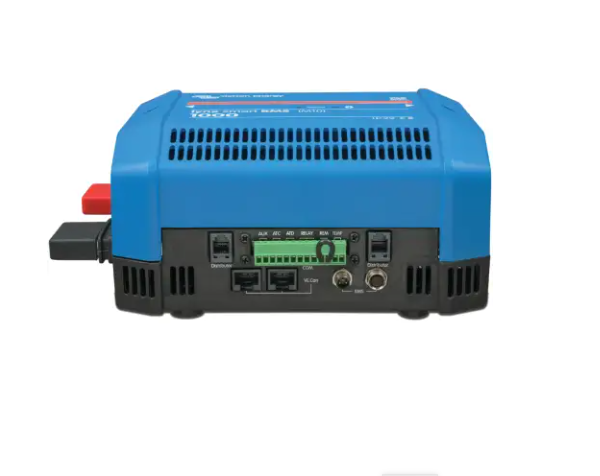

The Lynx Smart BMS is a dedicated Battery Management System for Victron Lithium Smart Batteries. There are multiple BMS-es available for our Smart Lithium series of batteries, and the Lynx Smart is the most feature rich and complete option. Its main features are:
• Built-in 500A or 1000A contactor, used as a fall-back safety mechanism and also available as a remote controllable main systems switch
• Battery monitor, indicating state of charge percentage and more data.
• Pre-alarm signal: provide a warning before the system shuts down due to -for example- a low cell.
• Bluetooth for use with our VictronConnect App, for setup and monitoring.
• Local and remote monitoring using a Victron GX device, for example the Cerbo GX.
• The Lynx Smart BMS is part of the modular Lynx Distribution system.
• Optional M8 or M10 busbar connections
