VIAIR | TLC® Dual 444c 200 PSI Onboard System (50044)
SELECT OPTIONS
Description

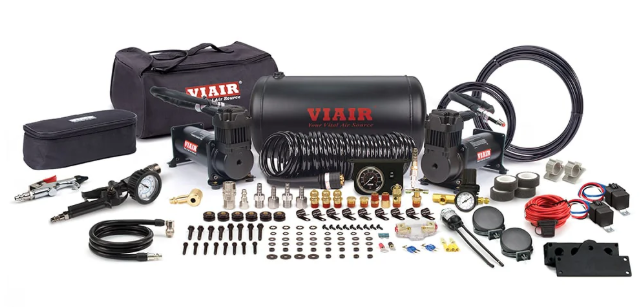

VIAIR's TLC Dual 444C Onboard Air System is a pre-packaged compressed air solution that provides two Stealth Black 444C, 100% duty cycle compressors, a 1.5 gallon air tank, TLC shop-style inflator, Presta inflator head, and all necessary components needed to install a working system, useful for multiple pneumatic applications.
Specifications
SPECS:
12-Volt
Permanent Magnetic Motor
Duty Cycle: 100% @ 100 PSI (50% @ 200 PSI)
Max. Working Pressure: 200 PSI
Max. Air Tank Size: 10.0 Gallon
Combined Max. Amp Draw: 46-Amps
Ingress Protection Rating: IP67

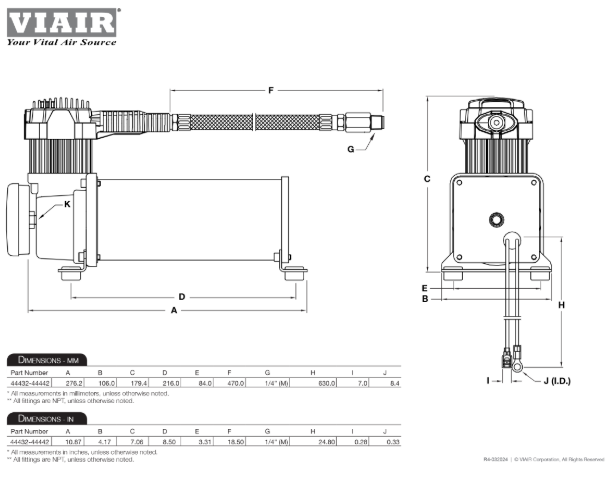

Dimensions: 10.87″L x 4.2″W x 7.06″H (Each Unit)
FEATURES:
(2) 444C Stealth Black Air Compressors
w/Thermal Overload Protectors
Intercooler Head (Patents Pending)

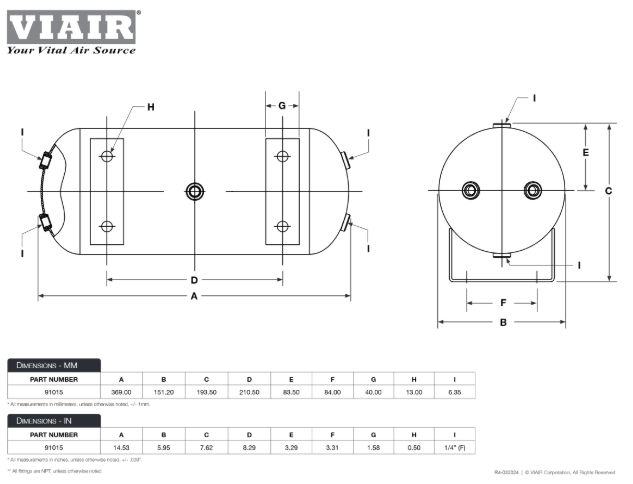

1.5 Gallon Matte Black VIAIR Air Tank
Illuminated Dash Panel Gauge Kit, Black Face
Sealed Pressure Switch (165 PSI on, 200 PSI off)
(2) 40-Amp Sealed 4-Prong Relays
Shop-Style Inflator with 160 PSI Gauge
w/ Fully Rebuildable Presta Head Attachment
(2) 30ft. Coil Hose with Quick Connect and Stud
45° Extended Reach Dually Chuck
90° 40in. Twist-On Air Hose Chuck
Rubber Tipped Blow Gun
Air Source Relocation Kit
(2) Air Filter Housing w/ Replacement Air Filter Elements
VIAIR Storage Bag
PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
Performance
12-Volt Compressor - Supply Voltage 13.8 Volts
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 3.53 | 25 | 0 | 100.0 | 25 |
| 10 | 3.25 | 27 | 1.0 | 88.5 | 29 |
| 20 | 2.97 | 3 | 2.0 | 81.3 | 33 |
| 30 | 2.86 | 33 | 3.0 | 75.6 | 34 |
| 40 | 2.72 | 34 | 4.0 | 70.6 | 36 |
| 50 | 2.58 | 35 | 5.0 | 65.5 | 37 |
| 60 | 2.47 | 36 | 6.0 | 59.0 | 39 |
| 70 | 2.35 | 37 | 7.0 | 53.1 | 40 |
| 80 | 2.19 | 38 | 8.0 | 47.7 | 39 |
| 90 | 2.03 | 39 | 9.0 | 43.2 | 39 |
| 100 | 1.90 | 40 | 10.0 | 38.8 | 38 |
| 110 | 1.74 | 40 | 11.0 | 34.7 | 37 |
| 120 | 1.65 | 39 | 12.0 | 30.6 | 36 |
| 130 | 1.53 | 39 | 13.0 | 25.8 | 34 |
| 140 | 1.41 | 38 | 14.0 | 23.8 | 33 |
| 150 | 1.32 | 38 | |||
| 160 | 1.22 | 37 | |||
| 170 | 1.13 | 36 | |||
| 180 | 1.00 | 35 | |||
| 190 | 0.89 | 34 | |||
| 200 | 0.85 | 33 |
Fill Rates
TIRE FILL RATE
| 31×12.5 | FILL RATE |
|---|---|
| 0 to 30 PSI | 1 min. 02 sec. (± 05 sec.) |
| 15 to 30 PSI | 24 sec. (± 03 sec.) |
| 35×12.5 | FILL RATE |
| 0 to 30 PSI | 2 min. 11 sec. (± 05 sec.) |
| 15 to 30 PSI | 27 sec. (± 03 sec.) |
| 37×12.5 | FILL RATE |
| 0 to 30 PSI | 2 min. 31 sec. (± 10 sec.) |
| 15 to 30 PSI | 40 sec. (± 05 sec.) |
TANK FILL RATE
| 1.5 GALLON TANK | FILL RATE |
|---|---|
| 0 to 200 PSI | 1 min. 16 sec. (± 05 sec.) |
| 165 to 200 PSI | 18 sec. (± 03 sec.) |
MOUNTAIN BIKE TIRE FILL RATE
| 29"x2.1 | FILL RATE |
|---|---|
| 0 to 20 PSI | <3 sec. |
| 0 to 40 PSI | 3 sec. |
