VIAIR | Every Vehicle Carry® 88P Portable Compressor (00088)
SELECT OPTIONS
Description

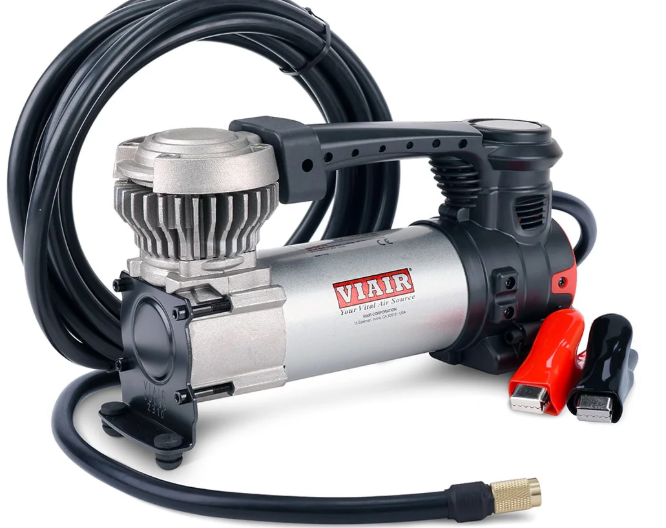

A compact and reliable compressor that can handle tires up to 33", now available in an updated digital version! The Every Vehicle Carry® 88P is our most popular medium-duty tire inflator, and it's ideal for new and experienced off-roaders looking for a fast and dependable unit that will not break the bank.
What’s in the Box
Compressor
Inflation Tips Kit
Carry Bag
Specifications
SPECS:
CFM: 1.97 @ 0 PSI
12-Volt
Permanent Magnetic Motor
Duty Cycle: 25 min. @ 30 PSI
Max. Working Pressure: 120 PSI
Max. Amp Draw: 20-Amps
Ingress Protection Rating: IP53
Max. Ambient Temp: +158°F
Min. Ambient Temp: -4°F

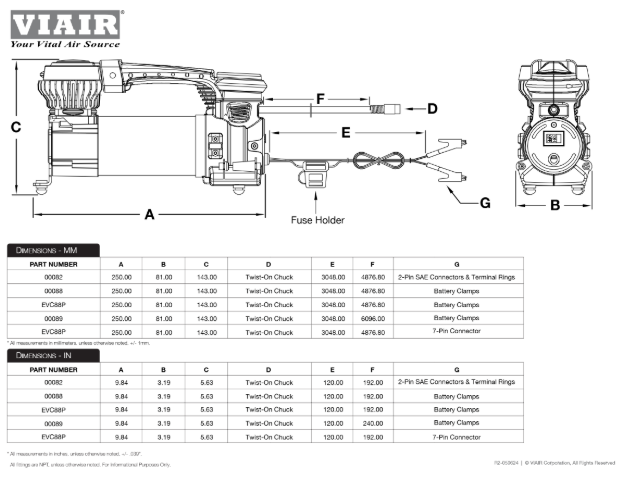

Dimensions: 9.8″L x 3.2″W x 5.6″H
Net Weight: 4.75 lbs.
Power Cord Length: 10 ft.
Air Hose Length: 16 ft.
FEATURES:

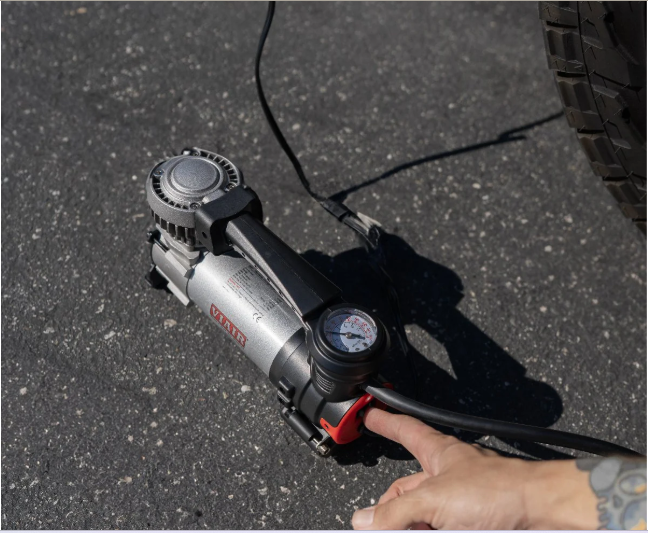

120 PSI Pressure Gauge
LED Work Light / Power Indicator

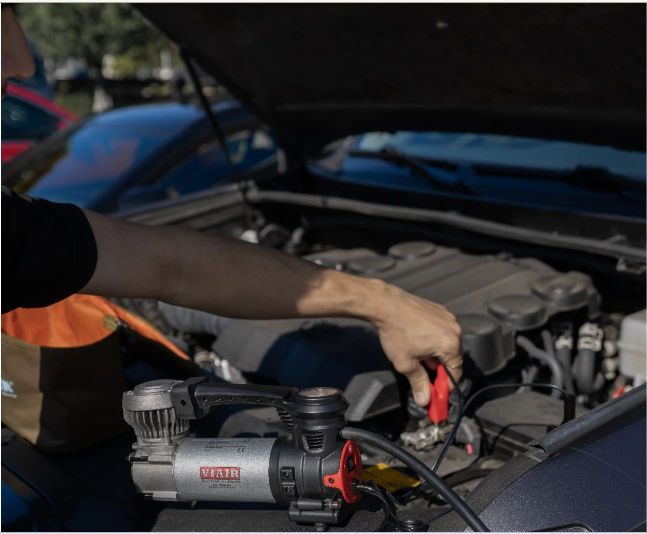

Dual Battery Clamps
Solid Brass Twist-on Tire Chuck
Deluxe Carry Bag
3 pc. Inflation Tips Kit*
Presta Valve Adaptor
*(Mounted above Rear Compressor Feet)
PLEASE NOTE:
Always check your vehicle’s power port rating for maximum amperage before ordering. The 88P does not work with Presta bicycle valves, unless used with a Presta Valve Adaptor. The 88P does not work with the VIAIR Winterization Kit (P/N 90145).
Performance
12-Volt Compressor - Supply Voltage 13.8 Volts
PSI | CFM | A | BAR | LMP | A |
---|---|---|---|---|---|
0 | 1.97 | 14 | 0 | 56.0 | 14 |
10 | 1.82 | 15 | 1.0 | 49.0 | 15 |
20 | 1.62 | 16 | 2.0 | 41.0 | 17 |
30 | 1.45 | 17 | 3.0 | 36.0 | 17 |
40 | 1.32 | 17 | 4.0 | 31.0 | 18 |
50 | 1.18 | 18 | 5.0 | 26.0 | 17 |
60 | 1.05 | 18 | 6.0 | 21.0 | 16 |
70 | 0.94 | 18 | 7.0 | 17.0 | 15 |
80 | 0.83 | 17 | 8.0 | 14.0 | 14 |
90 | 0.70 | 16 | |||
100 | 0.63 | 16 | |||
110 | 0.54 | 15 | |||
120 | 0.45 | 14 |
Fill Rates
TIRE FILL RATES
195/70R14 | FILL RATE |
---|---|
20 to 20 PSI | 35 sec. (± 05 sec.) |
30 to 40 PSI | 40 sec. (± 05 sec.) |
225/60R18 | FILL RATE |
20 to 30 PSI | 50 sec. (± 05 sec.) |
30 to 40 PSI | 1 min. 00 sec. (± 05 sec.) |
31″ X 10.5″ | FILL RATE |
0 to 30 PSI | 3 min. 50 sec. (± 10 sec.) |
15 to 30 PSI | 2 min. 05 sec. (± 05 sec.) |
33″ X 12.5″ | FILL RATE |
0 to 30 PSI | 5 min. 45 sec. (± 15 sec.) |
15 to 40 PSI | 2 min. 56 sec. (± 05 sec.) |
