WARN INDUSTRIES | Xd9i Winch
SELECT OPTIONS
Description

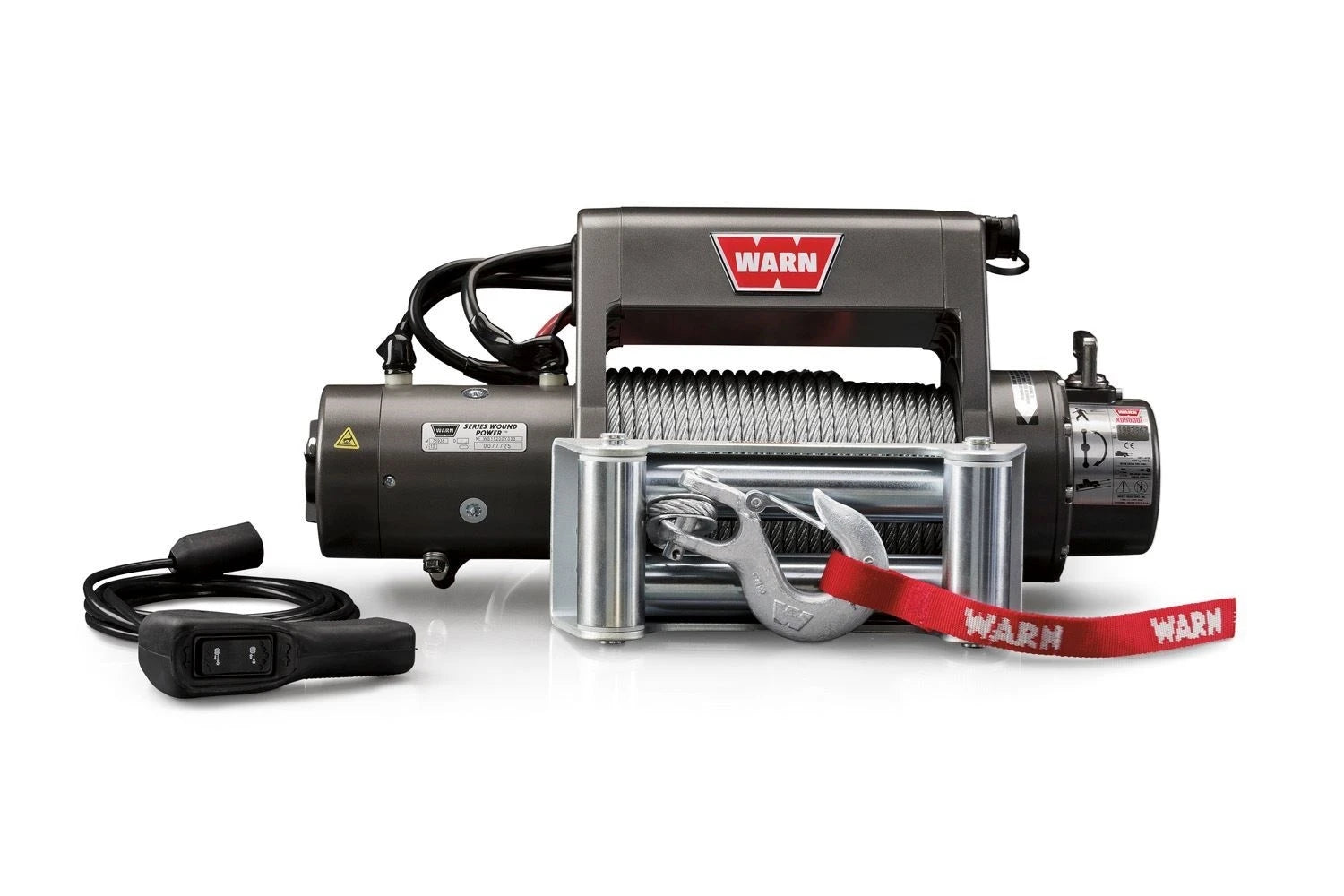

The XD9000i Series 12 volt electric Winch is vehicle mounted and has a pull capacity of 9,000 pound. It has a 125 feet wire rope.
You'll see more XD9000I Winches on trail rigs than any other winch. No load line speed of 38 Foot per Minute and three-stage planetary gearing and the ability to run cool with low ampere draw for long Winching cycles are just a few reasons why. The XD9000I features an integrated control pack and all metal housing, which protects the Winch's electrical components the way a roll cage protects you. Comes with 125' of 5/16" wire rope.
- Competition Grade Power, Speed And Reliability
- Pulling Capacity Up To 9,000 Pounds
- Three Stage Planetary Gearing
- Ability To Run Cool
- Low Ampere Draw
- Remote control with 12' (3.7m) lead
- Durable 5/16" (8mm) diameter galvanized steel wire rope.
- Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.
1989-1995 Toyota Pickup
Note: This Winch will require winch mount for proper installation. Please visit our Mounting & Protection category for available options.
Specifications
- Type: Electric
- Mount Type: Vehicle Mounted
- Recommended Use: Vehicle Recovery
- Voltage: 12 Volt
- Motor Horsepower: 4.6 Horsepower
- Electrical Control Type: Solenoid
- Motor Type: Series Wound
- Thermal Shutoff: No
- Drive Gear Type: Planetary
- Gear Reduction Ratio: 156:1
- Free Spooling: Yes
- Brake Type: Direct Drive Cone
- Line Diameter (In): 5/16 Inch
- Line Length (Ft): 125 Feet
- Line Material: Steel
- Fairlead Type: Roller
- Conforms To J706 Standards: No
- Remote Type: Handheld Remote Switch
- Mounting Hole Quantity: 4
- Operation Type: Automatic

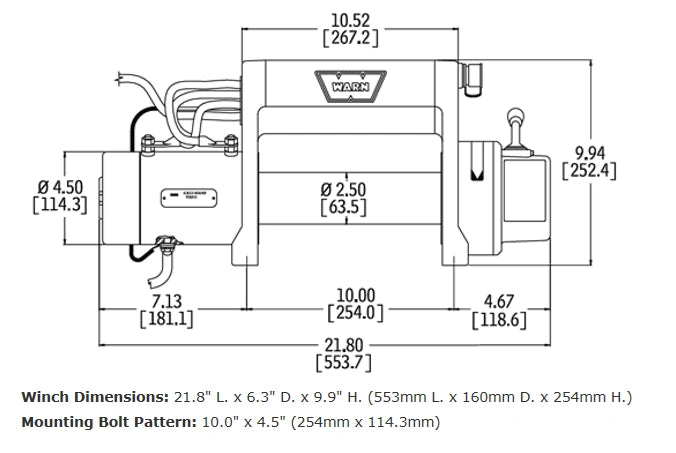

- Mounting Pattern Length (In): 10 Inch
- Mounting Pattern Width (In): 4-1/2 Inch
- Includes Mounting Hardware: No
- Color: Gray

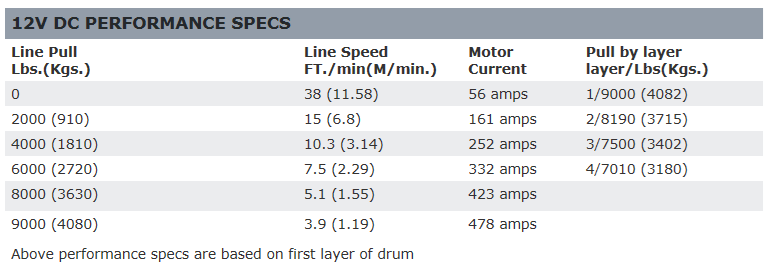

- Max Line Pull/ Line Speed: 9000 Pound/ 3.9 Feet Per Minute
- Max Amp Draw/ Line Pull 478 Amp Draw/ 9000 Pound
