WARN INDUSTRIES | M12-S Heavyweight Winch
SELECT OPTIONS
Description

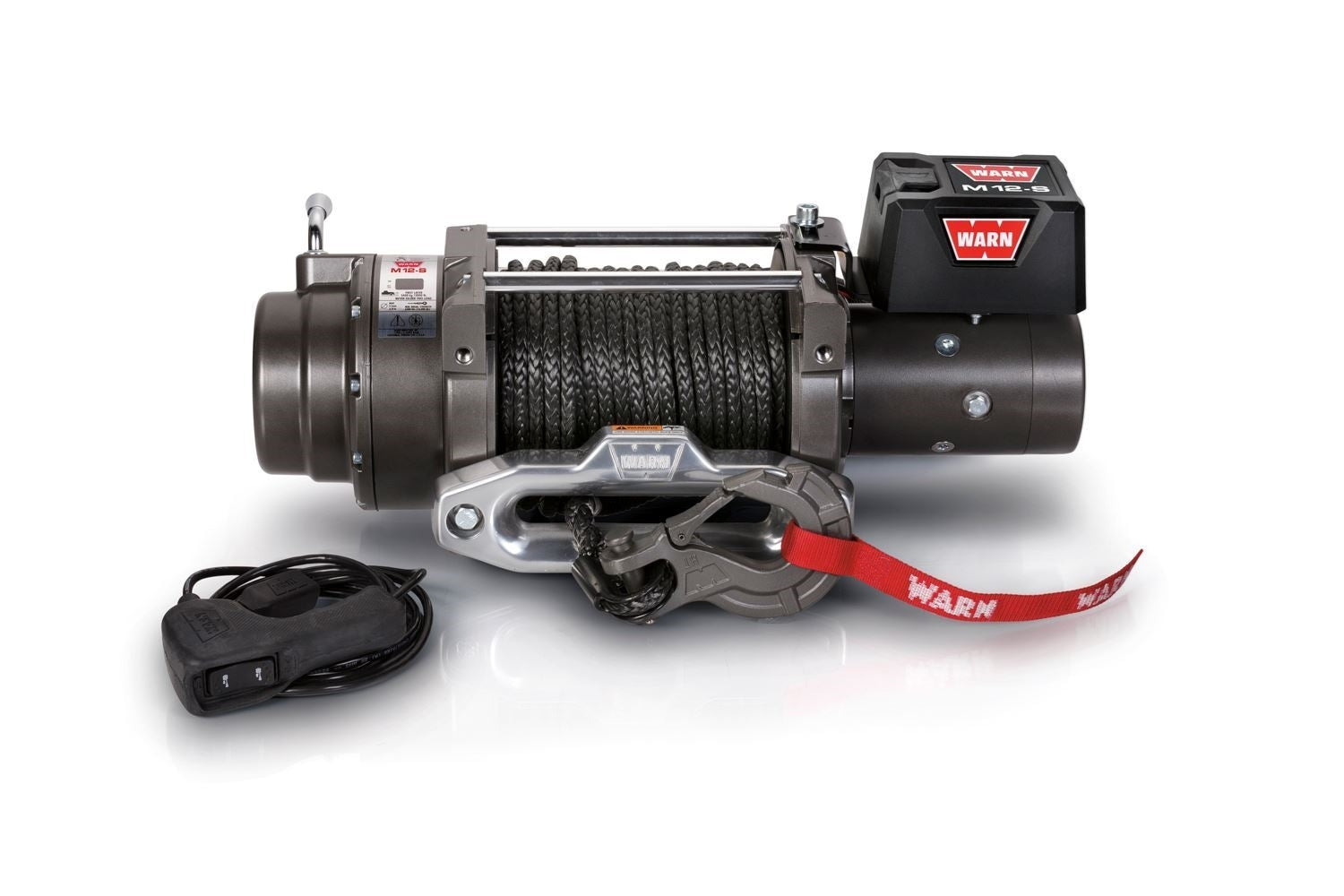

This Warn Industries M12-S 12 volt electric Winch is vehicle mounted and has a pull capacity of 12,000 pound. It has a 100 feet Spydura synthetic rope. Note: This Winch will require winch mount for proper installation.
The WARN combines a proven WARN large-frame winch with 100 Foot of 3/8 Inch state-of-the-art Spydura® synthetic rope. The rope's heat-treated construction provides maximum tensile strength, and the temperature-resistant sleeve on the first layer provides maximum heat protection. The winch's 12,000 Pounds pulling capacity makes it great for large pickups and heavier SUVs.
- 12,000 Pounds Capacity
- Large-Frame Winch Architecture Mounts Feet Forward
- Contactor Control For The Ultimate In Reliable Electronics
- Powerful, Efficient Series-Wound Motor
- Durable, Smooth Three-Stage Planetary Gear Train
- Best-In-Class Cone Brake
- Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.
Please Note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle. Please visit our Mounting & Protection category for available options.
CONTACT A WARN AUTHORIZED RETAILER FOR AVAILABILITY
Specifications
- Type: Electric
- Mount Type: Vehicle Mounted
- Recommended Use: Vehicle Recovery
- Voltage: 12 Volt
- Electrical Control Type: Contactors
- Motor Type: Series Wound
- Drive Gear Type: Planetary
- Gear Reduction Ratio: 261:1
- Free Spooling: Yes
- Brake Type: Automatic Mechanical Cone
- Line Diameter (In): 3/8 Inch
- Line Length (Ft): 100 Feet
- Line Material: Synthetic
- Fairlead Type: Hawse
- Conforms To J706 Standards: No
- Remote Type: Wired
- Mounting Hole Quantity: 4
- Operation Type: Automatic
- Mounting Pattern Length (In): 10 Inch
- Mounting Pattern Width (In): 4-1/2 Inch
- Includes Mounting Hardware: Yes
- Color: Gray

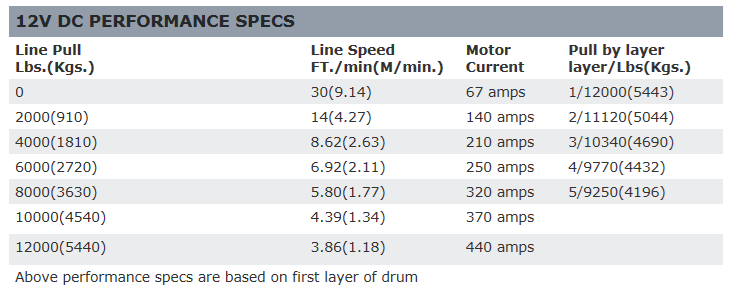

- Max Line Pull/ Line Speed: 12000 Pound/ 3.9 Feet Per Minute
- Max Amp Draw/ Line Pull: 440 Amp Draw/ 12000 Pound
