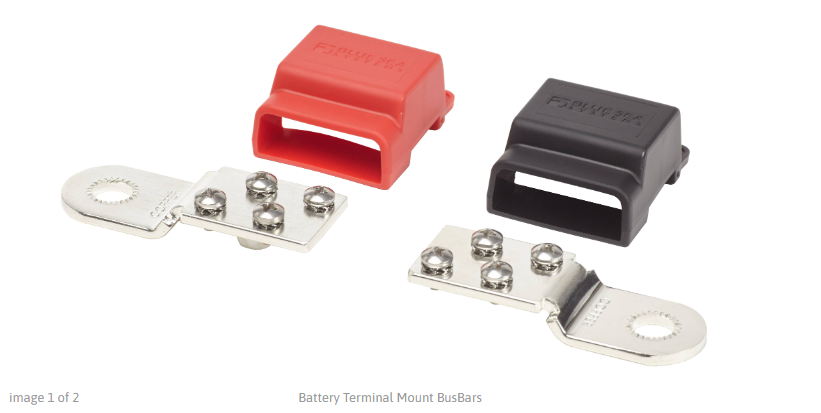

BLUE SEA SYSTEMS | Battery Terminal Mount BusBars (2430)
SELECT OPTIONS
Description
- Easily add positive and negative busbars directly to a threaded-post battery terminal
- Tin-plated pure electrical copper for maximum conductivity
- Insulating covers meet ABYC/USCG insulation requirements
- Screw terminals for securing wires
- Includes four 16-14 AWG and four 12-10 AWG Nylon insulated ring terminals
Specifications
| Maximum Voltage | 32V DC |
| Continuous Rating | 100A DC |
| Bus Material | Tin-Plated Copper C11000 |
| Mounting Hole | Clearance for Ø3/8 [M10] stud |
| Screw Terminal Type | #8-32 Screws with Captive Star Lock washer |
