VIAIR | 400C Compressor

$324.75

Voltage:

Variant

Quantity:

Description

Ideal for industrial environments, VIAIR’s 400C compressor is the fastest-filling in its class. Capable of powering air horns, air suspension, and industrial pneumatic operations, the 400C flows fast and has a compact footprint for a wide range of personal and commercial applications.

See Resources Section below for wiring Diagram Options

Specifications

SPECS:

CFM: 2.62 @ 0 PSI
12-Volt / 24-Volt
Permanent Magnetic Motor
Duty Cycle: 33% @ 100 PSI
Max. Working Pressure: 150 PSI
Max. Air Tank Size: 5.0 Gallon
Max. 12V Amp Draw: 30-Amps
Max. 24V Amp Draw: 15 Amps
Ingress Protection Rating: IP67
Max Ambient Temp: +158°F
Min Ambient Temp: -40°F

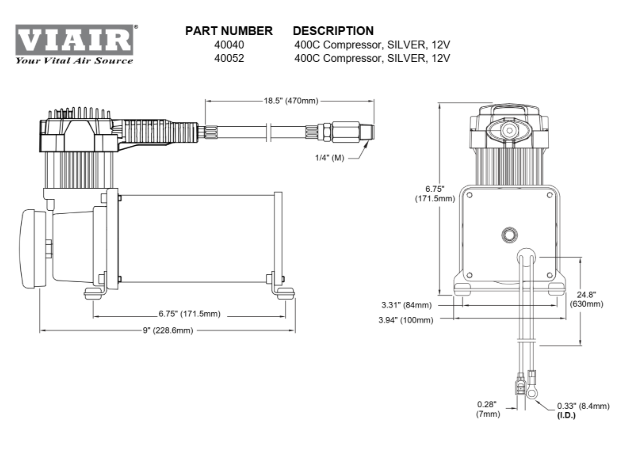

Dimensions: 9″L x 4″W x 6.75″H
Net Weight: 8.65 lbs.

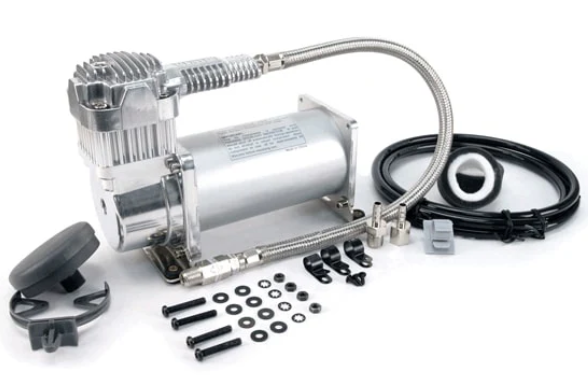

FEATURES:

Thermal Overload Protector
Check Valve
Vibration Isolators
Mounting Hardware
Stainless Steel Braided Leader Hose
Air Line for Remote Mount Air Filter
Remote Mount Air Filter Assembly
(2) Replacement Air Filter Elements
Installation Instructions

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

Performance

12-Volt Compressor - Supply Voltage 13.8 Volts

PSI	CFM	A	BAR	LPM	A
0	2.62	16	0	74.0	16
10	2.39	18	1.0	65.0	20
20	2.21	20	2.0	60.0	23
30	2.11	22	3.0	56.0	25
40	2.01	24	4.0	53.0	27
50	1.93	25	5.0	49.0	28
60	1.84	26	6.0	46.0	28
70	1.73	27	7.0	42.0	28
80	1.65	27	8.0	38.0	28
90	1.52	27	9.0	35.0	27
100	1.45	27	10.0	31.0	27
110	1.35	27
120	1.26	27
130	1.19	27
140	1.08	27
150	1.01	26

24-Volt Compressor - Supply Voltage 28 Volts

PSI	CFM	A	BAR	LPM	A
0	2.33	7	0	66.0	7
10	2.26	8	1.0	63.3	9
20	2.20	10	2.0	60.8	10
30	2.14	10	3.0	57.0	11
40	2.04	11	4.0	53.0	12
50	1.94	12	5.0	48.3	12
60	1.86	12	6.0	45.7	12
70	1.74	12	7.0	40.5	12
80	1.70	12	8.0	38.2	12
90	1.59	12	9.0	34.6	12
100	1.50	12	10.0	32.0	12
110	1.40	12	11.0	29.0	11
120	1.31	12	12.0	25.5	11
130	1.24	12	13.0	23.3	10
140	1.17	12
150	1.10	12

Fill Rates

12-Volt Compressor

2.5 GALLON TANK	FILL RATE
0 to 145 PSI	2 min. 27 sec. (± 05 sec.)
110 to 145 PSI	55 sec. (± 03 sec.)
5.0 GALLON TANK	FILL RATE
0 to 105 PSI	2 min. 55 sec. (± 10 sec.)
85 to 105 PSI	45 sec. (± 05 sec.)
0 to 145 PSI	4 min. 50 sec. (± 10 sec.)
110 to 145 PSI	1 min. 40 sec. (± 05 sec.)

24-Volt Compressor

2.5 GALLON TANK	FILL RATE
0 to 105 PSI	1 min. 24 sec. (± 05 sec.)
85 to 105 PSI	20 sec. (± 03 sec.)
0 to 145 PSI	2 min. 16 sec. (± 05 sec.)
110 to 145 PSI	47 sec. (± 05 sec.)
5.0 GALLON TANK	FILL RATE
0 to 105 PSI	2 min. 38 sec. (± 10 sec.)
85 to 105 PSI	38 sec. (± 03 sec.)
0 to 145 PSI	4 min. 08 sec. (± 10 sec.)
110 to 145 PSI	1 min. 20 sec. (± 05 sec.)

Product Resources

User Manual
